Suzuki DF 15A Parts Listings - 2016
S/N 01504F-610001 to 01504F-61XXXX

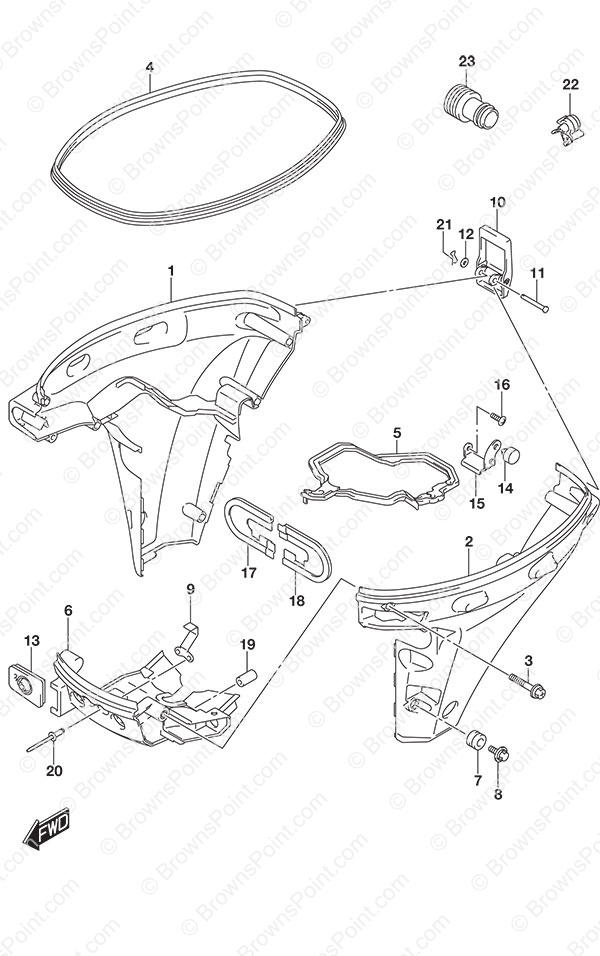

Fig. 410B - Side Cover Tiller Handle w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61810-89L10-RB4 Starboard Side Cover
SKU: 61810-89L10-RB4 Weight: 32.000000 Brand: Price: $ 116.63 |
Starboard Side Cover | 1 | $ 116.63 | ||
| 2 | 61820-89L10-RB4 Port Side Cover
SKU: 61820-89L10-RB4 Weight: 32.000000 Brand: Price: $ 108.00 |
Port Side Cover | 1 | $ 108.00 | ||
| 3 | 09136-06169 Screw (6x35)
SKU: 09136-06169 Weight: 0.060000 Brand: Price: $ 3.06 |
Screw (6x35) | 8 | $ 3.06 | ||
| 4 | 61112-89L10 Side Cover Rubber
SKU: 61112-89L10 Weight: 1.000000 Brand: Price: $ 49.92 |
Side Cover Rubber | 1 | $ 49.92 | ||
| 5 | 61134-89L00 Side Cover Seal
SKU: 61134-89L00 Weight: 1.000000 Brand: Price: $ 45.67 |
Side Cover Seal | 1 | $ 45.67 | ||
| 6 | 61831-89L00-QGF Front Panel
SKU: 61831-89L00-QGF Weight: 0.500000 Brand: Price: $ 134.31 |
Front Panel | 1 | $ 134.31 | ||
| 7 | 09320-11017 Cushion
SKU: 09320-11017 Weight: 0.125000 Brand: Price: $ 5.08 |
Cushion | 2 | $ 5.08 | ||
| 8 | 09136-06168 Screw (6x17)
SKU: 09136-06168 Weight: 0.060000 Brand: Price: $ 2.68 |
Screw (6x17) | 2 | $ 2.68 | ||
| 9 | 61412-89L00 Front Panel Hook
SKU: 61412-89L00 Weight: 0.250000 Brand: Price: $ 7.81 |
Front Panel Hook | 1 | $ 7.81 | ||
| 10 | 61610-90L00 Fastener
SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 41.97 |
Fastener | 1 | $ 41.97 | ||
| 11 | 61616-93EL0 Lever Pin
SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.82 |
Lever Pin | 1 | $ 7.82 | ||
| 12 | 09161-04012 Washer (4.2x11x1)
SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.56 |
Washer (4.2x11x1) | 1 | $ 1.56 | ||
| 13 | 61124-89L40 Cable Grommet
SKU: 61124-89L40 Weight: 0.250000 Brand: Price: $ 13.53 |
Cable Grommet | 1 | $ 13.53 | ||
| 14 | 61151-91J11 Cushion
SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.79 |
Cushion | 1 | $ 3.79 | ||
| 15 | 61827-89L00 Side Cover Holder
SKU: 61827-89L00 Weight: 0.187500 Brand: Price: $ 8.02 |
Side Cover Holder | 1 | $ 8.02 | ||
| 16 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 1 | $ 1.45 | ||
| 17 | 54144-89L11 Upper Mount Starboard Seal
SKU: 54144-89L11 Weight: 0.250000 Brand: Price: $ 10.99 |
Upper Mount Starboard Seal | 1 | $ 10.99 | ||
| 18 | 54145-89L00 Upper Mount Port Seal
SKU: 54145-89L00 Weight: 0.250000 Brand: Price: $ 11.89 |
Upper Mount Port Seal | 1 | $ 11.89 | ||
| 19 | 09251-09007 Cushion
SKU: 09251-09007 Weight: 0.250000 Brand: Price: $ 4.28 |
Cushion | 2 | $ 4.28 | ||
| 20 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.71 |
Rivet | 2 | $ 1.71 | ||
| 21 | 09385-04003 Snap Pin
SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.55 |
Snap Pin | 1 | $ 2.55 | ||
| 22 | 09403-07308 Clamp
SKU: 09403-07308 Weight: 0.060000 Brand: Price: $ 1.88 |
Clamp | 2 | $ 1.88 | ||
| 23 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.42 |
Water Flush Connector | 1 | $ 10.42 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
