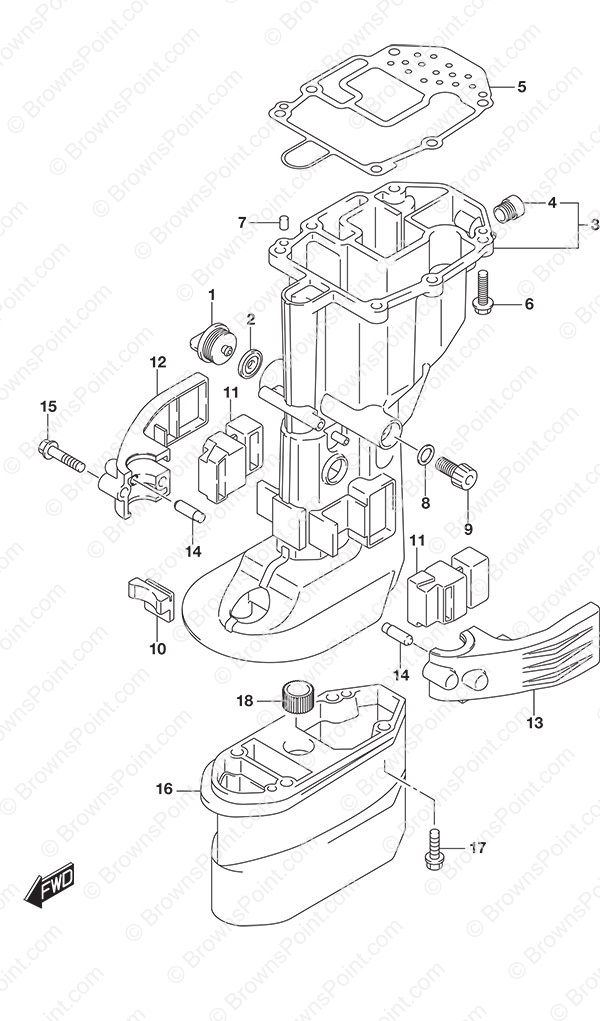

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 17913-93J00 Water Flush Plug SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
2 | 17914-93J01 Water Flush Plug Gasket SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
3-1 | 52110-89L00-0EP Drive Shaft Housing (S) SKU: 52110-89L00-0EP Weight: 10.000000 Brand: Price: $ 288.03 |
Drive Shaft Housing (S) | 1 | $ 288.03 | w/Transom (S) | |
3-2 | 52110-89L10-0EP Drive Shaft Housing (L) SKU: 52110-89L10-0EP Weight: 10.000000 Brand: Price: $ 373.39 |
Drive Shaft Housing (L) | 1 | $ 373.39 | w/Transom (L) w/Transom (X) | |
4 | 43112-94L01 Exhaust Pipe SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
5 | 52113-89L00 Drive Shaft Housing Gasket SKU: 52113-89L00 Weight: 0.250000 Brand: Price: $ 48.56 |
Drive Shaft Housing Gasket | 1 | $ 48.56 | ||
6 | 09116-08151 Bolt (8x30) SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 6 | $ 2.18 | ||
7 | 09202-06023 Knock Pin (6x10) SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
8 | 09168-12017 Gasket (12x17x1) SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 1 | $ 1.97 | ||
9 | 09248-12009 Oil Drain Plug SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
10 | 54151-99J00 Lower Thrust Mount SKU: 54151-99J00 Weight: 0.250000 Brand: Price: $ 31.89 |
Lower Thrust Mount | 1 | $ 31.89 | ||
11 | 54167-99J01 Lower Side Mount SKU: 54167-99J01 Weight: 0.250000 Brand: Price: $ 35.54 |
Lower Side Mount | 2 | $ 35.54 | ||
12 | 54211-99J01-0EP Lower Mount Starboard Cover SKU: 54211-99J01-0EP Weight: 0.500000 Brand: Price: $ 23.91 |
Lower Mount Starboard Cover | 1 | $ 23.91 | ||
13 | 54221-99J01-0EP Lower Mount Port Cover SKU: 54221-99J01-0EP Weight: 0.500000 Brand: Price: $ 23.91 |
Lower Mount Port Cover | 1 | $ 23.91 | ||
14 | 54213-93901 Knock Pin SKU: 54213-93901 Weight: 0.060000 Brand: Price: $ 8.19 |
Knock Pin | 2 | $ 8.19 | ||
15 | 09116-08154 Bolt (8x40) SKU: 09116-08154 Weight: 0.250000 Brand: Price: $ 4.65 |
Bolt (8x40) | 2 | $ 4.65 | ||
16 | 52131-89L00-0EP Extension Case SKU: 52131-89L00-0EP Weight: 5.000000 Brand: Price: $ 236.39 |
Extension Case | 1 | $ 236.39 | w/Transom (X) | |
17 | 09116-08151 Bolt (8x30) SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 4 | $ 2.18 | w/Transom (X) | |
18 | 09320-13022 Bushing SKU: 09320-13022 Weight: 0.100000 Brand: Price: $ 10.35 |
Bushing | 1 | $ 10.35 | w/Transom (X) |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
