Suzuki DF 15A Parts Listings - 2016
S/N 01504F-610001 to 01504F-61XXXX

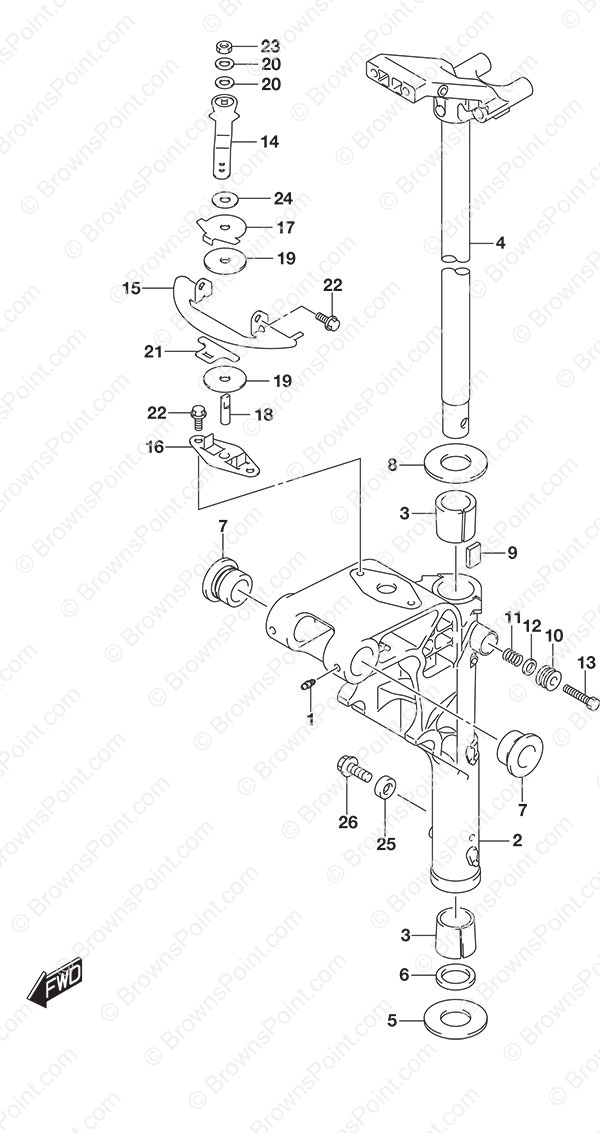

Fig. 336B - Swivel Bracket Tiller Handle w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | w/Transom (S) | |
| 1-2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | w/Transom (L) w/Transom (X) | |
| 2-1 | 43111-89LB0-0EP Swivel Bracket (S)
SKU: 43111-89LB0-0EP Weight: 7.000000 Brand: Price: $ 441.33 |
Swivel Bracket (S) | 1 | $ 441.33 | w/Transom (S) | |
| 2-2 | 43111-89LA0-0EP Swivel Bracket (L)
SKU: 43111-89LA0-0EP Weight: 7.000000 Brand: Price: $ 430.64 |
Swivel Bracket (L) | 1 | $ 430.64 | w/Transom (L) w/Transom (X) | |
| 3 | 43711-94JA0 Steering Bushing
SKU: 43711-94JA0 Weight: 0.125000 Brand: Price: $ 17.37 |
Steering Bushing | 2 | $ 17.37 | ||
| 4-1 | 43750-99J60-0EP Steering Bracket (S)
SKU: 43750-99J60-0EP Weight: 5.000000 Brand: Price: $ 118.60 |
Steering Bracket (S) | 1 | $ 118.60 | w/Transom (S) | |
| 4-2 | 43750-99J70-0EP Steering Bracket (L)
SKU: 43750-99J70-0EP Weight: 5.000000 Brand: Price: $ 132.94 |
Steering Bracket (L) | 1 | $ 132.94 | w/Transom (L) w/Transom (X) | |
| 5 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 | ||
| 6 | 09282-27002 Oil Seal (26x39x5)
SKU: 09282-27002 Weight: 0.250000 Brand: Price: $ 14.52 |
Oil Seal (26x39x5) | 1 | $ 14.52 | ||
| 7 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 8 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 | ||
| 9 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 10 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 11 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 12 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 13 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 14 | 43411-89LA0 Steering Adjuster Lever
SKU: 43411-89LA0 Weight: 0.250000 Brand: Price: $ 3.75 |
Steering Adjuster Lever | 1 | $ 3.75 | ||
| 15 | 43415-89L01 Steering Adjuster Plate
SKU: 43415-89L01 Weight: 0.125000 Brand: Price: $ 7.20 |
Steering Adjuster Plate | 1 | $ 7.20 | ||
| 16 | 43420-89L00 Steering Adjust Friction Plate
SKU: 43420-89L00 Weight: 0.250000 Brand: Price: $ 12.75 |
Steering Adjust Friction Plate | 1 | $ 12.75 | ||
| 17 | 43425-89L00 Steering Adjust Upper Plate
SKU: 43425-89L00 Weight: 0.250000 Brand: Price: $ 9.14 |
Steering Adjust Upper Plate | 1 | $ 9.14 | ||
| 18 | 43512-89L00 Steering Adjust Thread Shaft
SKU: 43512-89L00 Weight: 0.250000 Brand: Price: $ 5.87 |
Steering Adjust Thread Shaft | 1 | $ 5.87 | ||
| 19 | 43515-88L00 Steering Adjust Friction Washer Plate
SKU: 43515-88L00 Weight: 0.250000 Brand: Price: $ 14.42 |
Steering Adjust Friction Washer Plate | 2 | $ 14.42 | ||
| 20 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 21 | 43517-89L00 Steering Adjuster Spacer
SKU: 43517-89L00 Weight: 0.100000 Brand: Price: $ 15.20 |
Steering Adjuster Spacer | 1 | $ 15.20 | ||
| 22 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 4 | $ 2.60 | ||
| 23 | 09159-08L02 Nut
SKU: 09159-08L02 Weight: 0.060000 Brand: Price: $ 3.70 |
Nut | 1 | $ 3.70 | ||
| 24 | 09161-08019 Washer (8.2x18x1.2)
SKU: 09161-08019 Weight: 0.250000 Brand: Price: $ 1.72 |
Washer (8.2x18x1.2) | 1 | $ 1.72 | ||
| 25-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | w/Transom (L) w/Transom (X) | |
| 25-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only w/Transom (L) w/Transom (X) | |
| 26 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | w/Transom (L) w/Transom (X) |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
