Suzuki DF 15A Parts Listings - 2016
S/N 01504F-610001 to 01504F-61XXXX

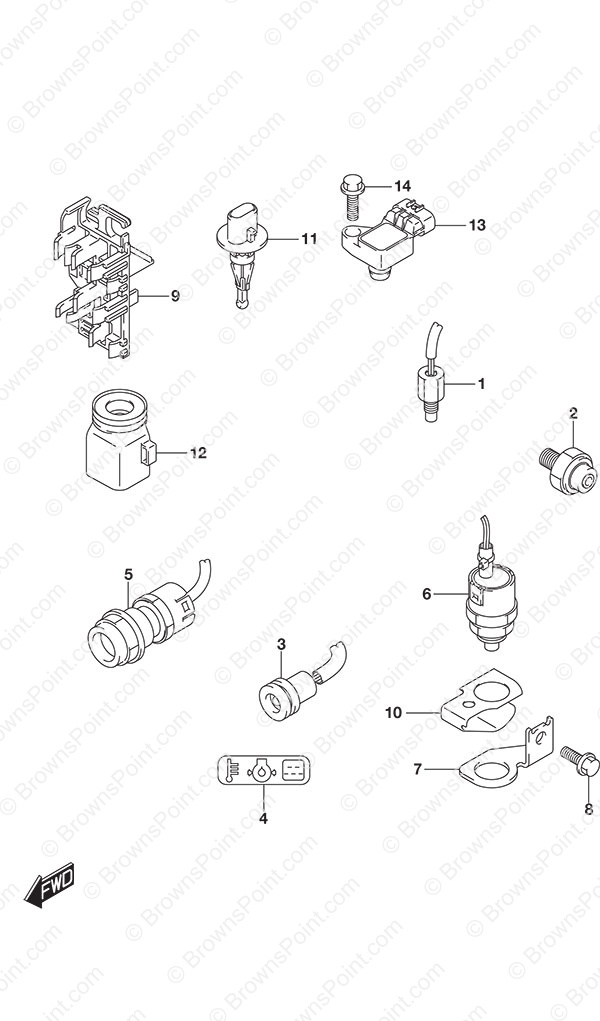

Fig. 334B - Sensor/Switch Tiller Handle w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13640-32G20 Engine Temp Sensor
SKU: 13640-32G20 Weight: 0.250000 Brand: Price: $ 57.70 |
Engine Temp Sensor | 1 | $ 57.70 | ||
| 2 | 37820-80002 Oil Pressure Switch Assembly
SKU: 37820-80002 Weight: 0.250000 Brand: Price: $ 21.02 |
Oil Pressure Switch Assembly | 1 | $ 21.02 | ||
| 3 | 36360-99J10 Oil Pressure Indicator
SKU: 36360-99J10 Weight: 0.250000 Brand: Price: $ 40.01 |
Oil Pressure Indicator | 1 | $ 40.01 | ||
| 4 | 36367-89L00 Warning Label
SKU: 36367-89L00 Weight: 0.060000 Brand: Price: $ 3.34 |
Warning Label | 1 | $ 3.34 | ||
| 5 | 37161-89L02 Starter Motor Switch Assembly
SKU: 37161-89L02 Weight: 0.250000 Brand: Price: $ 27.20 |
Starter Motor Switch Assembly | 1 | $ 27.20 | ||
| 6 | 37721-89L00 Neutral Switch Assembly
SKU: 37721-89L00 Weight: 0.250000 Brand: Price: $ 48.84 |
Neutral Switch Assembly | 1 | $ 48.84 | ||
| 7 | 37726-89L00 Neutral Switch Bracket (NLA)
SKU: 37726-89L00 Weight: 0.250000 Brand: Price: $ 5.01 |
Neutral Switch Bracket (NLA) | 1 | $ 5.01 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 36616-89L03 Connector Holder
SKU: 36616-89L03 Weight: 0.250000 Brand: Price: $ 6.48 |
Connector Holder | 1 | $ 6.48 | ||
| 10 | 37725-89L01 Neutral Switch Actuator
SKU: 37725-89L01 Weight: 0.250000 Brand: Price: $ 6.21 |
Neutral Switch Actuator | 1 | $ 6.21 | ||
| 11 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 12 | 13655-89L01 Inlet Air Temp Sensor Grommet
SKU: 13655-89L01 Weight: 0.125000 Brand: Price: $ 5.94 |
Inlet Air Temp Sensor Grommet | 1 | $ 5.94 | ||
| 13 | 18590-58M00 MAP Sensor
SKU: 18590-58M00 Weight: 0.250000 Brand: Price: $ 228.67 |
MAP Sensor | 1 | $ 228.67 | ||
| 14 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
