Suzuki DF 15A Parts Listings - 2016
S/N 01504F-610001 to 01504F-61XXXX

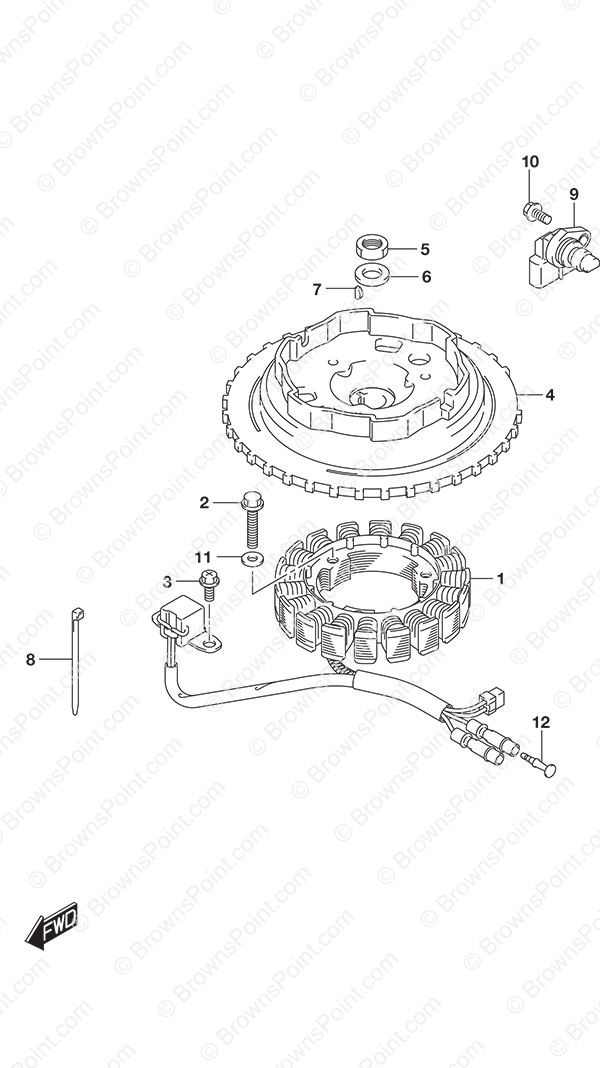

Fig. 303A - Magneto Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32120-89L10 Stator & Pulser Coil
SKU: 32120-89L10 Weight: 2.000000 Brand: Price: $ 360.07 |
Stator & Pulser Coil | 1 | $ 360.07 | ||
| 2 | 01547-0630A BOLT
SKU: 01547-0630A Weight: 0.250000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 3 | 01550-05127 Bolt
SKU: 01550-05127 Weight: 0.060000 Brand: Price: $ 1.49 |
Bolt | 2 | $ 1.49 | ||
| 4 | 32102-89L10 Flywheel (NLA)
SKU: 32102-89L10 Weight: 5.000000 Brand: Price: $ 282.03 |
Flywheel (NLA) | 1 | $ 282.03 | ||
| 5 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 6 | 09160-15057 Washer (15x27x4)
SKU: 09160-15057 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (15x27x4) | 1 | $ 2.26 | ||
| 7 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 8 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 7 | $ 3.09 | ||
| 9 | 33220-84M10 CMP Sensor Assembly
SKU: 33220-84M10 Weight: 0.180000 Brand: Price: $ 96.98 |
CMP Sensor Assembly | 1 | $ 96.98 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 08322-0106A Washer
SKU: 08322-0106A Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 3 | $ 1.85 | ||
| 12 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
