Suzuki DF 9.9B Parts Listings - 2016
S/N 00995F-610001 to 00995F-61XXXX

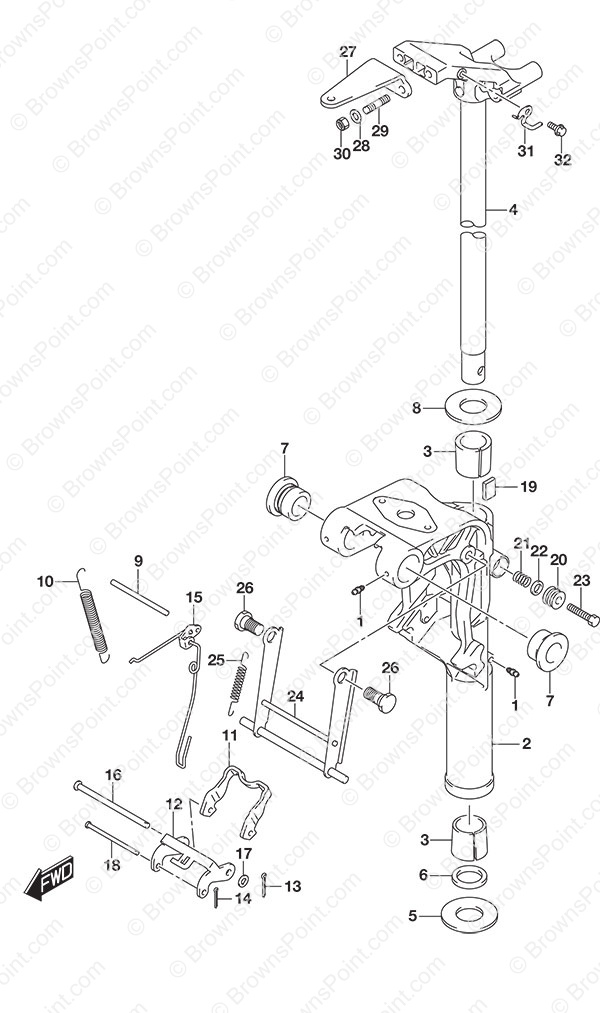

Fig. 336B - Swivel Bracket Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 2-1 | 43111-89L00-0EP Swivel Bracket (S)
SKU: 43111-89L00-0EP Weight: 7.000000 Brand: Price: $ 149.04 |
Swivel Bracket (S) | 1 | $ 149.04 | w/Transom (S) | |
| 2-2 | 43111-89L11-0EP Swivel Bracket (L)
SKU: 43111-89L11-0EP Weight: 7.000000 Brand: Price: $ 95.54 |
Swivel Bracket (L) | 1 | $ 95.54 | w/Transom (L or X) | |
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 4-1 | 43750-99J60-0EP Steering Bracket (S)
SKU: 43750-99J60-0EP Weight: 5.000000 Brand: Price: $ 118.60 |
Steering Bracket (S) | 1 | $ 118.60 | w/Transom (S) | |
| 4-2 | 43750-99J70-0EP Steering Bracket (L)
SKU: 43750-99J70-0EP Weight: 5.000000 Brand: Price: $ 132.94 |
Steering Bracket (L) | 1 | $ 132.94 | w/Transom (L or X) | |
| 5 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 | ||
| 6 | 09282-27002 Oil Seal (26x39x5)
SKU: 09282-27002 Weight: 0.250000 Brand: Price: $ 14.52 |
Oil Seal (26x39x5) | 1 | $ 14.52 | ||
| 7 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 8 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 | ||
| 9 | 41225-89L00 Release Arm Pin
SKU: 41225-89L00 Weight: 0.250000 Brand: Price: $ 6.76 |
Release Arm Pin | 1 | $ 6.76 | ||
| 10 | 45212-89L00 Reverse Lock Arm Spring
SKU: 45212-89L00 Weight: 0.060000 Brand: Price: $ 12.03 |
Reverse Lock Arm Spring | 2 | $ 12.03 | ||
| 11 | 45231-89L00 Reverse Lock Arm
SKU: 45231-89L00 Weight: 0.250000 Brand: Price: $ 25.64 |
Reverse Lock Arm | 1 | $ 25.64 | ||
| 12 | 45241-89L00 Reverse Lock Arm Link
SKU: 45241-89L00 Weight: 0.250000 Brand: Price: $ 49.81 |
Reverse Lock Arm Link | 1 | $ 49.81 | ||
| 13 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 14 | 45247-99J00 Reverse Lock Arm Cotter Pin
SKU: 45247-99J00 Weight: 0.250000 Brand: Price: $ 2.53 |
Reverse Lock Arm Cotter Pin | 1 | $ 2.53 | ||
| 15 | 45250-89L03 Release Link
SKU: 45250-89L03 Weight: 0.250000 Brand: Price: $ 6.12 |
Release Link | 1 | $ 6.12 | ||
| 16 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 17 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 18 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 19 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 20 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 21 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 22 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 23 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 24-1 | 45710-89L10 Shallow Drive Arm
SKU: 45710-89L10 Weight: 0.500000 Brand: Price: $ 45.55 |
Shallow Drive Arm | 1 | $ 45.55 | w/Transom (S) w/Transom (L) | |
| 24-2 | 45710-89L10 Shallow Drive Arm
SKU: 45710-89L10 Weight: 0.500000 Brand: Price: $ 45.55 |
Shallow Drive Arm | 1 | $ 45.55 | w/Transom (X) | |
| 25 | 45722-94J11 Shallow Water Drive Spring
SKU: 45722-94J11 Weight: 0.060000 Brand: Price: $ 20.04 |
Shallow Water Drive Spring | 1 | $ 20.04 | ||
| 26 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 27 | 43755-99J01 ATTACHMENT,STEE
SKU: 43755-99J01 Weight: 0.000000 Brand: Price: $ 105.14 |
ATTACHMENT,STEE | 1 | $ 105.14 | ||
| 28 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 29 | 09108-08286 Stud Bolt
SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 14.70 |
Stud Bolt | 2 | $ 14.70 | ||
| 30 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
| 31 | 43759-89L00 Drain Hose Holder
SKU: 43759-89L00 Weight: 0.250000 Brand: Price: $ 0.00 |
Drain Hose Holder | 1 | $ 0.00 | ||
| 32 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 1 | $ 2.60 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
