Suzuki DF 9.9B Parts Listings - 2016
S/N 00995F-610001 to 00995F-61XXXX

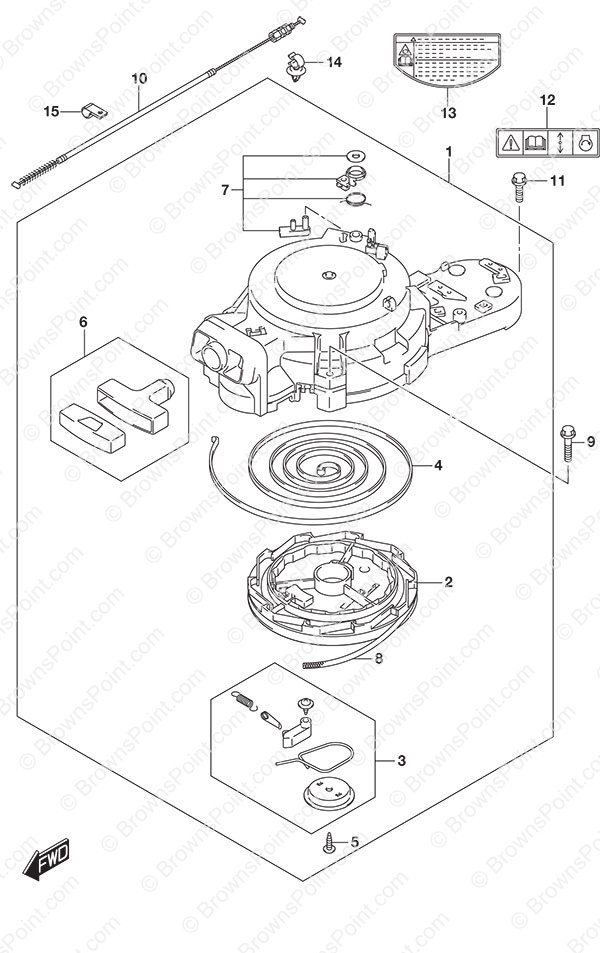

Fig. 167 - Recoil Starter

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 18100-94JN1 STARTER ASSY,RE 1 $ 105.12
2 18121-94JL0 Reel 1 $ 66.16
3 18130-93E01 Ratchet Set 1 $ 17.20
4 18142-93E00 Spiral Spring 1 $ 27.50
5 18132-89L00 Tapping Screw 1 $ 2.26
6 18210-95L00 Grip Assembly 1 $ 12.47
7 18280-93E00 NSI Set 1 $ 9.89
8 99000-81158-50M Starter Rope 1 $ 267.96
Opt: L:50000->1200
9 01550-06307 BOLT 3 $ 2.74
10 18290-94J01 NSI Cable Assembly 1 $ 36.12
11 01550-06207 BOLT 1 $ 2.33
12 69711-93E11 Label (S.I.G.P) 1 $ 4.45
13 61472-97J00 Recoil Starter Label 1 $ 2.68
14 09403-12415 Clamp (NLA) 1 $ 1.82
15 09403-12417 CLAMP 1 $ 4.39

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
