Suzuki DF 9.9B Parts Listings - 2016
S/N 00995F-610001 to 00995F-61XXXX

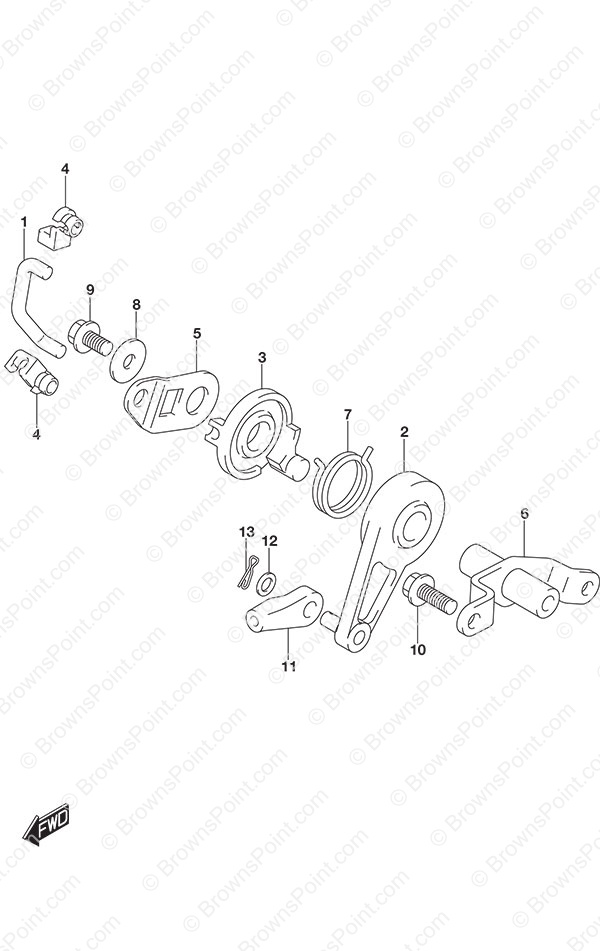

Fig. 166 - Throttle Control Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13513-89L10 Throttle Rod
SKU: 13513-89L10 Weight: 0.250000 Brand: Price: $ 6.51 |
Throttle Rod | 1 | $ 6.51 | ||
| 2 | 19120-99J11 Throttle Control Lever
SKU: 19120-99J11 Weight: 0.250000 Brand: Price: $ 6.84 |
Throttle Control Lever | 1 | $ 6.84 | ||
| 3 | 19122-99J00 Interlink Throttle Lever No 2
SKU: 19122-99J00 Weight: 0.250000 Brand: Price: $ 11.11 |
Interlink Throttle Lever No 2 | 1 | $ 11.11 | ||
| 4 | 19131-89L00 Connector
SKU: 19131-89L00 Weight: 0.100000 Brand: Price: $ 5.01 |
Connector | 2 | $ 5.01 | ||
| 5 | 19148-89L10 Interlink Throttle Lever No. 1
SKU: 19148-89L10 Weight: 0.250000 Brand: Price: $ 14.14 |
Interlink Throttle Lever No. 1 | 1 | $ 14.14 | ||
| 6 | 19150-89L00 Throttle Lever Bracket
SKU: 19150-89L00 Weight: 0.250000 Brand: Price: $ 34.64 |
Throttle Lever Bracket | 1 | $ 34.64 | ||
| 7 | 19185-99J00 Throttle Lever Spring
SKU: 19185-99J00 Weight: 0.250000 Brand: Price: $ 6.49 |
Throttle Lever Spring | 1 | $ 6.49 | ||
| 8 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 11 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 1 | $ 7.75 | ||
| 12 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 1 | $ 1.70 | ||
| 13 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 1 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
