Suzuki DF 9.9B Parts Listings - 2016
S/N 00995F-610001 to 00995F-61XXXX

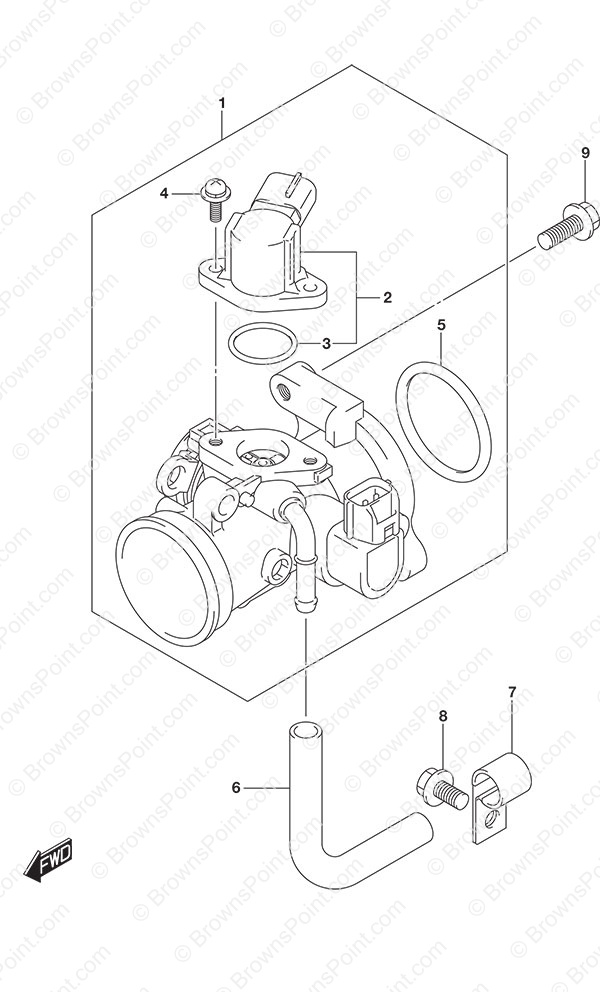

Fig. 163A - Throttle Body Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-89L01 Throttle Body Assembly
SKU: 13300-89L01 Weight: 1.000000 Brand: Price: $ 465.17 |
Throttle Body Assembly | 1 | $ 465.17 | ||
| 2 | 13420-16HA1 Solenoid Assembly
SKU: 13420-16HA1 Weight: 0.250000 Brand: Price: $ 112.74 |
Solenoid Assembly | 1 | $ 112.74 | ||
| 3 | 13425-33G00 O-Ring
SKU: 13425-33G00 Weight: 0.250000 Brand: Price: $ 0.00 |
O-Ring | 1 | $ 0.00 | ||
| 4 | 13326-89L00 Screw
SKU: 13326-89L00 Weight: 0.250000 Brand: Price: $ 3.83 |
Screw | 2 | $ 3.83 | ||
| 5 | 13421-89L00 Flange O-Ring
SKU: 13421-89L00 Weight: 0.250000 Brand: Price: $ 25.74 |
Flange O-Ring | 1 | $ 25.74 | ||
| 6 | 15211-91J00-130 IAC Hose (NLA)
SKU: 15211-91J00-130 Weight: 0.250000 Brand: Price: $ 1.93 |
IAC Hose (NLA) | 1 | $ 1.93 | ||
| 7 | 09403-12417 CLAMP
SKU: 09403-12417 Weight: 0.000000 Brand: Price: $ 4.39 |
CLAMP | 1 | $ 4.39 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
