Suzuki DF 9.9B Parts Listings - 2016
S/N 00995F-610001 to 00995F-61XXXX

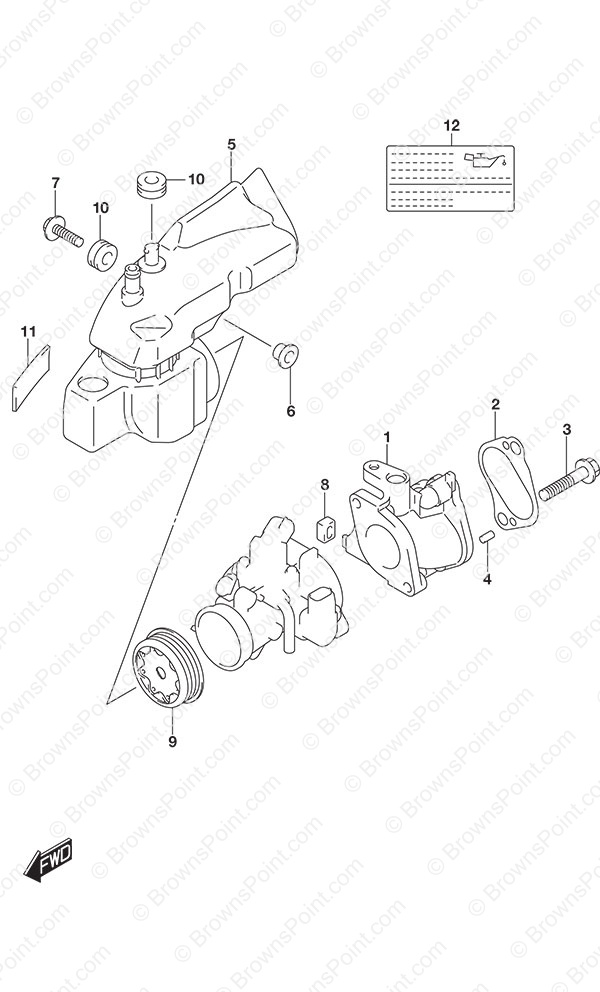

Fig. 126 - Inlet Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13111-89L00 Inlet Manifold
SKU: 13111-89L00 Weight: 0.500000 Brand: Price: $ 110.24 |
Inlet Manifold | 1 | $ 110.24 | ||
| 2 | 13119-89L00 Inlet Manifold Gasket
SKU: 13119-89L00 Weight: 0.250000 Brand: Price: $ 3.90 |
Inlet Manifold Gasket | 1 | $ 3.90 | ||
| 3 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 2 | $ 3.48 | ||
| 4 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 5 | 13811-89L00 Silencer
SKU: 13811-89L00 Weight: 1.000000 Brand: Price: $ 30.93 |
Silencer | 1 | $ 30.93 | ||
| 6 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 1 | $ 2.52 | ||
| 7 | 09116-06517 Bolt (6x25)
SKU: 09116-06517 Weight: 0.060000 Brand: Price: $ 2.75 |
Bolt (6x25) | 1 | $ 2.75 | ||
| 8 | 13116-94J00 Inlet Manifold Cap (NLA)
SKU: 13116-94J00 Weight: 0.100000 Brand: Price: $ 2.49 |
Inlet Manifold Cap (NLA) | 1 | $ 2.49 | ||
| 9 | 13820-89L10 Restrictor Holder
SKU: 13820-89L10 Weight: 0.250000 Brand: Price: $ 9.28 |
Restrictor Holder | 1 | $ 9.28 | ||
| 10 | 09320-09052 Cushion
SKU: 09320-09052 Weight: 0.250000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 11 | 13831-89L00 Air Inlet Pipe Cushion (NLA)
SKU: 13831-89L00 Weight: 0.250000 Brand: Price: $ 3.11 |
Air Inlet Pipe Cushion (NLA) | 1 | $ 3.11 | ||
| 12 | 61494-89L10 Oil & Clearance Label
SKU: 61494-89L10 Weight: 0.060000 Brand: Price: $ 1.51 |
Oil & Clearance Label | 1 | $ 1.51 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
