Suzuki DF 250 Parts Listings - 2019
S/N 25003F-910001 to 25003F-91XXXX
S/N 25003Z-910001 to 25003Z-91XXXX

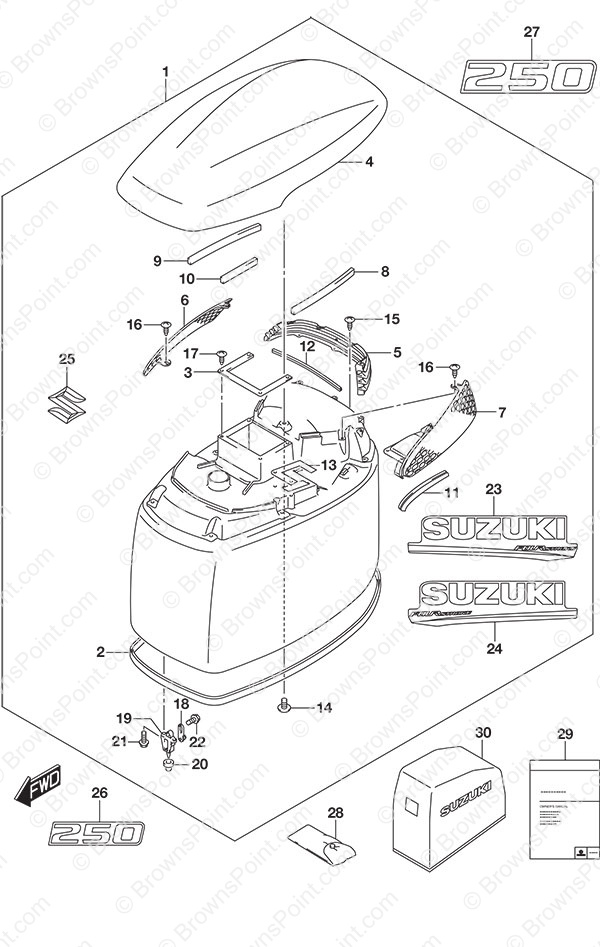

Fig. 420A - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61420-93891-YAY Engine Cover Set
SKU: 61420-93891-YAY Weight: 50.000000 Brand: Price: $ 1,808.44 |
Engine Cover Set | 1 | $ 1,808.44 | Black | |
| 1-2 | 61430-93801-Y5S Engine Cover Set
SKU: 61430-93801-Y5S Weight: 50.000000 Brand: Price: $ 1,862.70 |
Engine Cover Set | 1 | $ 1,862.70 | White | |
| 2 | 61112-93J20 Engine Cover Rubber
SKU: 61112-93J20 Weight: 1.500000 Brand: Price: $ 136.66 |
Engine Cover Rubber | 1 | $ 136.66 | ||
| 3 | 61416-93J00 Air Intake Guard
SKU: 61416-93J00 Weight: 0.100000 Brand: Price: $ 11.38 |
Air Intake Guard | 1 | $ 11.38 | ||
| 4-1 | 61431-93J03-YAY Tilt Up Handle
SKU: 61431-93J03-YAY Weight: 2.000000 Brand: Price: $ 347.16 |
Tilt Up Handle | 1 | $ 347.16 | Black | |
| 4-2 | 61431-93J03-Y5S Tilt Up Handle
SKU: 61431-93J03-Y5S Weight: 2.000000 Brand: Price: $ 412.59 |
Tilt Up Handle | 1 | $ 412.59 | White | |
| 5 | 61432-93J01 Tilt Up Handle Louver
SKU: 61432-93J01 Weight: 2.000000 Brand: Price: $ 37.28 |
Tilt Up Handle Louver | 1 | $ 37.28 | ||
| 6 | 61433-93J01 Air Intake Inner Starboard Cover
SKU: 61433-93J01 Weight: 1.000000 Brand: Price: $ 28.76 |
Air Intake Inner Starboard Cover | 1 | $ 28.76 | ||
| 7 | 61434-93J01 Air Intake Inner Port Cover
SKU: 61434-93J01 Weight: 0.200000 Brand: Price: $ 28.76 |
Air Intake Inner Port Cover | 1 | $ 28.76 | ||
| 8 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250 | |
| 9 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250->190 | |
| 10 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250->106 | |
| 11 | 61439-93J20 Tilt Up Handle Port Seal
SKU: 61439-93J20 Weight: 0.100000 Brand: Price: $ 11.62 |
Tilt Up Handle Port Seal | 1 | $ 11.62 | ||
| 12 | 61439-93J41 Tilt Up Handle Rear Seal
SKU: 61439-93J41 Weight: 0.100000 Brand: Price: $ 7.94 |
Tilt Up Handle Rear Seal | 1 | $ 7.94 | ||
| 13 | 61476-93J00 Air Vent Seal
SKU: 61476-93J00 Weight: 0.100000 Brand: Price: $ 9.33 |
Air Vent Seal | 1 | $ 9.33 | ||
| 14 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 15 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 16 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 17 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 18 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 21 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 23-1 | 61443-96J50 Starboard Engine Cover Stripe
SKU: 61443-96J50 Weight: 0.250000 Brand: Price: $ 21.98 |
Starboard Engine Cover Stripe | 1 | $ 21.98 | For Black | |
| 23-2 | 61443-96J60 Starboard Engine Cover Stripe
SKU: 61443-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Starboard Engine Cover Stripe | 1 | $ 32.15 | For White | |
| 24-1 | 61453-96J50 Port Engine Cover Stripe
SKU: 61453-96J50 Weight: 0.250000 Brand: Price: $ 21.98 |
Port Engine Cover Stripe | 1 | $ 21.98 | For Black | |
| 24-2 | 61453-96J60 Port Engine Cover Stripe
SKU: 61453-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Port Engine Cover Stripe | 1 | $ 32.15 | For White | |
| 25 | 68111-93J00 Emblem Mark 'S'
SKU: 68111-93J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Emblem Mark 'S' | 1 | $ 16.42 | ||
| 26-1 | 61422-93JD0 Front Emblem Mark (250)
SKU: 61422-93JD0 Weight: 0.200000 Brand: Price: $ 10.90 |
Front Emblem Mark (250) | 1 | $ 10.90 | For Black | |
| 26-2 | 61422-93JE0 Front Emblem Mark (250)
SKU: 61422-93JE0 Weight: 0.200000 Brand: Price: $ 10.49 |
Front Emblem Mark (250) | 1 | $ 10.49 | For White | |
| 27-1 | 61435-93JC0 Rear Emblem Mark (250)
SKU: 61435-93JC0 Weight: 0.200000 Brand: Price: $ 11.59 |
Rear Emblem Mark (250) | 1 | $ 11.59 | For Black | |
| 27-2 | 61435-93JD0 Rear Emblem Mark (250)
SKU: 61435-93JD0 Weight: 0.200000 Brand: Price: $ 11.59 |
Rear Emblem Mark (250) | 1 | $ 11.59 | For White | |
| 28 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | ||
| 29 | 99011-93JG0-03B Owners Manual DF225/250 - 2019
SKU: 99011-93JG0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF225/250 - 2019 | 1 | $ 20.00 | ||
| 30 | 990C0-65032 DF200 / DF225 / DF250 Genuine Engine Cover
SKU: 990C0-65032 Weight: 1.500000 Brand: Price: $ 138.01 |
DF200 / DF225 / DF250 Genuine Engine Cover | 1 | $ 138.01 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
