Suzuki DF 115A Parts Listings - 2019
S/N 11503F-910001 to 11503F-91XXXX
S/N 11503Z-910001 to 11503Z-91XXXX

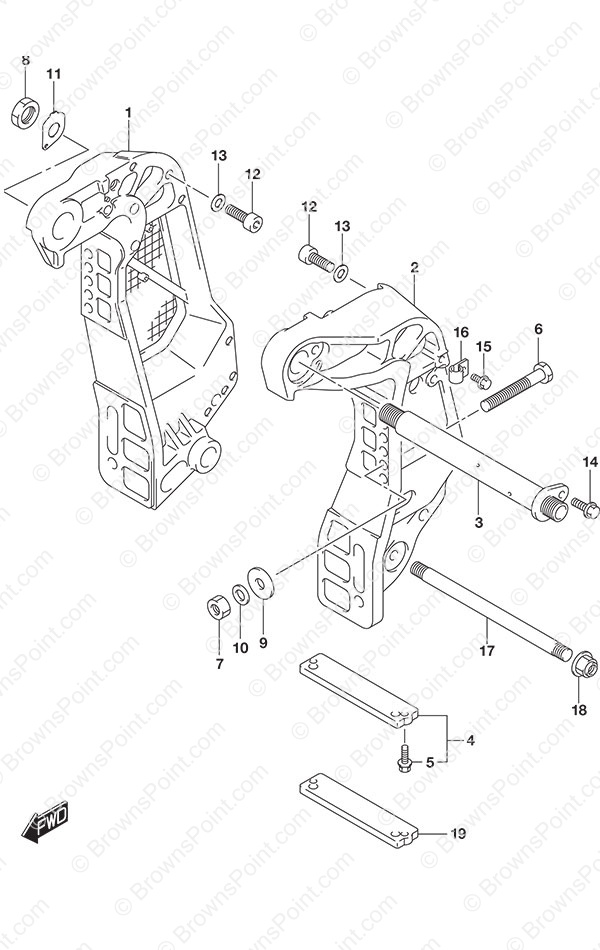

Fig. 335A - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-90J13-YAY Starboard Clamp Bracket
SKU: 41111-90J13-YAY Weight: 10.000000 Brand: Price: $ 378.07 |
Starboard Clamp Bracket | 1 | $ 378.07 | Black | |
| 1-2 | 41111-90J13-Y5S Starboard Clamp Bracket
SKU: 41111-90J13-Y5S Weight: 10.000000 Brand: Price: $ 0.00 |
Starboard Clamp Bracket | 1 | $ 0.00 | White | |
| 2-1 | 41121-90J20-YAY Port Clamp Bracket
SKU: 41121-90J20-YAY Weight: 10.000000 Brand: Price: $ 0.00 |
Port Clamp Bracket | 1 | $ 0.00 | Black | |
| 2-2 | 41121-90J20-Y5S Port Clamp Bracket
SKU: 41121-90J20-Y5S Weight: 10.000000 Brand: Price: $ 424.48 |
Port Clamp Bracket | 1 | $ 424.48 | White | |
| 3 | 41130-92J30 Clamp Bracket Shaft
SKU: 41130-92J30 Weight: 5.000000 Brand: Price: $ 197.03 |
Clamp Bracket Shaft | 1 | $ 197.03 | ||
| 4 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 5 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 6-1 | 09100-12091 Transom Bolt (12x115)
SKU: 09100-12091 Weight: 0.250000 Brand: Price: $ 14.20 |
Transom Bolt (12x115) | 4 | $ 14.20 | ||
| 6-2 | 09100-12090 Transom Bolt (12x150)
SKU: 09100-12090 Weight: 0.250000 Brand: Price: $ 34.60 |
Transom Bolt (12x150) | 1 | $ 34.60 | Optional | |
| 7 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 09160-12128 Washer (12.5x35x3)
SKU: 09160-12128 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer (12.5x35x3) | 4 | $ 3.98 | ||
| 10 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | ||
| 11 | 41135-92J00 Clamp Bracket Shaft Washer
SKU: 41135-92J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Clamp Bracket Shaft Washer | 1 | $ 7.01 | ||
| 12 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 13 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 14 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 15 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 16 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 17 | 45421-90J00 Tilt Lock Pin
SKU: 45421-90J00 Weight: 0.500000 Brand: Price: $ 45.69 |
Tilt Lock Pin | 1 | $ 45.69 | Optional | |
| 18 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | Optional | |
| 19 | 55321-94910 Magnesium Anode
SKU: 55321-94910 Weight: 0.300000 Brand: Price: $ 45.82 |
Magnesium Anode | 1 | $ 45.82 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
