Suzuki DF 115A Parts Listings - 2019
S/N 11503F-910001 to 11503F-91XXXX
S/N 11503Z-910001 to 11503Z-91XXXX
S/N 11504F-910001 to 11504F-91XXXX

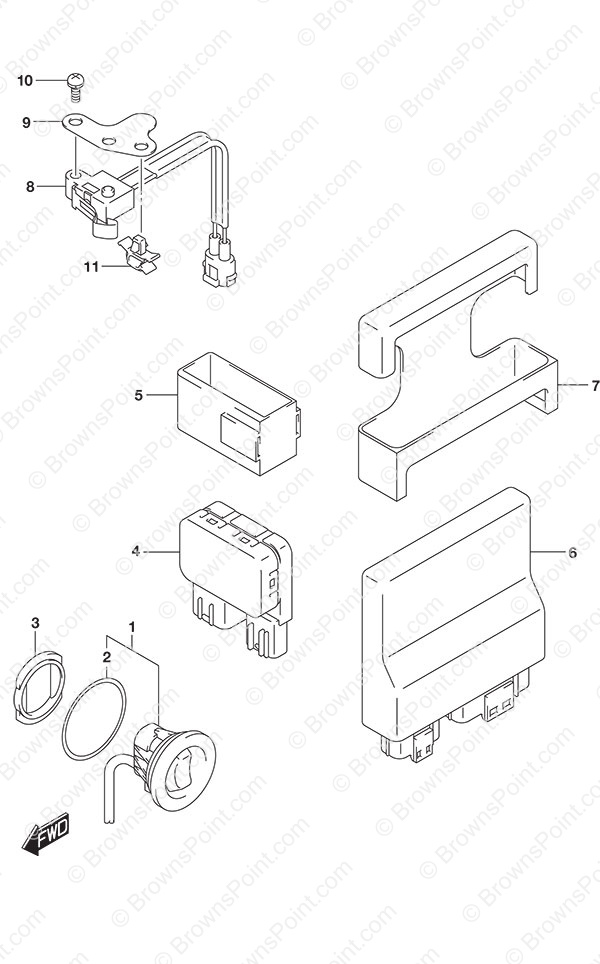

Fig. 326 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37850-92J00 PTT Switch Assembly
SKU: 37850-92J00 Weight: 0.250000 Brand: Price: $ 101.06 |
PTT Switch Assembly | 1 | $ 101.06 | ||
| 2 | 37856-92J00 PTT Switch Tape
SKU: 37856-92J00 Weight: 0.125000 Brand: Price: $ 3.89 |
PTT Switch Tape | 1 | $ 3.89 | ||
| 3 | 37857-92J01 PTT Switch Bushing
SKU: 37857-92J01 Weight: 0.200000 Brand: Price: $ 2.90 |
PTT Switch Bushing | 1 | $ 2.90 | ||
| 4 | 38410-93J21 PTT Relay Assembly
SKU: 38410-93J21 Weight: 0.500000 Brand: Price: $ 117.55 |
PTT Relay Assembly | 1 | $ 117.55 | ||
| 5 | 38415-93J20 PTT Relay Holder
SKU: 38415-93J20 Weight: 0.100000 Brand: Price: $ 9.12 |
PTT Relay Holder | 1 | $ 9.12 | ||
| 6 | 33920-92JQ1 Engine Control Unit
SKU: 33920-92JQ1 Weight: 2.000000 Brand: Price: $ 1,564.80 |
Engine Control Unit | 1 | $ 1,564.80 | ||
| 7 | 33925-92J00 ECU Cushion
SKU: 33925-92J00 Weight: 0.100000 Brand: Price: $ 9.41 |
ECU Cushion | 1 | $ 9.41 | ||
| 8 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 9 | 37726-90J10 Switch Bracket
SKU: 37726-90J10 Weight: 0.060000 Brand: Price: $ 3.31 |
Switch Bracket | 1 | $ 3.31 | ||
| 10 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
