Suzuki DF 115A Parts Listings - 2019
S/N 11503F-910001 to 11503F-91XXXX
S/N 11503Z-910001 to 11503Z-91XXXX
S/N 11504F-910001 to 11504F-91XXXX

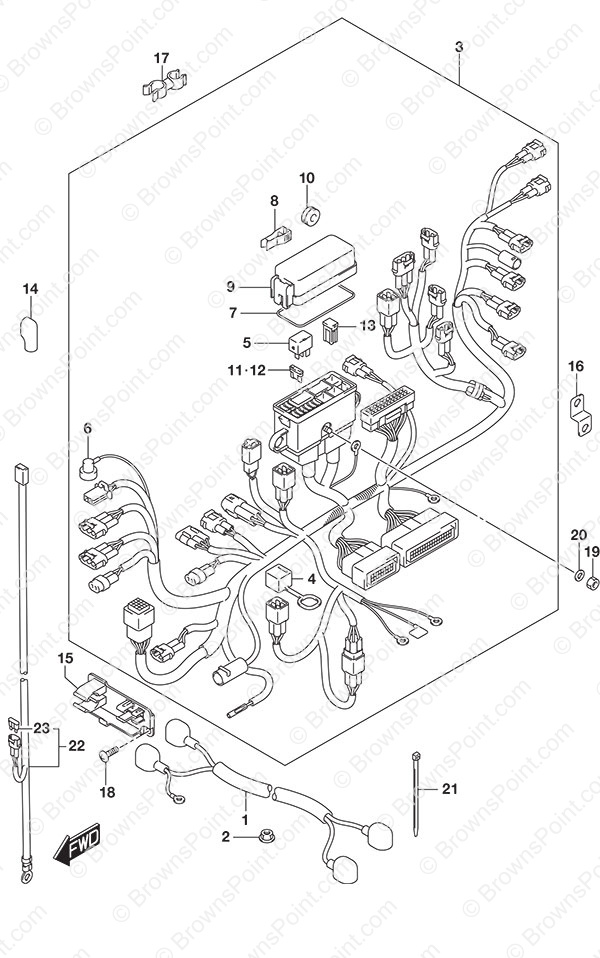

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 173.78 |
CABLE ASSY,STAR | 1 | $ 173.78 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 36610-92J63 HARNESS ASSY,WI
SKU: 36610-92J63 Weight: 0.000000 Brand: Price: $ 587.43 |
HARNESS ASSY,WI | 1 | $ 587.43 | ||
| 4 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 5 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 2 | $ 36.31 | ||
| 6 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 7 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 8 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.22 |
Fuse Puller | 1 | $ 4.22 | ||
| 9 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 16.86 |
Fuse Case Upper Cover | 1 | $ 16.86 | ||
| 10 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 2 | $ 1.71 | ||
| 11 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.08 |
15 Amp Fuse | 3 | $ 2.08 | ||
| 12 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.00 |
30 Amp Fuse | 3 | $ 2.00 | ||
| 13 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.25 |
60 Amp Fuse | 3 | $ 5.25 | ||
| 14 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 4.94 |
CAP,TERMINAL | 1 | $ 4.94 | ||
| 15 | 36611-92J01 HARNESS ASSY,WI
SKU: 36611-92J01 Weight: 0.000000 Brand: Price: $ 23.88 |
HARNESS ASSY,WI | 1 | $ 23.88 | ||
| 16 | 36616-90J10 Remocon Connector Holder
SKU: 36616-90J10 Weight: 0.250000 Brand: Price: $ 6.97 |
Remocon Connector Holder | 1 | $ 6.97 | ||
| 17 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 18 | 09408-00111 Clamp (NLA)
SKU: 09408-00111 Weight: 0.100000 Brand: Price: $ 3.01 |
Clamp (NLA) | 1 | $ 3.01 | ||
| 19 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 20 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 21 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 22 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 23 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | ||
| 24 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 |
