Suzuki DF 115A Parts Listings - 2019
S/N 11503F-910001 to 11503F-91XXXX
S/N 11503Z-910001 to 11503Z-91XXXX
S/N 11504F-910001 to 11504F-91XXXX

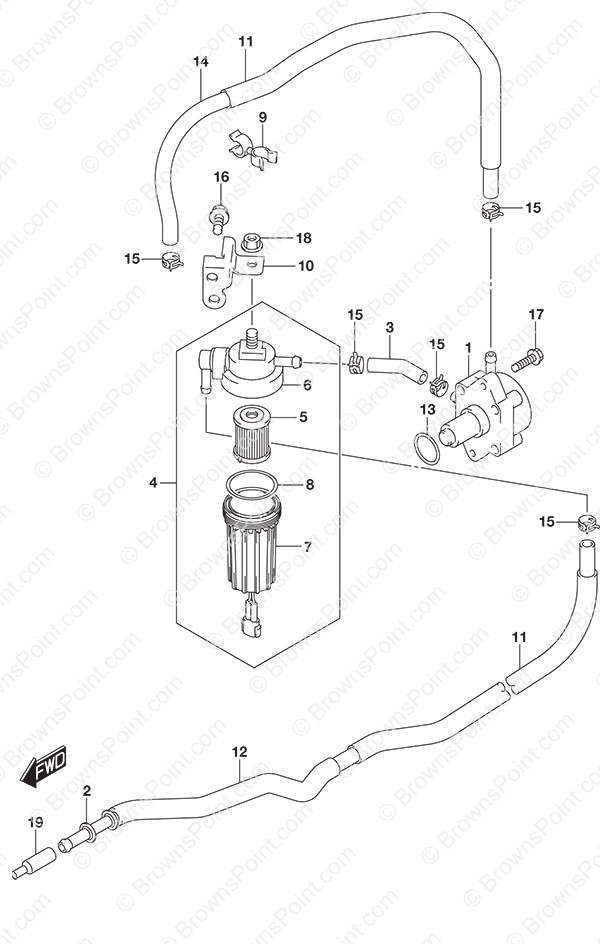

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 165.75 |
Fuel Pump Assembly | 1 | $ 165.75 | ||
| 2 | 15190-92J10 Fuel Hose
SKU: 15190-92J10 Weight: 0.250000 Brand: Price: $ 74.89 |
Fuel Hose | 1 | $ 74.89 | Joint to Filter | |
| 3 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 53.16 |
Fuel Hose (7x12x600) | 1 | $ 53.16 | Filter to Pump L:600->60 | |
| 4 | 15410-92J01 Fuel Filter Assembly
SKU: 15410-92J01 Weight: 1.000000 Brand: Price: $ 156.73 |
Fuel Filter Assembly | 1 | $ 156.73 | ||
| 5 | 15412-92J00 Fuel Filter
SKU: 15412-92J00 Weight: 0.180000 Brand: Price: $ 23.03 |
Fuel Filter | 1 | $ 23.03 | ||
| 6 | 15411-92J00 Fuel Filter Cap
SKU: 15411-92J00 Weight: 0.250000 Brand: Price: $ 48.28 |
Fuel Filter Cap | 1 | $ 48.28 | ||
| 7 | 15413-92J00 Fuel Filter Case
SKU: 15413-92J00 Weight: 0.250000 Brand: Price: $ 79.10 |
Fuel Filter Case | 1 | $ 79.10 | ||
| 8 | 15415-92J00 Fuel Filter Seal
SKU: 15415-92J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Fuel Filter Seal | 1 | $ 8.50 | ||
| 9 | 09408-00050 Clip
SKU: 09408-00050 Weight: 0.060000 Brand: Price: $ 2.32 |
Clip | 1 | $ 2.32 | ||
| 10 | 15421-92J00 Fuel Filter Bracket
SKU: 15421-92J00 Weight: 0.250000 Brand: Price: $ 7.76 |
Fuel Filter Bracket | 1 | $ 7.76 | ||
| 11 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 2 | $ 6.62 | ||
| 12 | 18498-89J51 Fuel Hose Protector (L:200)
SKU: 18498-89J51 Weight: 0.250000 Brand: Price: $ 4.22 |
Fuel Hose Protector (L:200) | 1 | $ 4.22 | ||
| 13 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 14 | 15192-92J00 Fuel Hose
SKU: 15192-92J00 Weight: 0.250000 Brand: Price: $ 40.32 |
Fuel Hose | 1 | $ 40.32 | Pump to Separator | |
| 15 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
| 16 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 17 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 19 | 15419-92J00 Joint Cap
SKU: 15419-92J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Joint Cap | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
