Suzuki DF 300AP Parts Listings - 2018
S/N 30002P-810001 to 30002P-81XXXX

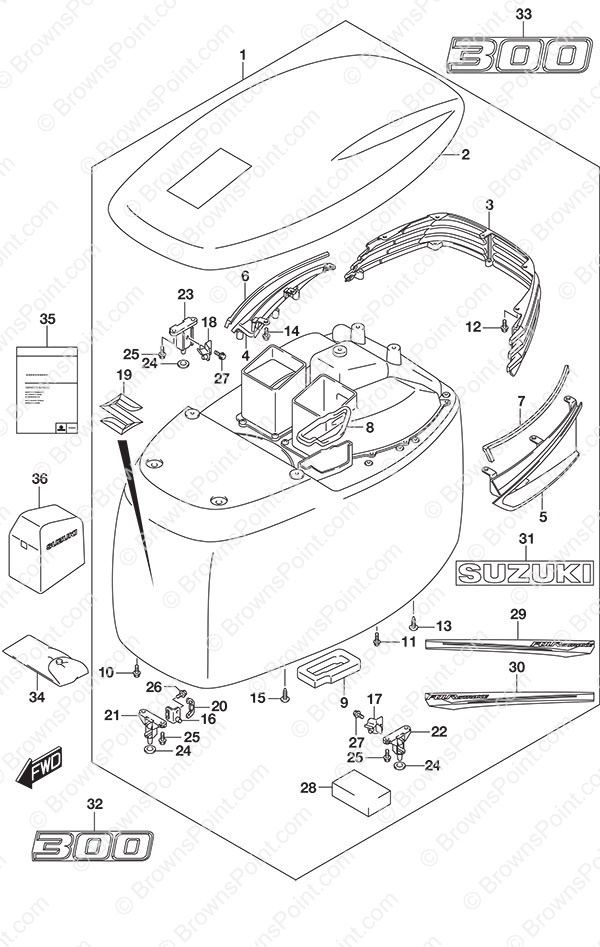

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61420-98801-YAY Engine Cover Set
SKU: 61420-98801-YAY Weight: 45.000000 Brand: Price: $ 1,754.89 |
Engine Cover Set | 1 | $ 1,754.89 | Black | |
| 1-2 | 61420-98810-Y5S Engine Cover Set
SKU: 61420-98810-Y5S Weight: 45.000000 Brand: Price: $ 2,196.88 |
Engine Cover Set | 1 | $ 2,196.88 | White | |
| 2-1 | 61431-98J10-YAY Top Cover
SKU: 61431-98J10-YAY Weight: 2.000000 Brand: Price: $ 388.88 |
Top Cover | 1 | $ 388.88 | Black | |
| 2-2 | 61431-98J10-Y5S Top Cover
SKU: 61431-98J10-Y5S Weight: 2.000000 Brand: Price: $ 449.79 |
Top Cover | 1 | $ 449.79 | White | |
| 3 | 61432-98J01 Air Intake Louver
SKU: 61432-98J01 Weight: 1.000000 Brand: Price: $ 66.13 |
Air Intake Louver | 1 | $ 66.13 | ||
| 4 | 61433-98J01 Upper Cover Starboard Grip
SKU: 61433-98J01 Weight: 2.000000 Brand: Price: $ 72.44 |
Upper Cover Starboard Grip | 1 | $ 72.44 | ||
| 5 | 61434-98J02 Upper Cover Port Grip
SKU: 61434-98J02 Weight: 0.250000 Brand: Price: $ 72.49 |
Upper Cover Port Grip | 1 | $ 72.49 | ||
| 6 | 61439-98J01 SEAL,GRIP STBD
SKU: 61439-98J01 Weight: 0.000000 Brand: Price: $ 12.46 |
SEAL,GRIP STBD | 1 | $ 12.46 | ||
| 7 | 61439-98J10 Port Grip Seal
SKU: 61439-98J10 Weight: 0.060000 Brand: Price: $ 14.09 |
Port Grip Seal | 1 | $ 14.09 | ||
| 8 | 61439-98J21 Air Vent No 2 Seal (NLA)
SKU: 61439-98J21 Weight: 0.250000 Brand: Price: $ 11.95 |
Air Vent No 2 Seal (NLA) | 1 | $ 11.95 | ||
| 9 | 61476-98J00 Air Vent No 1 Seal
SKU: 61476-98J00 Weight: 0.060000 Brand: Price: $ 5.88 |
Air Vent No 1 Seal | 1 | $ 5.88 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 11 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 13 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 5 | $ 2.16 | ||
| 14 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 15 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 4 | $ 2.16 | ||
| 16 | 61610-98J00 Front Fastener
SKU: 61610-98J00 Weight: 0.100000 Brand: Price: $ 21.36 |
Front Fastener | 1 | $ 21.36 | ||
| 17 | 61610-98J30 Port Fastener (NLA)
SKU: 61610-98J30 Weight: 0.100000 Brand: Price: $ 59.22 |
Port Fastener (NLA) | 1 | $ 59.22 | ||
| 18 | 61610-98J40 Starboard Fastener
SKU: 61610-98J40 Weight: 0.100000 Brand: Price: $ 62.96 |
Starboard Fastener | 1 | $ 62.96 | ||
| 19 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 20 | 61614-98J00 Fastener Protector (NLA)
SKU: 61614-98J00 Weight: 0.100000 Brand: Price: $ 6.50 |
Fastener Protector (NLA) | 1 | $ 6.50 | ||
| 21 | 61621-98J02 Front Fastener Bracket
SKU: 61621-98J02 Weight: 0.126000 Brand: Price: $ 24.13 |
Front Fastener Bracket | 1 | $ 24.13 | ||
| 22 | 61624-98J11 Port Fastener Bracket
SKU: 61624-98J11 Weight: 0.125000 Brand: Price: $ 24.13 |
Port Fastener Bracket | 1 | $ 24.13 | ||
| 23 | 61625-98J11 Starboard Fastener Bracket
SKU: 61625-98J11 Weight: 0.125000 Brand: Price: $ 24.13 |
Starboard Fastener Bracket | 1 | $ 24.13 | ||
| 24 | 61619-98J00 Engine Cover Fastener Cushion
SKU: 61619-98J00 Weight: 0.125000 Brand: Price: $ 5.90 |
Engine Cover Fastener Cushion | 3 | $ 5.90 | ||
| 25 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 26 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 27 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 28 | 61425-98J00 Engine Cover Cushion
SKU: 61425-98J00 Weight: 0.060000 Brand: Price: $ 5.42 |
Engine Cover Cushion | 1 | $ 5.42 | ||
| 29-1 | 61443-96J70 Starboard Engine Cover Stripe
SKU: 61443-96J70 Weight: 0.250000 Brand: Price: $ 29.60 |
Starboard Engine Cover Stripe | 1 | $ 29.60 | For Black | |
| 29-2 | 61443-96J80 Starboard Engine Cover Stripe
SKU: 61443-96J80 Weight: 0.250000 Brand: Price: $ 29.60 |
Starboard Engine Cover Stripe | 1 | $ 29.60 | For White | |
| 30-1 | 61453-96J70 Port Engine Cover Stripe
SKU: 61453-96J70 Weight: 0.250000 Brand: Price: $ 29.60 |
Port Engine Cover Stripe | 1 | $ 29.60 | For Black | |
| 30-2 | 61453-96J80 Port Engine Cover Stripe
SKU: 61453-96J80 Weight: 0.250000 Brand: Price: $ 28.62 |
Port Engine Cover Stripe | 1 | $ 28.62 | For White | |
| 31 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 32-1 | 61422-98J50 Front Emblem Mark (300)
SKU: 61422-98J50 Weight: 0.125000 Brand: Price: $ 10.49 |
Front Emblem Mark (300) | 1 | $ 10.49 | For Black | |
| 32-2 | 61422-98J30 Front Emblem Mark (300)
SKU: 61422-98J30 Weight: 0.125000 Brand: Price: $ 10.49 |
Front Emblem Mark (300) | 1 | $ 10.49 | For White | |
| 33-1 | 61435-98J50 Rear Emblem Mark (300)
SKU: 61435-98J50 Weight: 0.125000 Brand: Price: $ 11.38 |
Rear Emblem Mark (300) | 1 | $ 11.38 | For Black | |
| 33-2 | 61435-98J30 Rear Emblem Mark (300)
SKU: 61435-98J30 Weight: 0.125000 Brand: Price: $ 11.59 |
Rear Emblem Mark (300) | 1 | $ 11.59 | For White | |
| 34 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | ||
| 35 | 99011-98J70-03B Owners Manual DF250AP/DF300AP - 2018
SKU: 99011-98J70-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF250AP/DF300AP - 2018 | 1 | $ 20.00 | ||
| 36 | 990C0-65033 DF250AP / DF 300 / DF300AP Genuine Engine Cover
SKU: 990C0-65033 Weight: 2.000000 Brand: Price: $ 158.33 |
DF250AP / DF 300 / DF300AP Genuine Engine Cover | 1 | $ 158.33 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
