Suzuki DF 250AP Parts Listings - 2018
S/N 25003P-810001 to 25003P-81XXXX

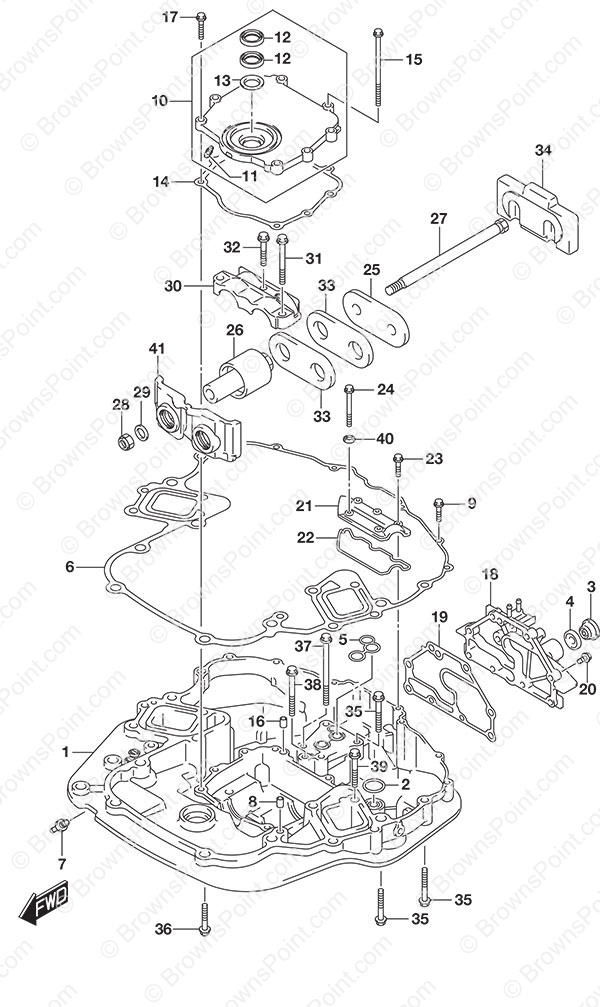

Fig. 401 - Engine Holder

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 51111-93J30-YAY Engine Holder 1 $ 1,103.01

Not Available

Black
1-2 51111-93J30-Y5S Engine Holder 1 $ 1,154.33

Not Available

White
2 16519-93J00 Engine Holder Seal 1 $ 5.02
3 17913-93J00 Water Flush Plug 1 $ 4.56
4 17914-93J01 Water Flush Plug Gasket 1 $ 2.28
5 51116-93J01 Water Return Seal 1 $ 4.50
6 51211-93J00 Engine Holder Gasket 1 $ 87.40
7 61155-93J20 Water Indicator Union 1 $ 14.62
8 09206-08001 Knock Pin (8x11) 2 $ 1.78
9 01550-08307 BOLT 6 $ 3.59
10 51120-93J02 Mount Oil Seal Cover Set 1 $ 156.12
11 22511-99011 Grease Nipple 1 $ 3.36
12 51124-93J01 Oil Seal 2 $ 7.75
13 51125-93J00 Scrapper 1 $ 11.18
14 51123-93J01 Mount Oil Seal Cover Gasket 1 $ 9.43
15 09103-08109 Bolt (8x120) 2 $ 3.22
16 09206-08001 Knock Pin (8x11) 2 $ 1.78
17 01550-0830A BOLT 6 $ 3.09
18-1 51140-98J00-YAY Engine Holder Cover 1 $ 272.43
Black
18-2 51140-98J00-Y5S Engine Holder Cover 1 $ 327.75
White
19 51142-93J00 Engine Holder Cover Gasket 1 $ 8.02
20 09116-08122 Bolt (8x30) 8 $ 4.66
21 51151-93J00 Engine Holder Upper Cover 1 $ 51.48
22 51152-93J00 Engine Holder Upper Cover Seal 1 $ 7.36
23 01550-08307 BOLT 3 $ 3.59
24 01550-08607 BOLT 2 $ 3.82
25 54123-93J03 Upper Mount Plate 1 $ 79.62
26 54130-93J01 Upper Mount 2 $ 92.71
27 54112-93J00 Upper Mount Bolt 2 $ 73.85
28 29159-93J00 Upper Mount Bolt Nut 2 $ 13.25
29 09160-15051 Upper Mount Bolt Washer 2 $ 1.96
30 54137-93J02 Upper Mount Cover 1 $ 82.13
31 09116-10135 Bolt (10x95) 2 $ 8.85
32 09116-10175 Bolt (10x50) 1 $ 6.90
33 54121-98J01 Upper Thrust Stopper 2 $ 14.38
34 54140-98J01 MOUNT,UPR THRUS 1 $ 89.96
35 09116-10137 Bolt (10x70) 6 $ 8.02
36 09116-10175 Bolt (10x50) 4 $ 6.90
37 09116-10146 Bolt (10x195) 2 $ 29.18
38 09116-10134 Bolt (10x115) 1 $ 10.42
39 09116-08126 Bolt (8x65) 4 $ 4.34
40 09169-08038 Washer (8.3x15x3) 2 $ 3.79
41 54144-93J00 Upper Mount Seal 1 $ 17.80

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
