Suzuki DF 250 Parts Listings - 2018
S/N 25003F-810001 to 25003F-81XXXX
S/N 25003Z-810001 to 25003Z-81XXXX
S/N 25004F-810001 to 25004F-81XXXX

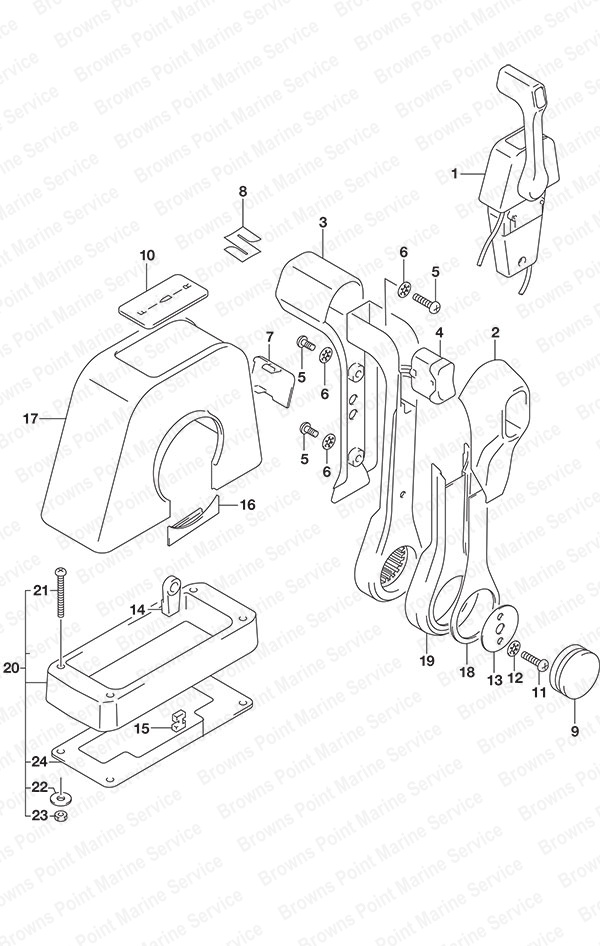

Fig. 544 - Opt: Top Mount Single (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-88L02 Single Binnacle Control Box
SKU: 67200-88L02 Weight: 0.000000 Brand: Price: $ 435.72 |
Single Binnacle Control Box | 1 | $ 435.72 | ||
| 2 | 67261-88L10 Grip No.2
SKU: 67261-88L10 Weight: 0.200000 Brand: Price: $ 16.13 |
Grip No.2 | 1 | $ 16.13 | ||
| 3 | 67261-88L00 Grip No. 1
SKU: 67261-88L00 Weight: 0.250000 Brand: Price: $ 19.09 |
Grip No. 1 | 1 | $ 19.09 | ||
| 4 | 37850-88L00 PTT Switch Assembly
SKU: 37850-88L00 Weight: 0.250000 Brand: Price: $ 104.20 |
PTT Switch Assembly | 1 | $ 104.20 | ||
| 5 | 67296-88L00 Screw
SKU: 67296-88L00 Weight: 0.060000 Brand: Price: $ 6.60 |
Screw | 3 | $ 6.60 | ||
| 6 | 67288-92E20 Washer
SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 3 | $ 2.49 | ||
| 7 | 67212-88L00 Cover Plug (Single)
SKU: 67212-88L00 Weight: 0.060000 Brand: Price: $ 12.17 |
Cover Plug (Single) | 1 | $ 12.17 | ||
| 8 | 68111-88L00 Emblem Mark (S)
SKU: 68111-88L00 Weight: 0.060000 Brand: Price: $ 10.40 |
Emblem Mark (S) | 1 | $ 10.40 | ||
| 9 | 67257-88L00 Lever Cap
SKU: 67257-88L00 Weight: 0.250000 Brand: Price: $ 10.20 |
Lever Cap | 1 | $ 10.20 | ||
| 10 | 67281-88L00 Decal (Single)
SKU: 67281-88L00 Weight: 0.060000 Brand: Price: $ 34.56 |
Decal (Single) | 1 | $ 34.56 | ||
| 11 | 67296-92E60 Screw
SKU: 67296-92E60 Weight: 0.100000 Brand: Price: $ 3.13 |
Screw | 2 | $ 3.13 | ||
| 12 | 67288-92E60 Washer
SKU: 67288-92E60 Weight: 0.060000 Brand: Price: $ 2.44 |
Washer | 2 | $ 2.44 | ||
| 13 | 67253-92E00 Washer
SKU: 67253-92E00 Weight: 0.060000 Brand: Price: $ 5.38 |
Washer | 1 | $ 5.38 | ||
| 14 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 15 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 16 | 67271-88L10 Remocon Lever Lower Cover
SKU: 67271-88L10 Weight: 0.060000 Brand: Price: $ 11.87 |
Remocon Lever Lower Cover | 1 | $ 11.87 | ||
| 17 | 67211-88L00 Top Binnacle Cover (Single)
SKU: 67211-88L00 Weight: 0.250000 Brand: Price: $ 24.45 |
Top Binnacle Cover (Single) | 1 | $ 24.45 | ||
| 18 | 67264-88L00 Lever Design Cover
SKU: 67264-88L00 Weight: 0.060000 Brand: Price: $ 28.02 |
Lever Design Cover | 1 | $ 28.02 | ||
| 19 | 67264-88L10 Lever Plating Cover
SKU: 67264-88L10 Weight: 0.250000 Brand: Price: $ 49.90 |
Lever Plating Cover | 1 | $ 49.90 | ||
| 20 | 67500-88L00 Single Binnacle Box Spacer
SKU: 67500-88L00 Weight: 0.500000 Brand: Price: $ 33.12 |
Single Binnacle Box Spacer | 1 | $ 33.12 | ||
| 21 | 09125-05135 Screw (5x65)
SKU: 09125-05135 Weight: 0.125000 Brand: Price: $ 3.24 |
Screw (5x65) | 4 | $ 3.24 | ||
| 22 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 4 | $ 1.70 | ||
| 23 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 4 | $ 2.65 | ||
| 24 | 67273-88L00 Grommet (Single)
SKU: 67273-88L00 Weight: 0.125000 Brand: Price: $ 5.73 |
Grommet (Single) | 1 | $ 5.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
