Suzuki DF 250 Parts Listings - 2018
S/N 25004F-810001 to 25004F-81XXXX

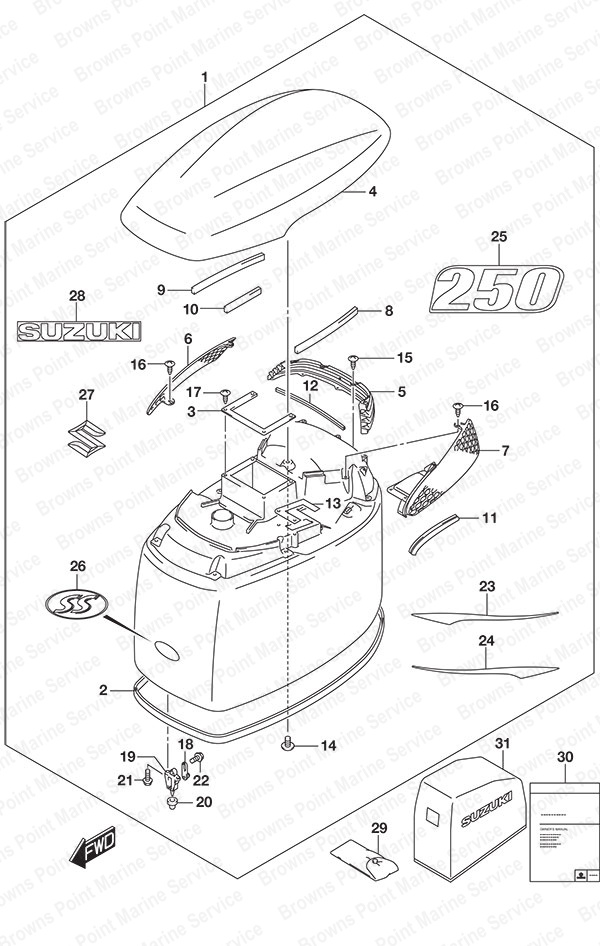

Fig. 420B - Engine Cover SS Model
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61430-93813-YAY COVER SET,ENGIN
SKU: 61430-93813-YAY Weight: 0.000000 Brand: Price: $ 1,688.09 |
COVER SET,ENGIN | 1 | $ 1,688.09 | Black | |
| 1-2 | 61430-93822-YKV COVER SET,ENGIN
SKU: 61430-93822-YKV Weight: 0.000000 Brand: Price: $ 1,752.39 |
COVER SET,ENGIN | 1 | $ 1,752.39 | Matte Black | |
| 2 | 61112-93J20 Engine Cover Rubber
SKU: 61112-93J20 Weight: 1.500000 Brand: Price: $ 136.66 |
Engine Cover Rubber | 1 | $ 136.66 | ||
| 3 | 61416-93J00 Air Intake Guard
SKU: 61416-93J00 Weight: 0.100000 Brand: Price: $ 11.38 |
Air Intake Guard | 1 | $ 11.38 | ||
| 4-1 | 61431-93J03-YAY Tilt Up Handle
SKU: 61431-93J03-YAY Weight: 2.000000 Brand: Price: $ 347.16 |
Tilt Up Handle | 1 | $ 347.16 | Black | |
| 4-2 | 61431-93J03-YKV Tilt Up Handle
SKU: 61431-93J03-YKV Weight: 2.000000 Brand: Price: $ 400.44 |
Tilt Up Handle | 1 | $ 400.44 | Matte Black | |
| 5 | 61432-93J10 Tilt Up Handle Louver
SKU: 61432-93J10 Weight: 2.000000 Brand: Price: $ 73.93 |
Tilt Up Handle Louver | 1 | $ 73.93 | Matte Red | |
| 6 | 61433-93J01 Air Intake Inner Starboard Cover
SKU: 61433-93J01 Weight: 1.000000 Brand: Price: $ 28.76 |
Air Intake Inner Starboard Cover | 1 | $ 28.76 | ||
| 7 | 61434-93J01 Air Intake Inner Port Cover
SKU: 61434-93J01 Weight: 0.200000 Brand: Price: $ 28.76 |
Air Intake Inner Port Cover | 1 | $ 28.76 | ||
| 8 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250 | |
| 9 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250->190 | |
| 10 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L: 250->106 | |
| 11 | 61439-93J20 Tilt Up Handle Port Seal
SKU: 61439-93J20 Weight: 0.100000 Brand: Price: $ 11.62 |
Tilt Up Handle Port Seal | 1 | $ 11.62 | ||
| 12 | 61439-93J41 Tilt Up Handle Rear Seal
SKU: 61439-93J41 Weight: 0.100000 Brand: Price: $ 7.94 |
Tilt Up Handle Rear Seal | 1 | $ 7.94 | ||
| 13 | 61476-93J00 Air Vent Seal
SKU: 61476-93J00 Weight: 0.100000 Brand: Price: $ 9.33 |
Air Vent Seal | 1 | $ 9.33 | ||
| 14 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 15 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 16 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 17 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 18 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 21 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 23-1 | 61443-93J60 Engine Cover Starboard Stripe
SKU: 61443-93J60 Weight: 0.400000 Brand: Price: $ 25.94 |
Engine Cover Starboard Stripe | 1 | $ 25.94 | For Black | |
| 23-2 | 61443-93J50 Engine Cover Starboard Stripe
SKU: 61443-93J50 Weight: 0.400000 Brand: Price: $ 37.73 |
Engine Cover Starboard Stripe | 1 | $ 37.73 | For Matte Black | |
| 24-1 | 61453-93J60 Engine Cover Port Stripe
SKU: 61453-93J60 Weight: 0.400000 Brand: Price: $ 32.40 |
Engine Cover Port Stripe | 1 | $ 32.40 | For Black | |
| 24-2 | 61453-93J50 Engine Cover Port Stripe
SKU: 61453-93J50 Weight: 0.400000 Brand: Price: $ 36.64 |
Engine Cover Port Stripe | 1 | $ 36.64 | For Matte Black | |
| 25-1 | 61435-93JG0 Rear Emblem Mark (250)
SKU: 61435-93JG0 Weight: 0.200000 Brand: Price: $ 55.18 |
Rear Emblem Mark (250) | 1 | $ 55.18 | For Black | |
| 25-2 | 61435-93J90 Rear Emblem Mark (250)
SKU: 61435-93J90 Weight: 0.200000 Brand: Price: $ 65.73 |
Rear Emblem Mark (250) | 1 | $ 65.73 | For Matte Black | |
| 26 | 61424-93J00 Emblem Mark (SS)
SKU: 61424-93J00 Weight: 0.100000 Brand: Price: $ 38.23 |
Emblem Mark (SS) | 1 | $ 38.23 | ||
| 27 | 68111-93J00 Emblem Mark 'S'
SKU: 68111-93J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Emblem Mark 'S' | 1 | $ 16.42 | ||
| 28 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 29 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | ||
| 30 | 99011-93JF0-03B Owners Manual DF 250SS - 2018
SKU: 99011-93JF0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF 250SS - 2018 | 1 | $ 20.00 | ||
| 31 | 990C0-65032 DF200 / DF225 / DF250 Genuine Engine Cover
SKU: 990C0-65032 Weight: 1.500000 Brand: Price: $ 138.01 |
DF200 / DF225 / DF250 Genuine Engine Cover | 1 | $ 138.01 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
