Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

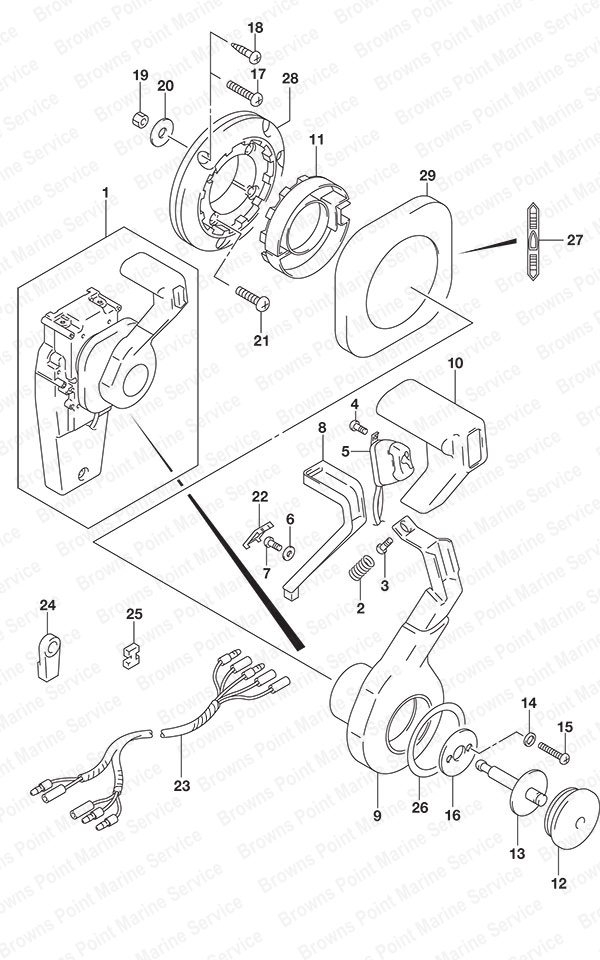

Fig. 517 - Opt: Concealed Remocon (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-93J34 Flush Mount Control Box
SKU: 67200-93J34 Weight: 8.000000 Brand: Price: $ 440.25 |
Flush Mount Control Box | 1 | $ 440.25 | ||
| 2 | 67298-92E50 Spring
SKU: 67298-92E50 Weight: 0.060000 Brand: Price: $ 1.74 |
Spring | 1 | $ 1.74 | ||
| 3 | 67296-94310 Screw
SKU: 67296-94310 Weight: 0.060000 Brand: Price: $ 1.85 |
Screw | 1 | $ 1.85 | ||
| 4 | 67295-92E10 Screw (3x12)
SKU: 67295-92E10 Weight: 0.060000 Brand: Price: $ 2.49 |
Screw (3x12) | 2 | $ 2.49 | ||
| 5 | 37850-92E27 PTT Switch Assembly
SKU: 37850-92E27 Weight: 0.250000 Brand: Price: $ 88.20 |
PTT Switch Assembly | 1 | $ 88.20 | ||
| 6 | 67288-92E60 Washer
SKU: 67288-92E60 Weight: 0.060000 Brand: Price: $ 2.44 |
Washer | 1 | $ 2.44 | ||
| 7 | 67296-92E52 Screw
SKU: 67296-92E52 Weight: 0.100000 Brand: Price: $ 1.14 |
Screw | 1 | $ 1.14 | ||
| 8 | 67255-92E50 Neutral Lock Arm
SKU: 67255-92E50 Weight: 0.060000 Brand: Price: $ 9.43 |
Neutral Lock Arm | 1 | $ 9.43 | ||
| 9 | 67251-92E50 Handle Lever
SKU: 67251-92E50 Weight: 2.000000 Brand: Price: $ 129.09 |
Handle Lever | 1 | $ 129.09 | ||
| 10 | 67261-92E50 Grip
SKU: 67261-92E50 Weight: 0.250000 Brand: Price: $ 12.95 |
Grip | 1 | $ 12.95 | ||
| 11 | 67256-92E50 Neutral Lock Holder
SKU: 67256-92E50 Weight: 0.100000 Brand: Price: $ 13.73 |
Neutral Lock Holder | 1 | $ 13.73 | ||
| 12 | 67257-92E00 Lever Cap
SKU: 67257-92E00 Weight: 0.200000 Brand: Price: $ 9.34 |
Lever Cap | 1 | $ 9.34 | ||
| 13 | 67242-92E50 Free Accel Shaft
SKU: 67242-92E50 Weight: 0.060000 Brand: Price: $ 6.50 |
Free Accel Shaft | 1 | $ 6.50 | ||
| 14 | 67288-92E20 Washer
SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 6 | $ 2.49 | ||
| 15 | 67296-88D10 Screw (5x16)
SKU: 67296-88D10 Weight: 0.060000 Brand: Price: $ 2.44 |
Screw (5x16) | 4 | $ 2.44 | ||
| 16 | 67288-92E70 Washer (NLA)
SKU: 67288-92E70 Weight: 0.100000 Brand: Price: $ 4.23 |
Washer (NLA) | 1 | $ 4.23 | ||
| 17 | 67296-88D20 Screw (6x35) (NLA)
SKU: 67296-88D20 Weight: 0.125000 Brand: Price: $ 2.43 |
Screw (6x35) (NLA) | 3 | $ 2.43 | ||
| 18 | 67295-92E50 Screw (6x30) (NLA)
SKU: 67295-92E50 Weight: 0.125000 Brand: Price: $ 1.90 |
Screw (6x30) (NLA) | 3 | $ 1.90 | ||
| 19 | 67287-92E50 Nut (NLA)
SKU: 67287-92E50 Weight: 0.100000 Brand: Price: $ 1.90 |
Nut (NLA) | 3 | $ 1.90 | ||
| 20 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 3 | $ 2.64 | ||
| 21 | 67296-88D30 Screw (5x30) (NLA)
SKU: 67296-88D30 Weight: 0.100000 Brand: Price: $ 1.64 |
Screw (5x30) (NLA) | 4 | $ 1.64 | ||
| 22 | 67254-92E50 Lock Arm Cover
SKU: 67254-92E50 Weight: 0.060000 Brand: Price: $ 3.00 |
Lock Arm Cover | 1 | $ 3.00 | ||
| 23 | 36890-93J00 Wire Harness
SKU: 36890-93J00 Weight: 0.200000 Brand: Price: $ 76.27 |
Wire Harness | 1 | $ 76.27 | ||
| 24 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 25 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 26 | 67283-92E50 Lever Decal (NLA)
SKU: 67283-92E50 Weight: 0.100000 Brand: Price: $ 11.91 |
Lever Decal (NLA) | 1 | $ 11.91 | ||
| 27 | 67284-92E50 Clutch Decal (NLA)
SKU: 67284-92E50 Weight: 0.100000 Brand: Price: $ 9.89 |
Clutch Decal (NLA) | 1 | $ 9.89 | ||
| 28 | 67274-92E50 Base
SKU: 67274-92E50 Weight: 0.120000 Brand: Price: $ 23.39 |
Base | 1 | $ 23.39 | ||
| 29 | 67211-92E50 Flush Mount Cover
SKU: 67211-92E50 Weight: 0.100000 Brand: Price: $ 58.20 |
Flush Mount Cover | 1 | $ 58.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
