Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

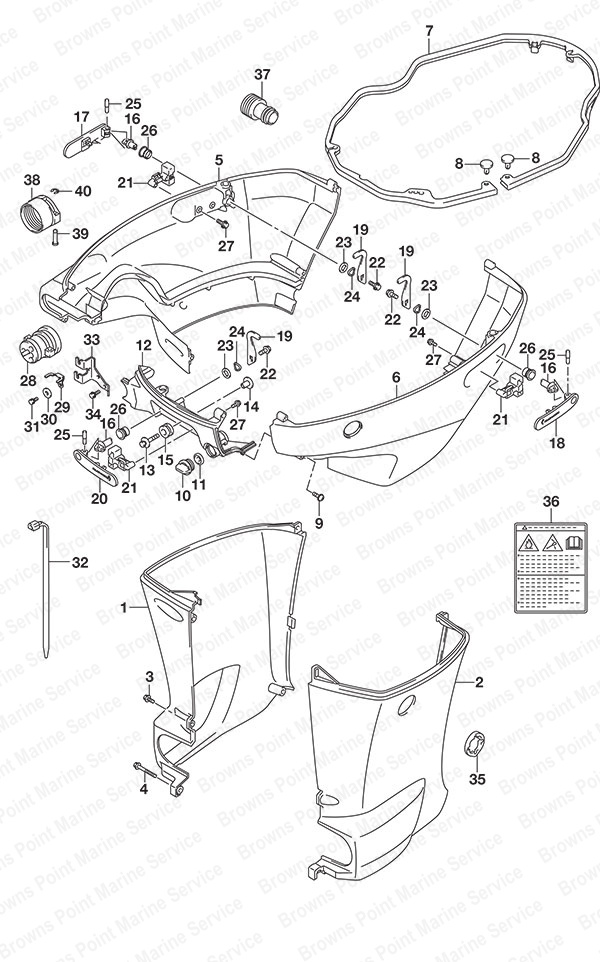

Fig. 410 - Side Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61131-96J03-YAY Starboard Oil Pan Cover (L)
SKU: 61131-96J03-YAY Weight: 5.000000 Brand: Price: $ 185.11 |
Starboard Oil Pan Cover (L) | 1 | $ 185.11 | Black w/Transom (L) | |
| 1-2 | 61131-96J03-Y5S Starboard Oil Pan Cover (L)
SKU: 61131-96J03-Y5S Weight: 5.000000 Brand: Price: $ 187.77 |
Starboard Oil Pan Cover (L) | 1 | $ 187.77 | White w/Transom (L) | |
| 1-3 | 61131-96J03-YKV Starboard Oil Pan Cover (L)
SKU: 61131-96J03-YKV Weight: 5.000000 Brand: Price: $ 191.31 |
Starboard Oil Pan Cover (L) | 1 | $ 191.31 | Matte Black w/Transom (L) | |
| 1-4 | 61131-96J13-YAY Starboard Oil Pan Cover (X)
SKU: 61131-96J13-YAY Weight: 5.000000 Brand: Price: $ 195.10 |
Starboard Oil Pan Cover (X) | 1 | $ 195.10 | Black w/Transom (X) | |
| 1-5 | 61131-96J13-Y5S Starboard Oil Pan Cover (X)
SKU: 61131-96J13-Y5S Weight: 5.000000 Brand: Price: $ 195.10 |
Starboard Oil Pan Cover (X) | 1 | $ 195.10 | White w/Transom (X) | |
| 1-6 | 61131-96J13-YKV Starboard Oil Pan Cover (X)
SKU: 61131-96J13-YKV Weight: 5.000000 Brand: Price: $ 199.22 |
Starboard Oil Pan Cover (X) | 1 | $ 199.22 | Matte Black w/Transom (X) | |
| 2-1 | 61141-96J03-YAY Port Oil Pan Cover (L)
SKU: 61141-96J03-YAY Weight: 5.000000 Brand: Price: $ 194.38 |
Port Oil Pan Cover (L) | 1 | $ 194.38 | Black w/Transom (L) | |
| 2-2 | 61141-96J03-Y5S Port Oil Pan Cover (L)
SKU: 61141-96J03-Y5S Weight: 5.000000 Brand: Price: $ 197.17 |
Port Oil Pan Cover (L) | 1 | $ 197.17 | White w/Transom (L) | |
| 2-3 | 61141-96J03-YKV Port Oil Pan Cover (L)
SKU: 61141-96J03-YKV Weight: 5.000000 Brand: Price: $ 200.88 |
Port Oil Pan Cover (L) | 1 | $ 200.88 | Matte Black w/Transom (L) | |
| 2-4 | 61141-96J13-YAY Port Oil Pan Cover (X)
SKU: 61141-96J13-YAY Weight: 5.000000 Brand: Price: $ 179.06 |
Port Oil Pan Cover (X) | 1 | $ 179.06 | Black w/Transom (X) | |
| 2-5 | 61141-96J13-Y5S Port Oil Pan Cover (X)
SKU: 61141-96J13-Y5S Weight: 5.000000 Brand: Price: $ 217.12 |
Port Oil Pan Cover (X) | 1 | $ 217.12 | White w/Transom (X) | |
| 2-6 | 61141-96J13-YKV COVER,OIL PAN P
SKU: 61141-96J13-YKV Weight: 0.000000 Brand: Price: $ 184.40 |
COVER,OIL PAN P | 1 | $ 184.40 | Matte Black w/Transom (X) | |
| 3-1 | 09139-06135 Oil Pan Cover Screw (6x17)
SKU: 09139-06135 Weight: 0.060000 Brand: Price: $ 5.02 |
Oil Pan Cover Screw (6x17) | 3 | $ 5.02 | w/Transom (L) | |
| 3-2 | 09139-06135 Oil Pan Cover Screw (6x17)
SKU: 09139-06135 Weight: 0.060000 Brand: Price: $ 5.02 |
Oil Pan Cover Screw (6x17) | 5 | $ 5.02 | w/Transom (X) | |
| 4 | 09139-06147 Oil Pan Cover Screw (6x114)
SKU: 09139-06147 Weight: 0.080000 Brand: Price: $ 22.73 |
Oil Pan Cover Screw (6x114) | 1 | $ 22.73 | w/Transom (L) | |
| 5-1 | 61811-96L02-YAY Starboard Side Cover
SKU: 61811-96L02-YAY Weight: 0.000000 Brand: Price: $ 261.07 |
Starboard Side Cover | 1 | $ 261.07 | Black | |
| 5-2 | 61811-96L01-Y5S Starboard Side Cover
SKU: 61811-96L01-Y5S Weight: 9.000000 Brand: Price: $ 335.85 |
Starboard Side Cover | 1 | $ 335.85 | White | |
| 5-3 | 61811-96L01-YKV Starboard Side Cover
SKU: 61811-96L01-YKV Weight: 9.000000 Brand: Price: $ 410.60 |
Starboard Side Cover | 1 | $ 410.60 | Matte Black | |
| 6-1 | 61820-96L02-YAY Port Side Cover
SKU: 61820-96L02-YAY Weight: 0.000000 Brand: Price: $ 256.24 |
Port Side Cover | 1 | $ 256.24 | Black | |
| 6-2 | 61820-96L01-Y5S Port Side Cover
SKU: 61820-96L01-Y5S Weight: 6.000000 Brand: Price: $ 345.93 |
Port Side Cover | 1 | $ 345.93 | White | |
| 6-3 | 61820-96L01-YKV Port Side Cover
SKU: 61820-96L01-YKV Weight: 6.000000 Brand: Price: $ 410.60 |
Port Side Cover | 1 | $ 410.60 | Matte Black | |
| 7 | 61134-96J02 Side Cover Seal
SKU: 61134-96J02 Weight: 0.500000 Brand: Price: $ 105.12 |
Side Cover Seal | 1 | $ 105.12 | ||
| 9 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 8 | $ 1.96 | ||
| 10 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 11 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 12-1 | 61831-96J10-YAY Front Panel
SKU: 61831-96J10-YAY Weight: 1.000000 Brand: Price: $ 154.09 |
Front Panel | 1 | $ 154.09 | Black | |
| 12-2 | 61831-96J10-Y5S Front Panel
SKU: 61831-96J10-Y5S Weight: 1.000000 Brand: Price: $ 194.90 |
Front Panel | 1 | $ 194.90 | White | |
| 12-3 | 61831-96J10-YKV Front Panel
SKU: 61831-96J10-YKV Weight: 1.000000 Brand: Price: $ 166.18 |
Front Panel | 1 | $ 166.18 | Matte Black | |
| 13 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 14 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 15 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 16 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 3 | $ 37.52 | ||
| 17 | 61633-96J02 Starboard Rear Hook Lever
SKU: 61633-96J02 Weight: 0.200000 Brand: Price: $ 43.42 |
Starboard Rear Hook Lever | 1 | $ 43.42 | ||
| 18 | 61634-96J02 Port Rear Hook Lever
SKU: 61634-96J02 Weight: 0.200000 Brand: Price: $ 44.87 |
Port Rear Hook Lever | 1 | $ 44.87 | ||
| 19 | 61641-93J10 Engine Cover Hook
SKU: 61641-93J10 Weight: 0.080000 Brand: Price: $ 27.45 |
Engine Cover Hook | 3 | $ 27.45 | ||
| 20 | 61645-96J02 Front Hook Lever
SKU: 61645-96J02 Weight: 0.200000 Brand: Price: $ 44.87 |
Front Hook Lever | 1 | $ 44.87 | ||
| 21 | 61673-96J02 Hook Lever Latch
SKU: 61673-96J02 Weight: 0.060000 Brand: Price: $ 8.06 |
Hook Lever Latch | 3 | $ 8.06 | ||
| 22 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 3 | $ 2.98 | ||
| 23 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 3 | $ 2.99 | ||
| 24 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 3 | $ 2.04 | ||
| 25 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 3 | $ 2.82 | ||
| 26 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 3 | $ 2.81 | ||
| 27 | 01550-05107 BOLT
SKU: 01550-05107 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 28 | 61124-96J52 GROMMET,R/CON C
SKU: 61124-96J52 Weight: 0.000000 Brand: Price: $ 21.02 |
GROMMET,R/CON C | 1 | $ 21.02 | ||
| 29 | 67343-96J00 Remocon Cable Stopper
SKU: 67343-96J00 Weight: 0.200000 Brand: Price: $ 11.51 |
Remocon Cable Stopper | 1 | $ 11.51 | ||
| 30 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer (6.2x20x2) | 1 | $ 1.91 | ||
| 31 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 32 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 33 | 67341-96J00 Remocon Cable Holder
SKU: 67341-96J00 Weight: 0.200000 Brand: Price: $ 22.18 |
Remocon Cable Holder | 1 | $ 22.18 | ||
| 34 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 35 | 61136-96L00 Oil Pan Cover Cushion
SKU: 61136-96L00 Weight: 0.060000 Brand: Price: $ 3.12 |
Oil Pan Cover Cushion | 1 | $ 3.12 | ||
| 36 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 37 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 38 | 67361-90J10 Rigging Hose Adapter
SKU: 67361-90J10 Weight: 0.500000 Brand: Price: $ 8.36 |
Rigging Hose Adapter | 1 | $ 8.36 | ||
| 39 | 09208-06009 Hose Adapter Pin
SKU: 09208-06009 Weight: 0.125000 Brand: Price: $ 1.88 |
Hose Adapter Pin | 2 | $ 1.88 | ||
| 40 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 2 | $ 0.76 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
