Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

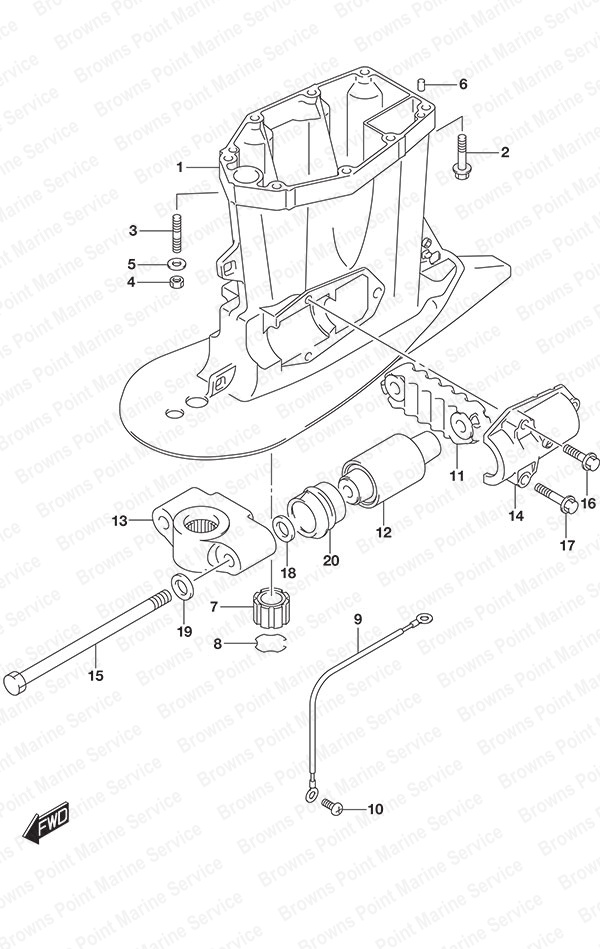

Fig. 405 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-96J00-YAY Drive Shaft Housing (L)
SKU: 52111-96J00-YAY Weight: 15.000000 Brand: Price: $ 781.23 |
Drive Shaft Housing (L) | 1 | $ 781.23 | Black w/Transom (L) | |
| 1-2 | 52111-96J00-Y5S Drive Shaft Housing (L)
SKU: 52111-96J00-Y5S Weight: 15.000000 Brand: Price: $ 823.47 |
Drive Shaft Housing (L) | 1 | $ 823.47 | White w/Transom (L) | |
| 1-3 | 52111-96J11-YAY Drive Shaft Housing (X)
SKU: 52111-96J11-YAY Weight: 18.000000 Brand: Price: $ 851.12 |
Drive Shaft Housing (X) | 1 | $ 851.12 | Black w/Transom (X) | |
| 1-4 | 52111-96J11-Y5S Drive Shaft Housing (X)
SKU: 52111-96J11-Y5S Weight: 18.000000 Brand: Price: $ 824.74 |
Drive Shaft Housing (X) | 1 | $ 824.74 | White w/Transom (X) | |
| 2-1 | 09116-10181 Bolt (10x44)
SKU: 09116-10181 Weight: 0.125000 Brand: Price: $ 5.83 |
Bolt (10x44) | 6 | $ 5.83 | w/Transom (L) | |
| 2-2 | 09116-10181 Bolt (10x44)
SKU: 09116-10181 Weight: 0.125000 Brand: Price: $ 5.83 |
Bolt (10x44) | 8 | $ 5.83 | w/Transom (X) | |
| 3 | 09108-10150 Stud Bolt (NLA)
SKU: 09108-10150 Weight: 1.000000 Brand: Price: $ 7.03 |
Stud Bolt (NLA) | 2 | $ 7.03 | w/Transom (L) | |
| 4 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | w/Transom (L) | |
| 5 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 2 | $ 3.41 | w/Transom (L) | |
| 6 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 7 | 57130-87D10 Drive Shaft Bushing
SKU: 57130-87D10 Weight: 0.150000 Brand: Price: $ 38.20 |
Drive Shaft Bushing | 1 | $ 38.20 | w/Transom (X) | |
| 8 | 09387-39002 RING,DRIVE SHAF
SKU: 09387-39002 Weight: 0.000000 Brand: Price: $ 6.45 |
RING,DRIVE SHAF | 1 | $ 6.45 | w/Transom (X) | |
| 9 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | Swivel to Housing | |
| 10 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 11 | 54151-96J01 Lower Thrust Mount
SKU: 54151-96J01 Weight: 0.100000 Brand: Price: $ 117.08 |
Lower Thrust Mount | 1 | $ 117.08 | ||
| 12 | 54160-96J01 Lower Mount
SKU: 54160-96J01 Weight: 0.500000 Brand: Price: $ 103.04 |
Lower Mount | 2 | $ 103.04 | ||
| 13-1 | 54211-96J01-YAY Lower Mount Bracket
SKU: 54211-96J01-YAY Weight: 0.500000 Brand: Price: $ 143.68 |
Lower Mount Bracket | 1 | $ 143.68 | Black | |
| 13-2 | 54211-96J01-Y5S Lower Mount Bracket
SKU: 54211-96J01-Y5S Weight: 0.500000 Brand: Price: $ 181.09 |
Lower Mount Bracket | 1 | $ 181.09 | White | |
| 14 | 54221-96J00 Lower Mount Cover
SKU: 54221-96J00 Weight: 0.500000 Brand: Price: $ 73.98 |
Lower Mount Cover | 2 | $ 73.98 | ||
| 15 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 16 | 09116-10182 Bolt (10x35)
SKU: 09116-10182 Weight: 0.125000 Brand: Price: $ 5.73 |
Bolt (10x35) | 2 | $ 5.73 | ||
| 17 | 09116-10180 Bolt (10x50)
SKU: 09116-10180 Weight: 0.125000 Brand: Price: $ 6.62 |
Bolt (10x50) | 4 | $ 6.62 | ||
| 18 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 19 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 20 | 54167-96J00 Lower Side Mount
SKU: 54167-96J00 Weight: 1.000000 Brand: Price: $ 14.06 |
Lower Side Mount | 2 | $ 14.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
