Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

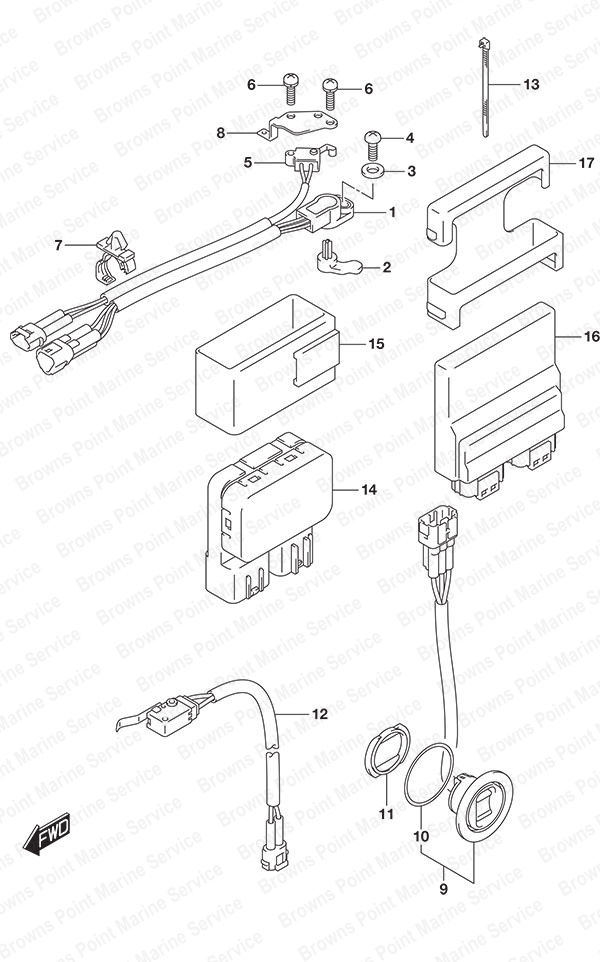

Fig. 326 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13580-93J03 Shift Position Sensor Assembly
SKU: 13580-93J03 Weight: 0.250000 Brand: Price: $ 190.66 |
Shift Position Sensor Assembly | 1 | $ 190.66 | ||
| 2 | 37729-93J00 Shift Sensor Lever
SKU: 37729-93J00 Weight: 0.200000 Brand: Price: $ 1.96 |
Shift Sensor Lever | 1 | $ 1.96 | ||
| 3 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 4 | 02112-35167 SCREW
SKU: 02112-35167 Weight: 0.060000 Brand: Price: $ 2.28 |
SCREW | 1 | $ 2.28 | ||
| 5 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 6 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 7 | 09403-12412 Clamp
SKU: 09403-12412 Weight: 0.060000 Brand: Price: $ 3.37 |
Clamp | 2 | $ 3.37 | ||
| 8 | 37725-96J00 Switch Assembly Bracket (NLA)
SKU: 37725-96J00 Weight: 0.060000 Brand: Price: $ 3.07 |
Switch Assembly Bracket (NLA) | 1 | $ 3.07 | ||
| 9 | 37850-92J00 PTT Switch Assembly
SKU: 37850-92J00 Weight: 0.250000 Brand: Price: $ 101.06 |
PTT Switch Assembly | 1 | $ 101.06 | ||
| 10 | 37856-92J00 PTT Switch Tape
SKU: 37856-92J00 Weight: 0.125000 Brand: Price: $ 3.89 |
PTT Switch Tape | 1 | $ 3.89 | ||
| 11 | 37857-92J01 PTT Switch Bushing
SKU: 37857-92J01 Weight: 0.200000 Brand: Price: $ 2.90 |
PTT Switch Bushing | 1 | $ 2.90 | ||
| 12 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 13 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 14 | 38410-93J21 PTT Relay Assembly
SKU: 38410-93J21 Weight: 0.500000 Brand: Price: $ 117.55 |
PTT Relay Assembly | 1 | $ 117.55 | ||
| 15 | 38415-93J20 PTT Relay Holder
SKU: 38415-93J20 Weight: 0.100000 Brand: Price: $ 9.12 |
PTT Relay Holder | 1 | $ 9.12 | ||
| 16 | 33920-96L80 Engine Control Unit
SKU: 33920-96L80 Weight: 1.000000 Brand: Price: $ 1,396.94 |
Engine Control Unit | 1 | $ 1,396.94 | ||
| 17 | 33925-88L10 ECU Cushion
SKU: 33925-88L10 Weight: 0.250000 Brand: Price: $ 12.04 |
ECU Cushion | 1 | $ 12.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
