Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

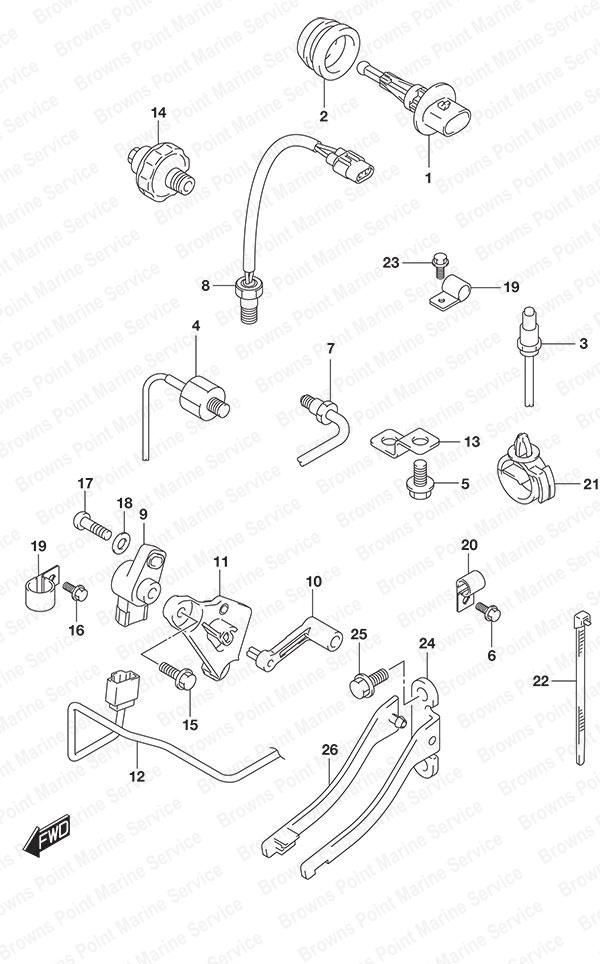

Fig. 315 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 2 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 2.91 |
Air Temp Sensor Grommet | 1 | $ 2.91 | ||
| 3 | 18213-98J30 Oxygen Sensor
SKU: 18213-98J30 Weight: 0.250000 Brand: Price: $ 239.60 |
Oxygen Sensor | 1 | $ 239.60 | ||
| 4 | 18640-78G00 Knock Sensor Assembly
SKU: 18640-78G00 Weight: 0.250000 Brand: Price: $ 148.41 |
Knock Sensor Assembly | 1 | $ 148.41 | ||
| 5 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 6 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 7 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | Exhaust | |
| 8 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | Cylinder | |
| 9 | 34840-98J11 Trim Sensor Assembly
SKU: 34840-98J11 Weight: 0.500000 Brand: Price: $ 132.01 |
Trim Sensor Assembly | 1 | $ 132.01 | ||
| 10 | 34841-96J00 Trim Sensor Lever
SKU: 34841-96J00 Weight: 0.200000 Brand: Price: $ 6.16 |
Trim Sensor Lever | 1 | $ 6.16 | ||
| 11 | 34845-96J00 Trim Sensor Bracket
SKU: 34845-96J00 Weight: 0.200000 Brand: Price: $ 12.71 |
Trim Sensor Bracket | 1 | $ 12.71 | ||
| 12 | 36611-96J01 Trim Sensor Wire
SKU: 36611-96J01 Weight: 0.500000 Brand: Price: $ 26.35 |
Trim Sensor Wire | 1 | $ 26.35 | ||
| 13 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 14 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 16 | 09103-06307 Bolt (6x10)
SKU: 09103-06307 Weight: 0.250000 Brand: Price: $ 2.83 |
Bolt (6x10) | 1 | $ 2.83 | ||
| 17 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 1 | $ 1.97 | ||
| 18 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 19 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 20 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 22 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 23 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 24 | 43117-96J00 Trim Sender Cam
SKU: 43117-96J00 Weight: 0.100000 Brand: Price: $ 10.81 |
Trim Sender Cam | 1 | $ 10.81 | ||
| 25 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14 |
Bolt (5x12) | 2 | $ 2.14 | ||
| 26 | 43118-96J00 Trim Sender Cam Plate
SKU: 43118-96J00 Weight: 0.125000 Brand: Price: $ 6.29 |
Trim Sender Cam Plate | 1 | $ 6.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
