Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

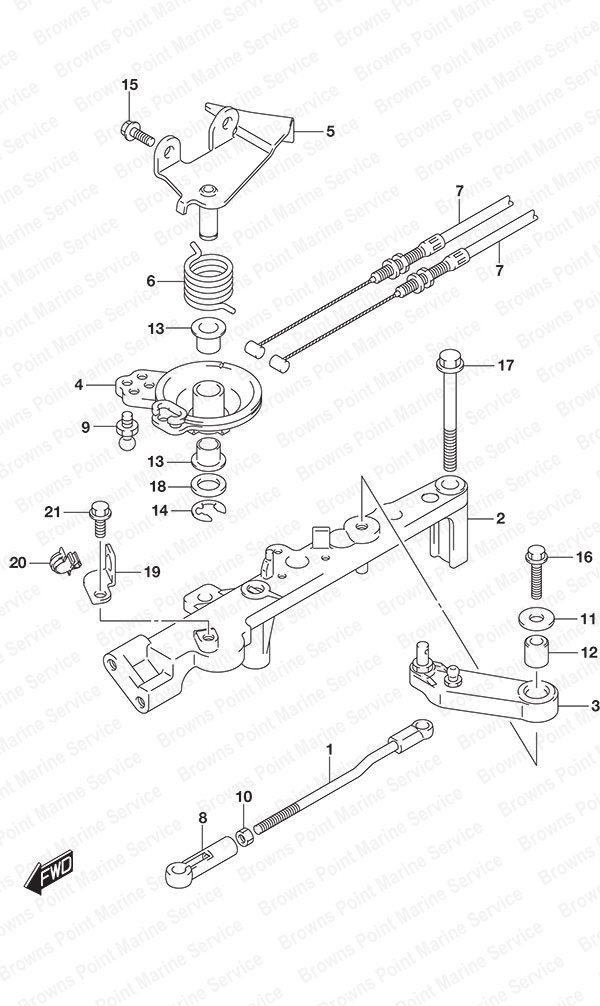

Fig. 164 - Throttle Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13510-96J00 Throttle Rod No. 1
SKU: 13510-96J00 Weight: 0.250000 Brand: Price: $ 24.19 |
Throttle Rod No. 1 | 1 | $ 24.19 | ||
| 2 | 19115-96J00 Throttle Lever Holder
SKU: 19115-96J00 Weight: 0.250000 Brand: Price: $ 108.29 |
Throttle Lever Holder | 1 | $ 108.29 | ||
| 3 | 19121-93J02 Throttle Control Lever No. 1
SKU: 19121-93J02 Weight: 0.250000 Brand: Price: $ 32.46 |
Throttle Control Lever No. 1 | 1 | $ 32.46 | ||
| 4 | 19148-96J00 Throttle Drum
SKU: 19148-96J00 Weight: 0.100000 Brand: Price: $ 60.43 |
Throttle Drum | 1 | $ 60.43 | ||
| 5 | 19184-96J00 Throttle Cable Bracket
SKU: 19184-96J00 Weight: 0.250000 Brand: Price: $ 19.81 |
Throttle Cable Bracket | 1 | $ 19.81 | ||
| 6 | 19185-96J01 Throttle Lever Spring
SKU: 19185-96J01 Weight: 0.100000 Brand: Price: $ 5.90 |
Throttle Lever Spring | 1 | $ 5.90 | ||
| 7 | 63610-96J00 Throttle Cable Assembly
SKU: 63610-96J00 Weight: 4.000000 Brand: Price: $ 39.87 |
Throttle Cable Assembly | 2 | $ 39.87 | ||
| 8 | 67463-95200 Throttle Rod Connector
SKU: 67463-95200 Weight: 0.060000 Brand: Price: $ 3.47 |
Throttle Rod Connector | 1 | $ 3.47 | ||
| 9 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | ||
| 10 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 11 | 09160-06066 Washer (6.5x20x1.6)
SKU: 09160-06066 Weight: 0.250000 Brand: Price: $ 1.91 |
Washer (6.5x20x1.6) | 1 | $ 1.91 | ||
| 12 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 13 | 09306-10001 Bushing
SKU: 09306-10001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 14 | 09383-08005 E Ring
SKU: 09383-08005 Weight: 0.100000 Brand: Price: $ 2.17 |
E Ring | 1 | $ 2.17 | ||
| 15 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 16 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 01550-08657 BOLT
SKU: 01550-08657 Weight: 0.100000 Brand: Price: $ 4.05 |
BOLT | 2 | $ 4.05 | ||
| 18 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 1 | $ 1.87 | ||
| 19 | 15198-96J01 Fuel Hose Clamp Bracket
SKU: 15198-96J01 Weight: 0.125000 Brand: Price: $ 4.39 |
Fuel Hose Clamp Bracket | 1 | $ 4.39 | ||
| 20 | 09403-16307 CLAMP
SKU: 09403-16307 Weight: 0.000000 Brand: Price: $ 2.20 |
CLAMP | 1 | $ 2.20 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
