Suzuki DF 200A Parts Listings - 2018
S/N 20003F-810001 to 20003F-81XXXX
S/N 20003Z-810001 to 20003Z-81XXXX

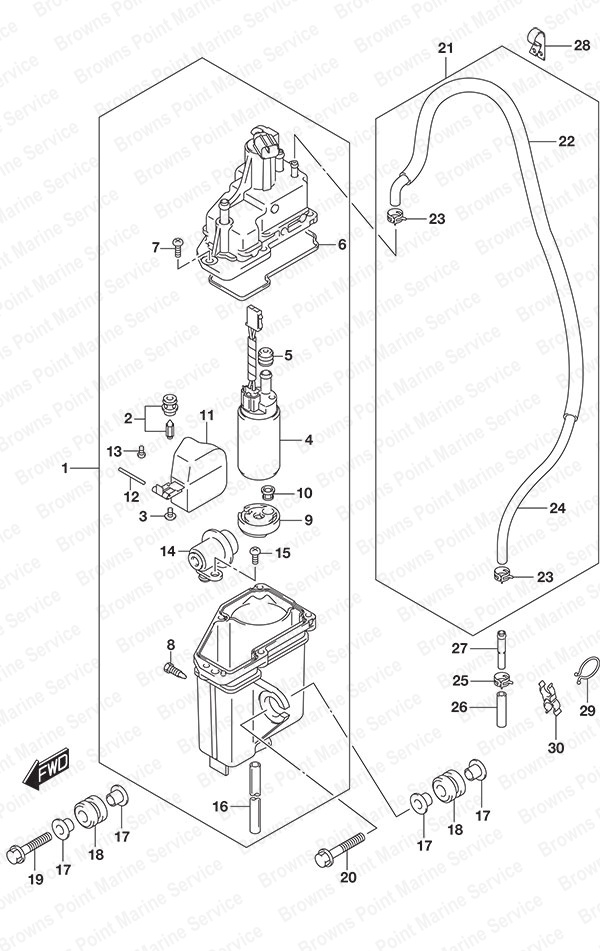

Fig. 143 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-96J12 Fuel Vapor Separator Assembly
SKU: 15600-96J12 Weight: 3.500000 Brand: Price: $ 728.11 |
Fuel Vapor Separator Assembly | 1 | $ 728.11 | ||
| 2 | 13370-96J10 Needle Valve
SKU: 13370-96J10 Weight: 0.060000 Brand: Price: $ 38.54 |
Needle Valve | 1 | $ 38.54 | ||
| 3 | 02142-0408B SCREW
SKU: 02142-0408B Weight: 0.060000 Brand: Price: $ 1.72 |
SCREW | 1 | $ 1.72 | ||
| 4 | 15200-96J00 Fuel Pump Assembly
SKU: 15200-96J00 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 5 | 15647-93J00 Fuel Pump Bushing
SKU: 15647-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Fuel Pump Bushing | 1 | $ 10.12 | ||
| 6 | 15626-96J00 Seal
SKU: 15626-96J00 Weight: 0.060000 Brand: Price: $ 14.26 |
Seal | 1 | $ 14.26 | ||
| 7 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 5 | $ 2.42 | ||
| 8 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | ||
| 9 | 15641-96J00 Fuel Pump Spacer
SKU: 15641-96J00 Weight: 0.060000 Brand: Price: $ 26.17 |
Fuel Pump Spacer | 1 | $ 26.17 | ||
| 10 | 15642-90J00 Fuel Pump Filter
SKU: 15642-90J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Fuel Pump Filter | 1 | $ 11.18 | ||
| 11 | 15650-96J00 Float
SKU: 15650-96J00 Weight: 0.120000 Brand: Price: $ 76.24 |
Float | 1 | $ 76.24 | ||
| 12 | 13254-01010 Float Pin
SKU: 13254-01010 Weight: 0.060000 Brand: Price: $ 3.82 |
Float Pin | 1 | $ 3.82 | ||
| 13 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 14 | 15760-93J01 Fuel Pressure Regulator
SKU: 15760-93J01 Weight: 0.160000 Brand: Price: $ 132.70 |
Fuel Pressure Regulator | 1 | $ 132.70 | ||
| 15 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.44 |
5 X 10 CROSS SC | 1 | $ 1.44 | ||
| 16 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 17 | 09169-08042 Washer
SKU: 09169-08042 Weight: 0.060000 Brand: Price: $ 5.86 |
Washer | 6 | $ 5.86 | ||
| 18 | 09320-12072 Cushion
SKU: 09320-12072 Weight: 0.060000 Brand: Price: $ 2.32 |
Cushion | 3 | $ 2.32 | ||
| 19 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 20 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 2 | $ 3.48 | ||
| 21 | 15660-96J31 Evaporation Hose
SKU: 15660-96J31 Weight: 0.250000 Brand: Price: $ 23.96 |
Evaporation Hose | 1 | $ 23.96 | ||
| 22 | 18498-99EC0 Protector (L:760) (NLA)
SKU: 18498-99EC0 Weight: 0.100000 Brand: Price: $ 5.14 |
Protector (L:760) (NLA) | 1 | $ 5.14 | ||
| 23 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 24 | 09352-50003-00A Hose (5x8.2x1000)
SKU: 09352-50003-00A Weight: 0.250000 Brand: Price: $ 66.13 |
Hose (5x8.2x1000) | 1 | $ 66.13 | VS to Union | |
| 25 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 26 | 09352-50003-045 Hose (5x8.2x45)
SKU: 09352-50003-045 Weight: 0.250000 Brand: Price: $ 9.38 |
Hose (5x8.2x45) | 1 | $ 9.38 | Union to Out | |
| 27 | 09364-06010 Union
SKU: 09364-06010 Weight: 0.100000 Brand: Price: $ 5.90 |
Union | 1 | $ 5.90 | ||
| 28 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 29 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 30 | 09408-00078 Clamp
SKU: 09408-00078 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
