Suzuki DF 30A Parts Listings - 2018
S/N 03003F-810001 to 03003F-81XXXX

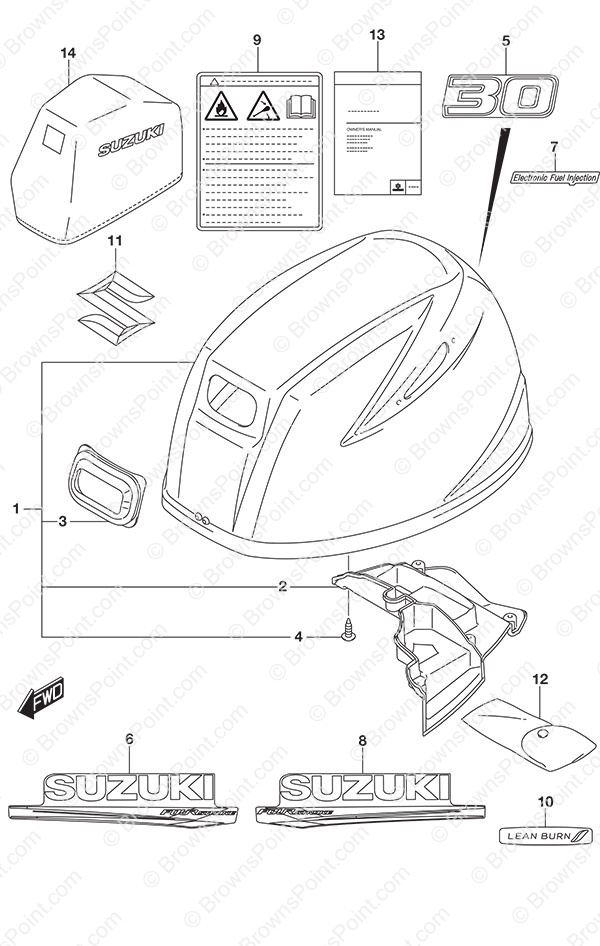

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61400-94L00-YAY Engine Cover Assembly
SKU: 61400-94L00-YAY Weight: 10.000000 Brand: Price: $ 419.10 |
Engine Cover Assembly | 1 | $ 419.10 | Black | |
| 1-2 | 61400-94L00-Y5S Engine Cover Assembly
SKU: 61400-94L00-Y5S Weight: 10.000000 Brand: Price: $ 431.82 |
Engine Cover Assembly | 1 | $ 431.82 | White | |
| 2 | 61433-94L00 Air Intake Inner Cover
SKU: 61433-94L00 Weight: 1.000000 Brand: Price: $ 25.17 |
Air Intake Inner Cover | 1 | $ 25.17 | ||
| 3 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 25.25 |
Recoil Starter Seal | 1 | $ 25.25 | ||
| 4 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 6 | $ 1.70 | ||
| 5-1 | 61435-94L30-YAY Rear Emblem Mark (30)
SKU: 61435-94L30-YAY Weight: 0.060000 Brand: Price: $ 2.73 |
Rear Emblem Mark (30) | 1 | $ 2.73 | Black | |
| 5-2 | 61435-94L30-Y5S Rear Emblem Mark (30)
SKU: 61435-94L30-Y5S Weight: 0.060000 Brand: Price: $ 2.72 |
Rear Emblem Mark (30) | 1 | $ 2.72 | White | |
| 6-1 | 61443-94L10-YAY Starboard Engine Cover Stripe
SKU: 61443-94L10-YAY Weight: 0.250000 Brand: Price: $ 15.84 |
Starboard Engine Cover Stripe | 1 | $ 15.84 | Black | |
| 6-2 | 61443-94L10-Y5S Starboard Engine Cover Stripe
SKU: 61443-94L10-Y5S Weight: 0.250000 Brand: Price: $ 15.84 |
Starboard Engine Cover Stripe | 1 | $ 15.84 | White | |
| 7-1 | 61446-89L10-YAY EFI Decal
SKU: 61446-89L10-YAY Weight: 0.060000 Brand: Price: $ 1.78 |
EFI Decal | 1 | $ 1.78 | Black | |
| 7-2 | 61446-89L10-Y5S EFI Decal
SKU: 61446-89L10-Y5S Weight: 0.060000 Brand: Price: $ 1.84 |
EFI Decal | 1 | $ 1.84 | White | |
| 8-1 | 61453-94L10-YAY Port Engine Cover Stripe
SKU: 61453-94L10-YAY Weight: 0.250000 Brand: Price: $ 15.84 |
Port Engine Cover Stripe | 1 | $ 15.84 | Black | |
| 8-2 | 61453-94L10-Y5S Port Engine Cover Stripe
SKU: 61453-94L10-Y5S Weight: 0.250000 Brand: Price: $ 15.84 |
Port Engine Cover Stripe | 1 | $ 15.84 | White | |
| 9 | 61458-89L30 Engine Cover Label
SKU: 61458-89L30 Weight: 0.125000 Brand: Price: $ 3.54 |
Engine Cover Label | 1 | $ 3.54 | ||
| 10 | 61471-89L00 Lean Burn Decal
SKU: 61471-89L00 Weight: 0.125000 Brand: Price: $ 9.72 |
Lean Burn Decal | 1 | $ 9.72 | ||
| 11 | 77811-58J10-0PG Chrome S Emblem
SKU: 77811-58J10-0PG Weight: 0.250000 Brand: Price: $ 13.98 |
Chrome S Emblem | 1 | $ 13.98 | ||
| 12 | 59800-94L10 Tool Assembly
SKU: 59800-94L10 Weight: 1.000000 Brand: Price: $ 37.47 |
Tool Assembly | 1 | $ 37.47 | ||
| 13 | 99011-94L40-03B Owners Manual DF25A/DF30A - 2018
SKU: 99011-94L40-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF25A/DF30A - 2018 | 1 | $ 20.00 | ||
| 14 | 990C0-65023 DF25A / DF30A Genuine Engine Cover
SKU: 990C0-65023 Weight: 0.000000 Brand: Price: $ 93.33 |
DF25A / DF30A Genuine Engine Cover | 1 | $ 93.33 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
