Suzuki DF 30A Parts Listings - 2018
S/N 03003F-810001 to 03003F-81XXXX

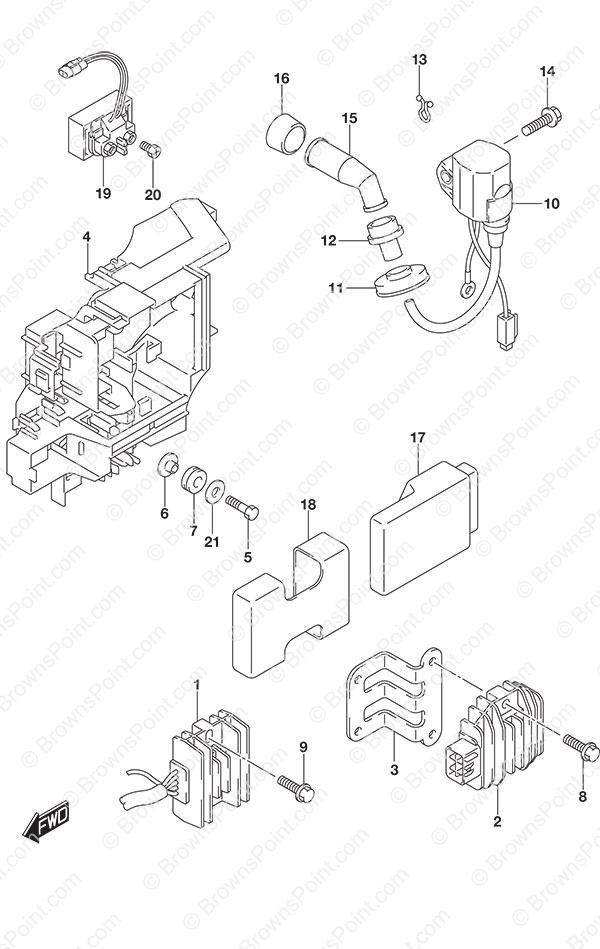

Fig. 310 - Rectifier/Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94L00 Rectifier & Regulator Assembly
SKU: 32800-94L00 Weight: 0.500000 Brand: Price: $ 153.99 |
Rectifier & Regulator Assembly | 1 | $ 153.99 | ||
| 2 | 32800-88L01 Rectifier/Regulator Assembly
SKU: 32800-88L01 Weight: 1.000000 Brand: Price: $ 159.97 |
Rectifier/Regulator Assembly | 1 | $ 159.97 | ||
| 3 | 32815-94L00 Rectifier Bracket
SKU: 32815-94L00 Weight: 0.250000 Brand: Price: $ 21.75 |
Rectifier Bracket | 1 | $ 21.75 | ||
| 4 | 32890-94L00 Electric Parts Holder
SKU: 32890-94L00 Weight: 1.000000 Brand: Price: $ 22.56 |
Electric Parts Holder | 1 | $ 22.56 | ||
| 5 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 7 | 09320-08051 Cushion (NLA)
SKU: 09320-08051 Weight: 0.060000 Brand: Price: $ 0.00 |
Cushion (NLA) | 3 | $ 0.00 | ||
| 8 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 | ||
| 9 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 33410-94L00 Ignition Coil
SKU: 33410-94L00 Weight: 0.500000 Brand: Price: $ 80.21 |
Ignition Coil | 3 | $ 80.21 | ||
| 11 | 33446-94L00 High Tension Cord Protector
SKU: 33446-94L00 Weight: 0.200000 Brand: Price: $ 3.29 |
High Tension Cord Protector | 3 | $ 3.29 | ||
| 12 | 33542-16H00 High Tension Cord Seal
SKU: 33542-16H00 Weight: 0.200000 Brand: Price: $ 3.89 |
High Tension Cord Seal | 3 | $ 3.89 | ||
| 13 | 09408-00020 Clamp (NLA)
SKU: 09408-00020 Weight: 0.100000 Brand: Price: $ 0.94 |
Clamp (NLA) | 2 | $ 0.94 | ||
| 14 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 15 | 33510-16H10 Spark Plug Cap Assembly
SKU: 33510-16H10 Weight: 0.200000 Brand: Price: $ 29.49 |
Spark Plug Cap Assembly | 3 | $ 29.49 | ||
| 16 | 33541-16H00 Spark Plug Seal
SKU: 33541-16H00 Weight: 0.200000 Brand: Price: $ 2.88 |
Spark Plug Seal | 3 | $ 2.88 | ||
| 17 | 33920-94L70 Engine Control Unit
SKU: 33920-94L70 Weight: 1.000000 Brand: Price: $ 618.80 |
Engine Control Unit | 1 | $ 618.80 | ||
| 18 | 33925-94L00 Engine Control Unit Cushion
SKU: 33925-94L00 Weight: 0.250000 Brand: Price: $ 8.95 |
Engine Control Unit Cushion | 1 | $ 8.95 | ||
| 19 | 31800-94L01 Starter Motor Relay Assembly
SKU: 31800-94L01 Weight: 0.500000 Brand: Price: $ 69.88 |
Starter Motor Relay Assembly | 1 | $ 69.88 | ||
| 20 | 09128-06013 Screw (6x8)
SKU: 09128-06013 Weight: 0.060000 Brand: Price: $ 1.24 |
Screw (6x8) | 2 | $ 1.24 | ||
| 21 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 3 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
