Suzuki DF 25A Parts Listings - 2018
S/N 02504F-810001 to 02504F-81XXXX

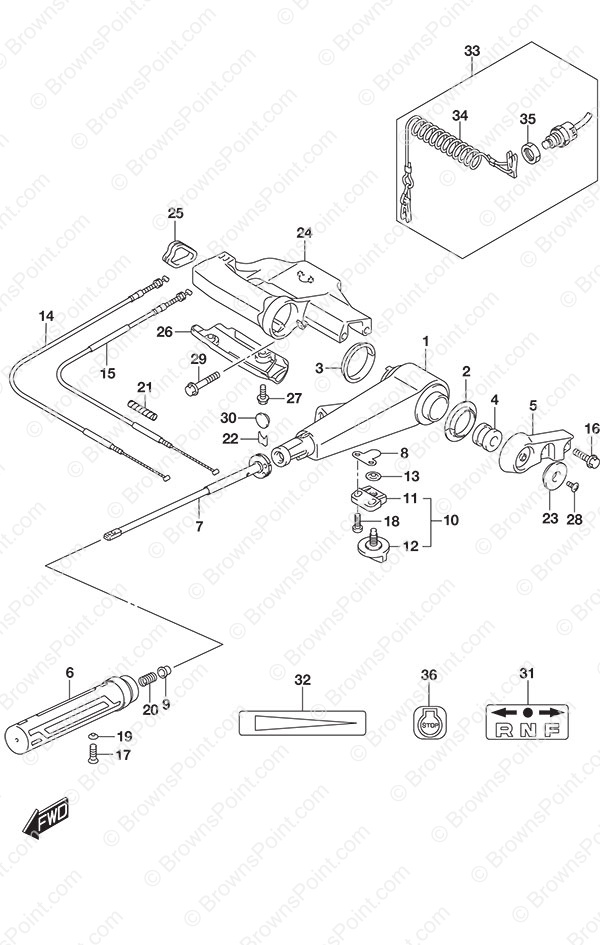

Fig. 444B - Tiller Handle w/Power Tilt

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 63111-89L01-YAY Tiller Handle 1 $ 85.67
Black
1-2 63111-89L01-Y5S Tiller Handle 1 $ 89.00
White
2 63115-99J10 Tiller Handle Bushing No 1 1 $ 13.23
3 63115-99J00 Tiller Handle Bushing No 2 1 $ 18.34
4 63116-99J00 Friction Rubber 1 $ 16.44
5-1 63121-99J00-YAY Tiller Handle Cover 1 $ 30.06
Black
5-2 63121-99J00-Y5S Tiller Handle Cover 1 $ 40.32
White
6 63210-94L01 Handle Grip 1 $ 45.09
7 63220-94L00 Handle Rod 1 $ 15.47
8 63225-98601 Throttle Adjust Plate 1 $ 4.05
9 63225-93200 Handle Rod Bushing 1 $ 4.05
10 63240-94J20 Handle Grip Adjuster Set 1 $ 9.43
11 63241-986B0 Handle Rod Support 1 $ 7.01
12 63244-94J00 Throttle Adjust Knob 1 $ 8.79
13 09148-06008 Nut 1 $ 1.30
14 63610-94L00 Throttle Cable Assembly No 1 1 $ 15.19
15 63650-94L00 Throttle Cable Assembly No 2 1 $ 17.45
16 09116-08151 Bolt (8x30) 2 $ 2.18
17 09126-06015 Screw (6x23) 1 $ 2.62
18 09136-05041 Screw (5x20) 2 $ 1.97
19 09163-06001 Lock Washer (6.4x12x0.5) 1 $ 1.49
20 09440-12027 Spring 1 $ 1.39
21 33833-91J00 Tube (6x8x250) 1 $ 7.13
22 63114-99J01 Warning Indicator Plate 1 $ 10.88
23 63122-99J00 Handle Cover Protector 1 $ 14.76
24-1 63131-94L00-YAY Tiller Handle Bracket 1 $ 103.64
Black
24-2 63131-94L00-Y5S Tiller Handle Bracket 1 $ 107.67
White
25 63133-89L00 Tiller Handle Bracket Grommet 1 $ 12.04
26 63134-94L00 Tiller Handle Bracket Cover 1 $ 6.35
27 09136-05041 Screw (5x20) 2 $ 1.97
28 09125-05042 Screw (5x10) 1 $ 1.99
29 09116-08155 Bolt (8x45) 2 $ 5.19
30 09250-12006 Cap 1 $ 2.00

Not Available

31-1 21131-94J00-YAY Clutch Shift Mark 1 $ 1.46
Black
31-2 21131-94J00-Y5S Clutch Shift Mark 1 $ 1.51
White
32 63215-93110 Handle Grip Mark 1 $ 3.19
33 37830-94J11 Emergency Switch Assembly 1 $ 55.90
34 37823-97J00 Stop Switch Lanyard 1 $ 28.07
35 37826-97J01 Nut 1 $ 1.97
36-1 37835-91J00-YAY Stop Label 1 $ 1.20
Black
36-2 37835-91J00-Y5S Stop Label 1 $ 1.27
White

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
