Suzuki DF 25A Parts Listings - 2018
S/N 02504F-810001 to 02504F-81XXXX

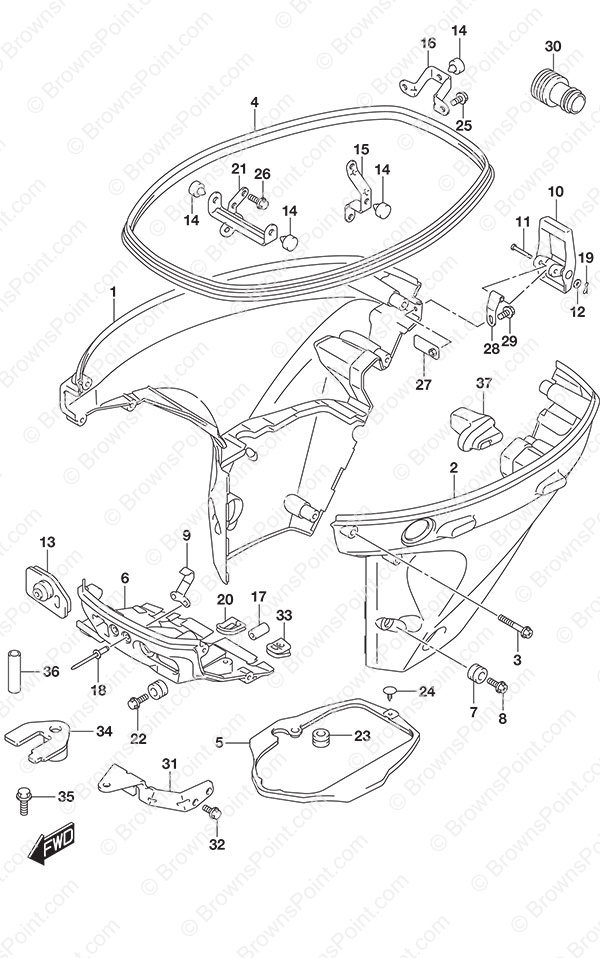

Fig. 410B - Side Cover Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61810-94L10-YAY Starboard Side Cover
SKU: 61810-94L10-YAY Weight: 5.000000 Brand: Price: $ 280.55 |
Starboard Side Cover | 1 | $ 280.55 | Black | |
| 1-2 | 61810-94L10-Y5S Starboard Side Cover
SKU: 61810-94L10-Y5S Weight: 5.000000 Brand: Price: $ 285.85 |
Starboard Side Cover | 1 | $ 285.85 | White | |
| 2-1 | 61820-94L20-YAY Port Side Cover
SKU: 61820-94L20-YAY Weight: 5.000000 Brand: Price: $ 268.37 |
Port Side Cover | 1 | $ 268.37 | Black | |
| 2-2 | 61820-94L20-Y5S Port Side Cover
SKU: 61820-94L20-Y5S Weight: 5.000000 Brand: Price: $ 276.52 |
Port Side Cover | 1 | $ 276.52 | White | |
| 3 | 09136-06169 Screw (6x35)
SKU: 09136-06169 Weight: 0.060000 Brand: Price: $ 3.06 |
Screw (6x35) | 8 | $ 3.06 | ||
| 4 | 61112-94L10 Side Cover Rubber
SKU: 61112-94L10 Weight: 1.000000 Brand: Price: $ 76.47 |
Side Cover Rubber | 1 | $ 76.47 | ||
| 5 | 61134-94L00 Side Cover Seal
SKU: 61134-94L00 Weight: 0.500000 Brand: Price: $ 31.48 |
Side Cover Seal | 1 | $ 31.48 | ||
| 6-1 | 61830-94L00-YAY Front Panel
SKU: 61830-94L00-YAY Weight: 0.500000 Brand: Price: $ 155.62 |
Front Panel | 1 | $ 155.62 | Black | |
| 6-2 | 61830-94L00-Y5S Front Panel
SKU: 61830-94L00-Y5S Weight: 0.500000 Brand: Price: $ 164.70 |
Front Panel | 1 | $ 164.70 | White | |
| 7 | 09320-11017 Cushion
SKU: 09320-11017 Weight: 0.125000 Brand: Price: $ 5.08 |
Cushion | 2 | $ 5.08 | ||
| 8 | 09136-06168 Screw (6x17)
SKU: 09136-06168 Weight: 0.060000 Brand: Price: $ 2.68 |
Screw (6x17) | 2 | $ 2.68 | ||
| 9 | 61412-89L00 Front Panel Hook
SKU: 61412-89L00 Weight: 0.250000 Brand: Price: $ 7.81 |
Front Panel Hook | 1 | $ 7.81 | ||
| 10 | 61610-90L00 Fastener
SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 41.97 |
Fastener | 1 | $ 41.97 | ||
| 11 | 61616-93EL0 Lever Pin
SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.82 |
Lever Pin | 1 | $ 7.82 | ||
| 12 | 09161-04012 Washer (4.2x11x1)
SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.56 |
Washer (4.2x11x1) | 1 | $ 1.56 | ||
| 13 | 61124-94L10 Remocon Cable Grommet
SKU: 61124-94L10 Weight: 0.200000 Brand: Price: $ 40.85 |
Remocon Cable Grommet | 1 | $ 40.85 | ||
| 14 | 61151-91J11 Cushion
SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.79 |
Cushion | 4 | $ 3.79 | ||
| 15 | 61827-94L00 Side Cover Holder
SKU: 61827-94L00 Weight: 0.200000 Brand: Price: $ 9.14 |
Side Cover Holder | 1 | $ 9.14 | ||
| 16 | 61829-94L00 Side Cover Rear Holder
SKU: 61829-94L00 Weight: 0.200000 Brand: Price: $ 12.48 |
Side Cover Rear Holder | 1 | $ 12.48 | ||
| 17 | 09251-09007 Cushion
SKU: 09251-09007 Weight: 0.250000 Brand: Price: $ 4.28 |
Cushion | 1 | $ 4.28 | ||
| 18 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.71 |
Rivet | 2 | $ 1.71 | ||
| 19 | 09385-04003 Snap Pin
SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.55 |
Snap Pin | 1 | $ 2.55 | ||
| 20 | 23131-94L00 Clutch Rod Boot
SKU: 23131-94L00 Weight: 0.200000 Brand: Price: $ 7.38 |
Clutch Rod Boot | 1 | $ 7.38 | ||
| 21 | 61841-94L00 Side Cover Holder
SKU: 61841-94L00 Weight: 0.200000 Brand: Price: $ 25.46 |
Side Cover Holder | 1 | $ 25.46 | ||
| 22 | 09136-06168 Screw (6x17)
SKU: 09136-06168 Weight: 0.060000 Brand: Price: $ 2.68 |
Screw (6x17) | 1 | $ 2.68 | ||
| 23 | 09320-11017 Cushion
SKU: 09320-11017 Weight: 0.125000 Brand: Price: $ 5.08 |
Cushion | 1 | $ 5.08 | ||
| 24 | 09409-05302-5PK Pin
SKU: 09409-05302-5PK Weight: 0.060000 Brand: Price: $ 1.70 |
Pin | 1 | $ 1.70 | ||
| 25 | 09126-06026 Screw (6x23)
SKU: 09126-06026 Weight: 0.060000 Brand: Price: $ 1.98 |
Screw (6x23) | 2 | $ 1.98 | ||
| 26 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.77 |
BOLT | 1 | $ 1.77 | ||
| 27 | 61620-94L00 Fastener Holder Plate
SKU: 61620-94L00 Weight: 0.200000 Brand: Price: $ 2.48 |
Fastener Holder Plate | 1 | $ 2.48 | ||
| 28 | 61642-90L00 Fastener Lever Holder
SKU: 61642-90L00 Weight: 0.200000 Brand: Price: $ 5.61 |
Fastener Lever Holder | 1 | $ 5.61 | ||
| 29 | 09116-06223 Bolt (6x12)
SKU: 09116-06223 Weight: 0.200000 Brand: Price: $ 1.50 |
Bolt (6x12) | 1 | $ 1.50 | ||
| 30 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.42 |
Water Flush Connector | 1 | $ 10.42 | ||
| 31 | 67341-94L00 Remocon Cable Holder
SKU: 67341-94L00 Weight: 0.200000 Brand: Price: $ 21.33 |
Remocon Cable Holder | 1 | $ 21.33 | ||
| 32 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.67 |
BOLT,HARNESS B | 2 | $ 1.67 | ||
| 33 | 36656-94L00 PTT Cable Grommet
SKU: 36656-94L00 Weight: 0.200000 Brand: Price: $ 6.29 |
PTT Cable Grommet | 1 | $ 6.29 | ||
| 34 | 67343-94L00 Remocon Cable Stopper
SKU: 67343-94L00 Weight: 0.200000 Brand: Price: $ 12.32 |
Remocon Cable Stopper | 1 | $ 12.32 | ||
| 35 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.68 |
Bolt (6x16) | 1 | $ 2.68 | ||
| 36 | 09352-70104-600 Hose (7x10.2x600)
SKU: 09352-70104-600 Weight: 0.060000 Brand: Price: $ 6.02 |
Hose (7x10.2x600) | 2 | $ 6.02 | L:600->14 | |
| 37 | 61151-94L00 Side Cover Cushion
SKU: 61151-94L00 Weight: 0.060000 Brand: Price: $ 5.33 |
Side Cover Cushion | 1 | $ 5.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
