Suzuki DF 25A Parts Listings - 2018
S/N 02504F-810001 to 02504F-81XXXX

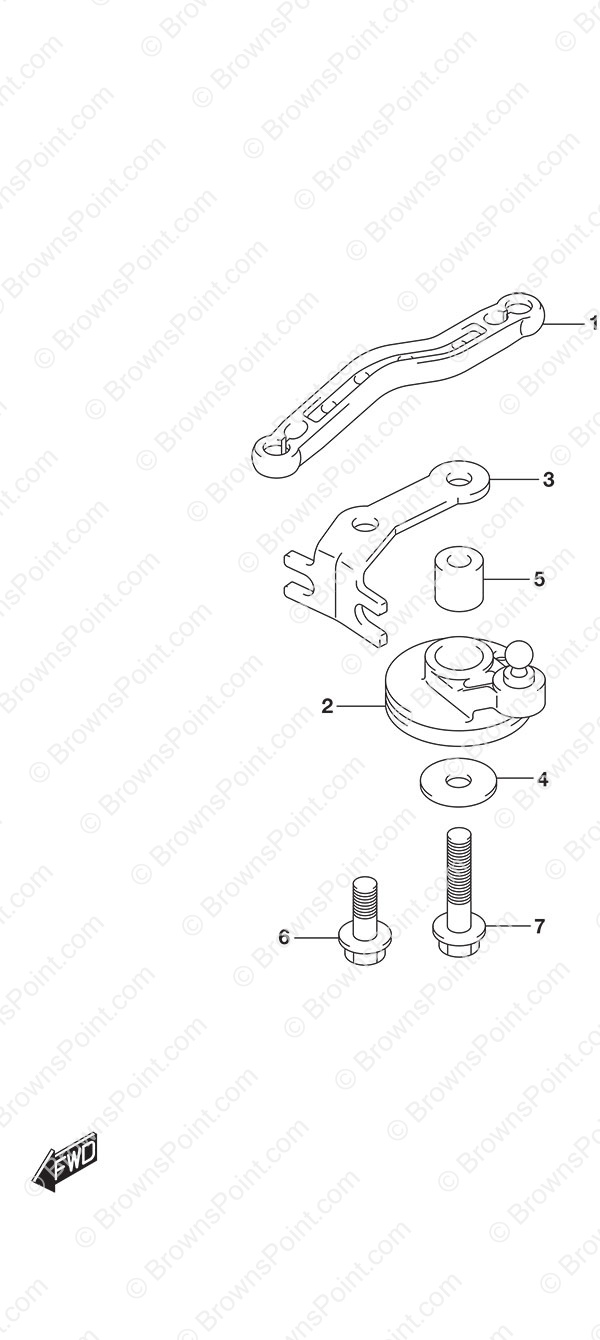

Fig. 166A - Throttle Control Non-Remote Control

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 19137-94L00 Throttle Rod No 2 1 $ 6.66
2 19140-94L11 Throttle Control Drum 1 $ 16.44
3 19184-94L00 Throttle Cable Holder 1 $ 9.74
4 09160-06046 Washer (6.5x20x1.5) 1 $ 1.99
5 09180-06230 Spacer (6.2x12.6x12.5) 1 $ 6.41
6 01550-0616C BOLT 1 $ 1.73
7 01550-0630C BOLT 1 $ 2.24

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
