Suzuki DF 20A Parts Listings - 2018
S/N 02002F-810001 to 02002F-81XXXX

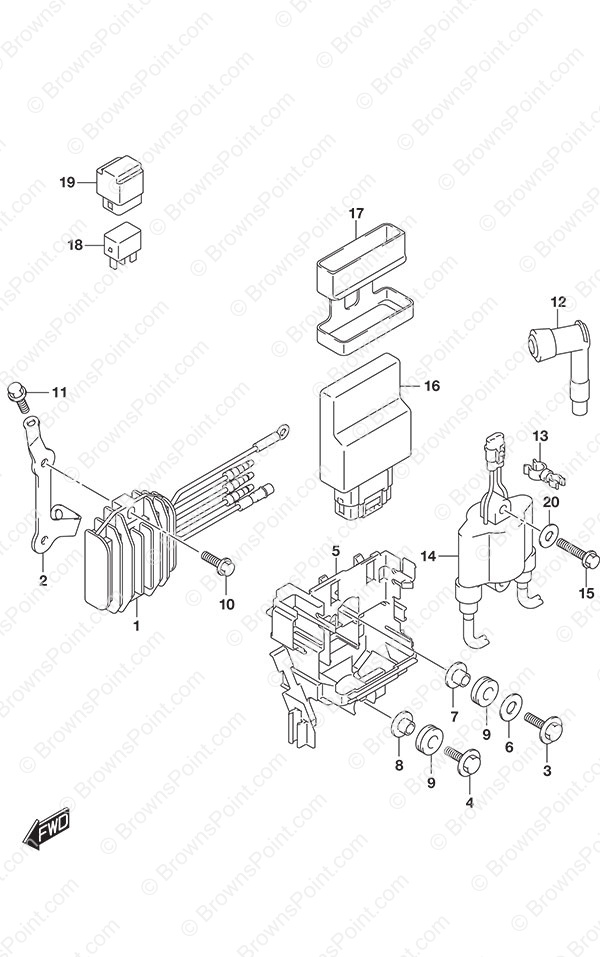

Fig. 310B - Rectifier/Ignition Coil Remote Control Tiller Handle w/Power Tiltectifier/Ignition Coil Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-89L02 Rectifier/Regulator Assembly
SKU: 32800-89L02 Weight: 0.500000 Brand: Price: $ 157.03 |
Rectifier/Regulator Assembly | 1 | $ 157.03 | ||
| 2 | 32815-89L00 Rectifier Bracket
SKU: 32815-89L00 Weight: 0.250000 Brand: Price: $ 19.48 |
Rectifier Bracket | 1 | $ 19.48 | ||
| 3 | 09116-06517 Bolt (6x25)
SKU: 09116-06517 Weight: 0.060000 Brand: Price: $ 2.75 |
Bolt (6x25) | 1 | $ 2.75 | ||
| 4 | 09116-06196 Bolt (6x20)
SKU: 09116-06196 Weight: 0.250000 Brand: Price: $ 1.91 |
Bolt (6x20) | 2 | $ 1.91 | ||
| 5 | 32890-89L10 HOLDER,ELECTRIC
SKU: 32890-89L10 Weight: 0.000000 Brand: Price: $ 7.83 |
HOLDER,ELECTRIC | 1 | $ 7.83 | ||
| 6 | 09320-08056 Cushion
SKU: 09320-08056 Weight: 0.060000 Brand: Price: $ 2.34 |
Cushion | 1 | $ 2.34 | ||
| 7 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 1 | $ 2.52 | ||
| 9 | 09320-08066 Cushion
SKU: 09320-08066 Weight: 0.250000 Brand: Price: $ 8.39 |
Cushion | 2 | $ 8.39 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 33500-07H00 Spark Plug Cap
SKU: 33500-07H00 Weight: 0.080000 Brand: Price: $ 44.59 |
Spark Plug Cap | 2 | $ 44.59 | ||
| 13 | 09408-00159 Clamp (NLA)
SKU: 09408-00159 Weight: 0.250000 Brand: Price: $ 2.31 |
Clamp (NLA) | 2 | $ 2.31 | ||
| 14 | 33410-89L11 Ignition Coil
SKU: 33410-89L11 Weight: 0.500000 Brand: Price: $ 69.46 |
Ignition Coil | 1 | $ 69.46 | ||
| 15 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
| 16 | 33930-89L20 Engine Control Unit
SKU: 33930-89L20 Weight: 1.000000 Brand: Price: $ 487.52 |
Engine Control Unit | 1 | $ 487.52 | ||
| 17 | 33925-89L00 Engine Control Unit Cushion
SKU: 33925-89L00 Weight: 0.250000 Brand: Price: $ 12.41 |
Engine Control Unit Cushion | 1 | $ 12.41 | ||
| 18 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 19 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
