Suzuki DF 15A Parts Listings - 2018
S/N 01504F-810001 to 01504F-81XXXX

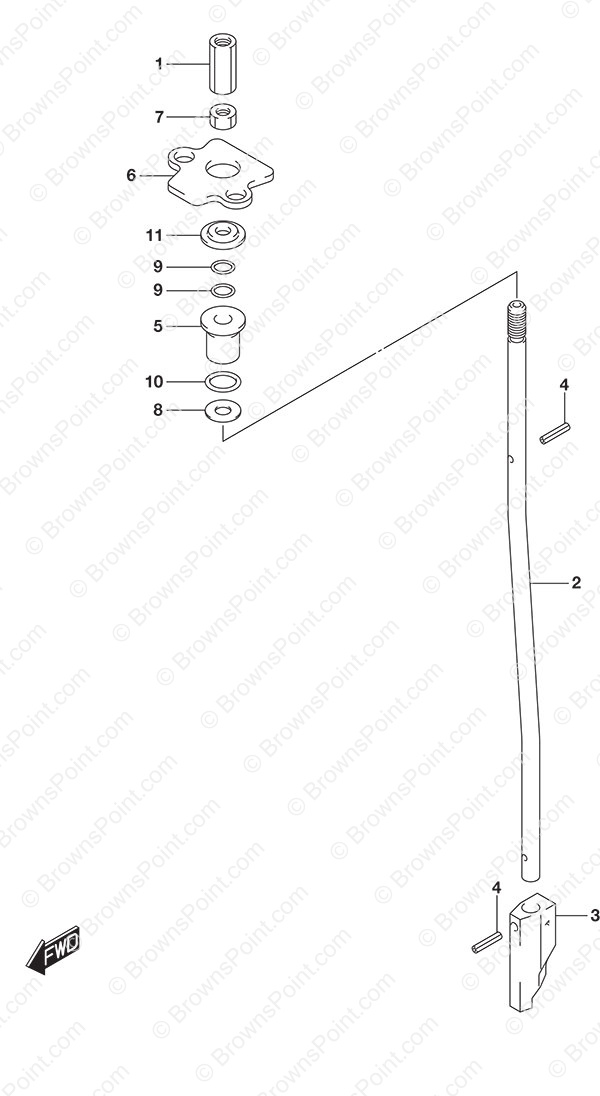

Fig. 210 - Shift Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 23311-95J00 Clutch Rod Connector
SKU: 23311-95J00 Weight: 0.060000 Brand: Price: $ 7.09 |
Clutch Rod Connector | 1 | $ 7.09 | ||
| 2-1 | 25111-99J01 Shift Rod (S & L)
SKU: 25111-99J01 Weight: 0.500000 Brand: Price: $ 17.42 |
Shift Rod (S & L) | 1 | $ 17.42 | w/Transom (S) w/Transom (L) | |
| 2-2 | 25111-99J10 Shift Rod (X)
SKU: 25111-99J10 Weight: 0.500000 Brand: Price: $ 20.25 |
Shift Rod (X) | 1 | $ 20.25 | w/Transom (X) | |
| 3 | 25311-99J00 Shift Cam
SKU: 25311-99J00 Weight: 0.250000 Brand: Price: $ 25.11 |
Shift Cam | 1 | $ 25.11 | ||
| 4 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 2 | $ 0.92 | ||
| 5 | 25211-99JL0 Shift Rod Guide
SKU: 25211-99JL0 Weight: 0.125000 Brand: Price: $ 11.31 |
Shift Rod Guide | 1 | $ 11.31 | ||
| 6 | 25215-99J00 Shift Rod Guide Stopper
SKU: 25215-99J00 Weight: 0.250000 Brand: Price: $ 9.82 |
Shift Rod Guide Stopper | 1 | $ 9.82 | ||
| 7 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 8 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 9 | 09280-06012 O-Ring
SKU: 09280-06012 Weight: 0.062500 Brand: Price: $ 2.18 |
O-Ring | 2 | $ 2.18 | ||
| 10 | 09280-09012 O-Ring
SKU: 09280-09012 Weight: 0.062500 Brand: Price: $ 2.78 |
O-Ring | 1 | $ 2.78 | ||
| 11 | 09289-06L02 Dust Seal (5x17x3.5)
SKU: 09289-06L02 Weight: 0.125000 Brand: Price: $ 9.14 |
Dust Seal (5x17x3.5) | 1 | $ 9.14 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
