Suzuki DF 9.9B Parts Listings - 2018
S/N 00995F-810001 to 00995F-81XXXX

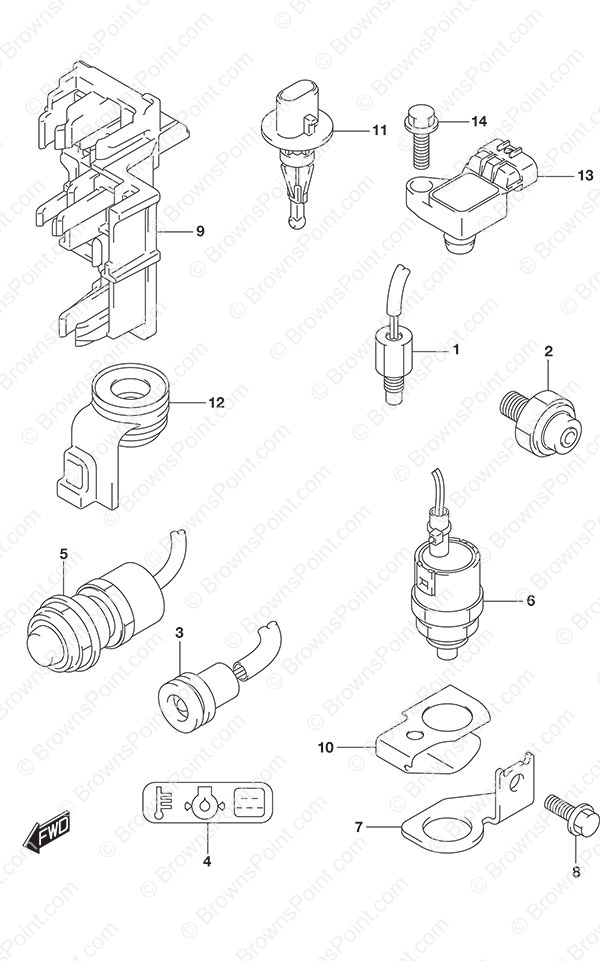

Fig. 334C - Sensor/Switch Tiller Handle w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13640-32G20 Engine Temp Sensor
SKU: 13640-32G20 Weight: 0.250000 Brand: Price: $ 57.70 |
Engine Temp Sensor | 1 | $ 57.70 | ||
| 2 | 37820-89L00 Oil Pressure Switch Assembly
SKU: 37820-89L00 Weight: 0.250000 Brand: Price: $ 20.96 |
Oil Pressure Switch Assembly | 1 | $ 20.96 | ||
| 3 | 36360-99J10 Oil Pressure Indicator
SKU: 36360-99J10 Weight: 0.250000 Brand: Price: $ 40.01 |
Oil Pressure Indicator | 1 | $ 40.01 | ||
| 4 | 36367-89L00-YAY Warning Label (Black)
SKU: 36367-89L00-YAY Weight: 0.060000 Brand: Price: $ 1.27 |
Warning Label (Black) | 1 | $ 1.27 | ||
| 5 | 37161-89L02 Starter Motor Switch Assembly
SKU: 37161-89L02 Weight: 0.250000 Brand: Price: $ 27.20 |
Starter Motor Switch Assembly | 1 | $ 27.20 | ||
| 6 | 37721-89L00 Neutral Switch Assembly
SKU: 37721-89L00 Weight: 0.250000 Brand: Price: $ 48.84 |
Neutral Switch Assembly | 1 | $ 48.84 | ||
| 7 | 37726-89L00 Neutral Switch Bracket (NLA)
SKU: 37726-89L00 Weight: 0.250000 Brand: Price: $ 5.01 |
Neutral Switch Bracket (NLA) | 1 | $ 5.01 | ||
| 8 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 9 | 36616-89L20 Connector Holder
SKU: 36616-89L20 Weight: 0.250000 Brand: Price: $ 10.80 |
Connector Holder | 1 | $ 10.80 | ||
| 10 | 37725-89L01 Neutral Switch Actuator
SKU: 37725-89L01 Weight: 0.250000 Brand: Price: $ 6.21 |
Neutral Switch Actuator | 1 | $ 6.21 | ||
| 11 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 12 | 13655-89L10 Inlet Air Temp Sensor Grommet
SKU: 13655-89L10 Weight: 0.125000 Brand: Price: $ 6.10 |
Inlet Air Temp Sensor Grommet | 1 | $ 6.10 | ||
| 13 | 18590-58M00 MAP Sensor
SKU: 18590-58M00 Weight: 0.250000 Brand: Price: $ 228.67 |
MAP Sensor | 1 | $ 228.67 | ||
| 14 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 1 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
