Suzuki DF 9.9B Parts Listings - 2018
S/N 00995F-810001 to 00995F-81XXXX

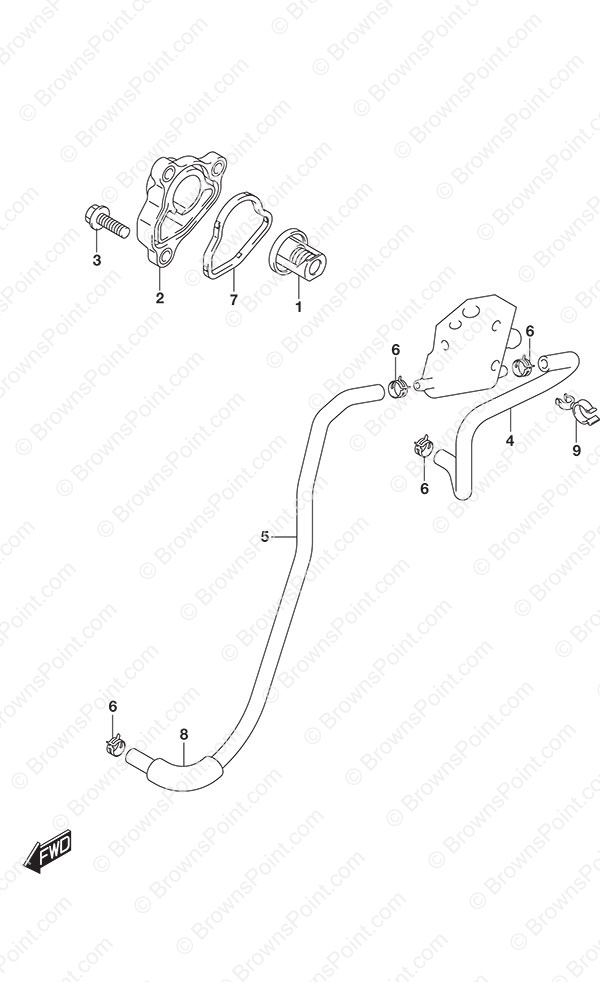

Fig. 162 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17670-91J02 Thermostat (50c)
SKU: 17670-91J02 Weight: 0.125000 Brand: Price: $ 38.22 |
Thermostat (50c) | 1 | $ 38.22 | ||
| 2 | 17680-89L00 Thermostat Cover
SKU: 17680-89L00 Weight: 0.250000 Brand: Price: $ 28.37 |
Thermostat Cover | 1 | $ 28.37 | ||
| 3 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 3 | $ 1.68 | ||
| 4 | 17712-89L12 Water Hose
SKU: 17712-89L12 Weight: 0.060000 Brand: Price: $ 4.49 |
Water Hose | 1 | $ 4.49 | Cooler to Housing | |
| 5 | 17712-89L03 Water Hose
SKU: 17712-89L03 Weight: 0.200000 Brand: Price: $ 5.93 |
Water Hose | 1 | $ 5.93 | Housing to Cooler | |
| 6 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 7 | 17685-89L00 Thermostat Cover Seal
SKU: 17685-89L00 Weight: 0.060000 Brand: Price: $ 2.96 |
Thermostat Cover Seal | 1 | $ 2.96 | ||
| 8 | 18498-94J20 Hose Protector (L:320) (NLA)
SKU: 18498-94J20 Weight: 0.100000 Brand: Price: $ 5.47 |
Hose Protector (L:320) (NLA) | 1 | $ 5.47 | L:320->50 | |
| 9 | 09408-00070 Clamp (NLA)
SKU: 09408-00070 Weight: 0.100000 Brand: Price: $ 1.68 |
Clamp (NLA) | 1 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
