Suzuki DF 115A Parts Listings - 2018
S/N 11504F-810001 to 11504F-81XXXX

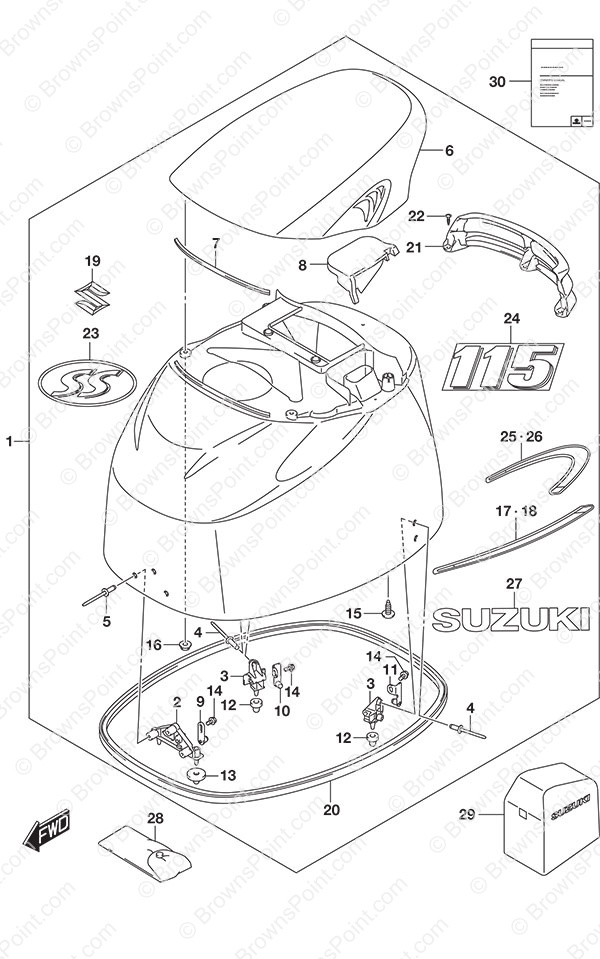

Fig. 420B - Engine Cover SS Model
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61401-90833-YKV COVER SET,ENGIN
SKU: 61401-90833-YKV Weight: 0.000000 Brand: Price: $ 1,208.50 |
COVER SET,ENGIN | 1 | $ 1,208.50 | ||
| 2 | 61621-87D20 Front Fastener Bracket
SKU: 61621-87D20 Weight: 0.250000 Brand: Price: $ 17.04 |
Front Fastener Bracket | 1 | $ 17.04 | ||
| 3 | 61644-90J20 Rear Fastener Bracket
SKU: 61644-90J20 Weight: 0.250000 Brand: Price: $ 20.27 |
Rear Fastener Bracket | 2 | $ 20.27 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 4 | $ 2.82 | ||
| 5 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 6 | 61430-92800-YKV Tilt Up Handle
SKU: 61430-92800-YKV Weight: 22.000000 Brand: Price: $ 160.10 |
Tilt Up Handle | 1 | $ 160.10 | ||
| 7 | 61438-92J11 Tilt Up Handle Seal
SKU: 61438-92J11 Weight: 0.250000 Brand: Price: $ 6.41 |
Tilt Up Handle Seal | 1 | $ 6.41 | ||
| 8 | 61439-92J10 Tilt Up Handle Seal
SKU: 61439-92J10 Weight: 0.250000 Brand: Price: $ 2.60 |
Tilt Up Handle Seal | 1 | $ 2.60 | ||
| 9 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 1 | $ 12.24 | ||
| 10 | 61680-90J01 Starboard Rear Fastener
SKU: 61680-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Starboard Rear Fastener | 1 | $ 17.42 | ||
| 11 | 61690-90J01 Port Rear Fastener
SKU: 61690-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Port Rear Fastener | 1 | $ 17.42 | ||
| 12 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 13 | 09329-10025 Cushion
SKU: 09329-10025 Weight: 0.060000 Brand: Price: $ 3.33 |
Cushion | 2 | $ 3.33 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 15 | 07120-06167 BOLT
SKU: 07120-06167 Weight: 0.100000 Brand: Price: $ 3.21 |
BOLT | 2 | $ 3.21 | ||
| 16 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | ||
| 17 | 61443-92J21 STRIPE,ENG CVR
SKU: 61443-92J21 Weight: 0.000000 Brand: Price: $ 24.36 |
STRIPE,ENG CVR | 1 | $ 24.36 | ||
| 18 | 61453-92J21 STRIPE,ENG CVR
SKU: 61453-92J21 Weight: 0.000000 Brand: Price: $ 24.36 |
STRIPE,ENG CVR | 1 | $ 24.36 | ||
| 19 | 77811-63J00-0PG Chrome S Emblem
SKU: 77811-63J00-0PG Weight: 0.200000 Brand: Price: $ 18.49 |
Chrome S Emblem | 1 | $ 18.49 | ||
| 20 | 61112-92J10 Side Cover Rubber
SKU: 61112-92J10 Weight: 1.000000 Brand: Price: $ 82.52 |
Side Cover Rubber | 1 | $ 82.52 | ||
| 21 | 61432-92J20 Tilt Up Louver
SKU: 61432-92J20 Weight: 1.000000 Brand: Price: $ 240.28 |
Tilt Up Louver | 1 | $ 240.28 | Matte Red | |
| 22 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 3 | $ 2.16 | ||
| 23 | 61424-93J00 Emblem Mark (SS)
SKU: 61424-93J00 Weight: 0.100000 Brand: Price: $ 38.23 |
Emblem Mark (SS) | 1 | $ 38.23 | ||
| 24 | 61435-92J51 MARK,EMBLEM REA
SKU: 61435-92J51 Weight: 0.000000 Brand: Price: $ 37.84 |
MARK,EMBLEM REA | 1 | $ 37.84 | ||
| 25 | 61444-92J01 STRIPE,ENG CVR
SKU: 61444-92J01 Weight: 0.000000 Brand: Price: $ 28.41 |
STRIPE,ENG CVR | 1 | $ 28.41 | Starboard | |
| 26 | 61454-92J01 STRIPE,ENGINE C
SKU: 61454-92J01 Weight: 0.000000 Brand: Price: $ 24.36 |
STRIPE,ENGINE C | 1 | $ 24.36 | Port | |
| 27 | 61441-92J10 Suzuki Mark
SKU: 61441-92J10 Weight: 0.250000 Brand: Price: $ 90.62 |
Suzuki Mark | 2 | $ 90.62 | ||
| 28 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 29 | 990C0-65027 DF115A / DF140A Genuine Engine Cover
SKU: 990C0-65027 Weight: 1.500000 Brand: Price: $ 123.80 |
DF115A / DF140A Genuine Engine Cover | 1 | $ 123.80 | Optional | |
| 30 | 99011-97J60-03B Owners Manual DF 2.5 - 2018
SKU: 99011-97J60-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF 2.5 - 2018 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
