Suzuki DF 90A Parts Listings - 2018
S/N 09003F-810001 to 09003F-81XXXX

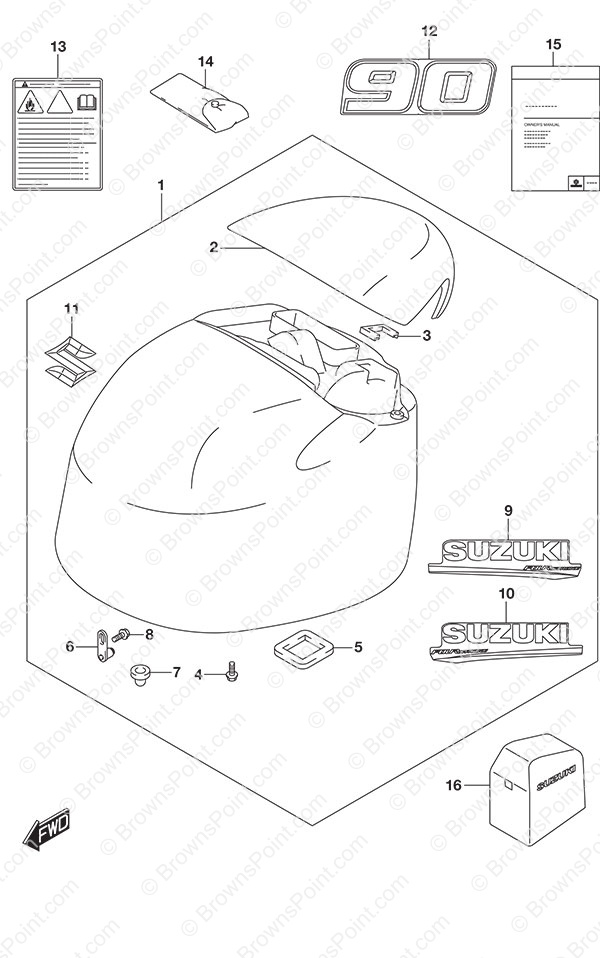

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-87Y01-YAY Engine Cover Set
SKU: 61401-87Y01-YAY Weight: 20.000000 Brand: Price: $ 1,011.47 |
Engine Cover Set | 1 | $ 1,011.47 | Black | |
| 1-2 | 61401-87Y11-Y5S Engine Cover Set
SKU: 61401-87Y11-Y5S Weight: 20.000000 Brand: Price: $ 1,077.82 |
Engine Cover Set | 1 | $ 1,077.82 | White | |
| 2-1 | 61431-87L21-YAY Tilt Up Handle
SKU: 61431-87L21-YAY Weight: 2.000000 Brand: Price: $ 200.54 |
Tilt Up Handle | 1 | $ 200.54 | Black | |
| 2-2 | 61431-87L21-Y5S Tilt Up Handle
SKU: 61431-87L21-Y5S Weight: 2.000000 Brand: Price: $ 216.25 |
Tilt Up Handle | 1 | $ 216.25 | White | |
| 3 | 61439-87L00 Tilt Up Handle Seal (NLA)
SKU: 61439-87L00 Weight: 0.200000 Brand: Price: $ 4.97 |
Tilt Up Handle Seal (NLA) | 1 | $ 4.97 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 5 | 61476-87L00 Air Vent Seal (NLA)
SKU: 61476-87L00 Weight: 0.200000 Brand: Price: $ 4.83 |
Air Vent Seal (NLA) | 1 | $ 4.83 | ||
| 6 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 2 | $ 12.24 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9-1 | 61443-88L20 Starboard Engine Cover Stripe
SKU: 61443-88L20 Weight: 0.100000 Brand: Price: $ 18.27 |
Starboard Engine Cover Stripe | 1 | $ 18.27 | For Black | |
| 9-2 | 61443-88L30 Starboard Engine Cover Stripe
SKU: 61443-88L30 Weight: 0.250000 Brand: Price: $ 26.49 |
Starboard Engine Cover Stripe | 1 | $ 26.49 | For White | |
| 10-1 | 61453-88L20 Port Engine Cover Stripe
SKU: 61453-88L20 Weight: 0.250000 Brand: Price: $ 18.27 |
Port Engine Cover Stripe | 1 | $ 18.27 | For Black | |
| 10-2 | 61453-88L30 Port Engine Cover Stripe
SKU: 61453-88L30 Weight: 0.250000 Brand: Price: $ 26.49 |
Port Engine Cover Stripe | 1 | $ 26.49 | For White | |
| 11 | 68111-87L00 Emblem Mark 'S'
SKU: 68111-87L00 Weight: 0.060000 Brand: Price: $ 11.31 |
Emblem Mark 'S' | 1 | $ 11.31 | ||
| 12-1 | 61435-87LD0 Emblem Mark (90)
SKU: 61435-87LD0 Weight: 0.200000 Brand: Price: $ 9.20 |
Emblem Mark (90) | 2 | $ 9.20 | For Black | |
| 12-2 | 61435-87LF0 Emblem Mark (90)
SKU: 61435-87LF0 Weight: 0.200000 Brand: Price: $ 12.69 |
Emblem Mark (90) | 2 | $ 12.69 | For White | |
| 13 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 14 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 15 | 99011-87L60-03B Owners Manual DF70A/80A/90A - 2018
SKU: 99011-87L60-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF70A/80A/90A - 2018 | 1 | $ 20.00 | ||
| 16 | 990C0-65026 DF70A / DF90A Genuine Engine Cover
SKU: 990C0-65026 Weight: 1.000000 Brand: Price: $ 109.59 |
DF70A / DF90A Genuine Engine Cover | 1 | $ 109.59 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
