Suzuki DF 6A Parts Listings - 2018
S/N 00603F-810001 to 00603F-81XXXX

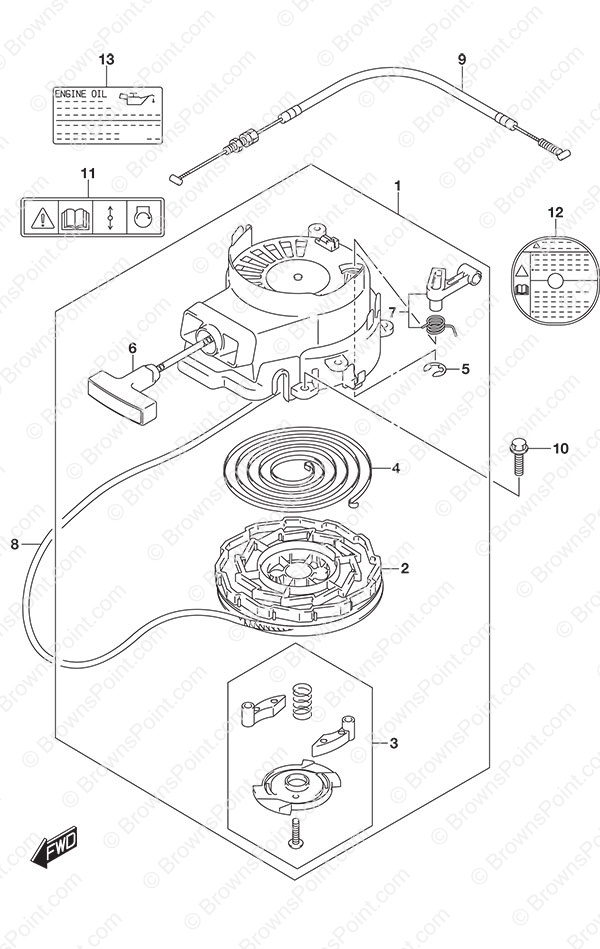

Fig. 167 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-97L00 Recoil Starter Assembly
SKU: 18100-97L00 Weight: 2.000000 Brand: Price: $ 134.32 |
Recoil Starter Assembly | 1 | $ 134.32 | ||
| 2 | 18121-97L00 Reel
SKU: 18121-97L00 Weight: 0.250000 Brand: Price: $ 18.07 |
Reel | 1 | $ 18.07 | ||
| 3 | 18130-97L00 Ratchet Set
SKU: 18130-97L00 Weight: 0.250000 Brand: Price: $ 18.93 |
Ratchet Set | 1 | $ 18.93 | ||
| 4 | 18142-97L00 Spiral Spring
SKU: 18142-97L00 Weight: 0.060000 Brand: Price: $ 12.32 |
Spiral Spring | 1 | $ 12.32 | ||
| 5 | 18178-98310 Circlip
SKU: 18178-98310 Weight: 0.100000 Brand: Price: $ 0.89 |
Circlip | 1 | $ 0.89 | ||
| 6 | 18210-95L00 Grip Assembly
SKU: 18210-95L00 Weight: 0.250000 Brand: Price: $ 12.47 |
Grip Assembly | 1 | $ 12.47 | ||
| 7 | 18280-91J00 NSI Set
SKU: 18280-91J00 Weight: 0.250000 Brand: Price: $ 6.99 |
NSI Set | 1 | $ 6.99 | ||
| 8 | 99000-81157-50M Rope (NLA)
SKU: 99000-81157-50M Weight: 0.100000 Brand: Price: $ 182.62 |
Rope (NLA) | 1 | $ 182.62 | Opt L:50000->1200 | |
| 9 | 18290-97L00 NSI Cable Assembly
SKU: 18290-97L00 Weight: 0.500000 Brand: Price: $ 12.41 |
NSI Cable Assembly | 1 | $ 12.41 | ||
| 10 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 3 | $ 1.68 | ||
| 11 | 69711-91J10 Label S.I.G.P.
SKU: 69711-91J10 Weight: 0.100000 Brand: Price: $ 6.06 |
Label S.I.G.P. | 1 | $ 6.06 | ||
| 12 | 61472-97L00 Recoil Starter Label
SKU: 61472-97L00 Weight: 0.125000 Brand: Price: $ 2.34 |
Recoil Starter Label | 1 | $ 2.34 | ||
| 13 | 61494-97L00 Oil & Clearance Label
SKU: 61494-97L00 Weight: 0.125000 Brand: Price: $ 0.93 |
Oil & Clearance Label | 1 | $ 0.93 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
