Suzuki DF 4A Parts Listings - 2018
S/N 00403F-810001 to 00403F-81XXXX

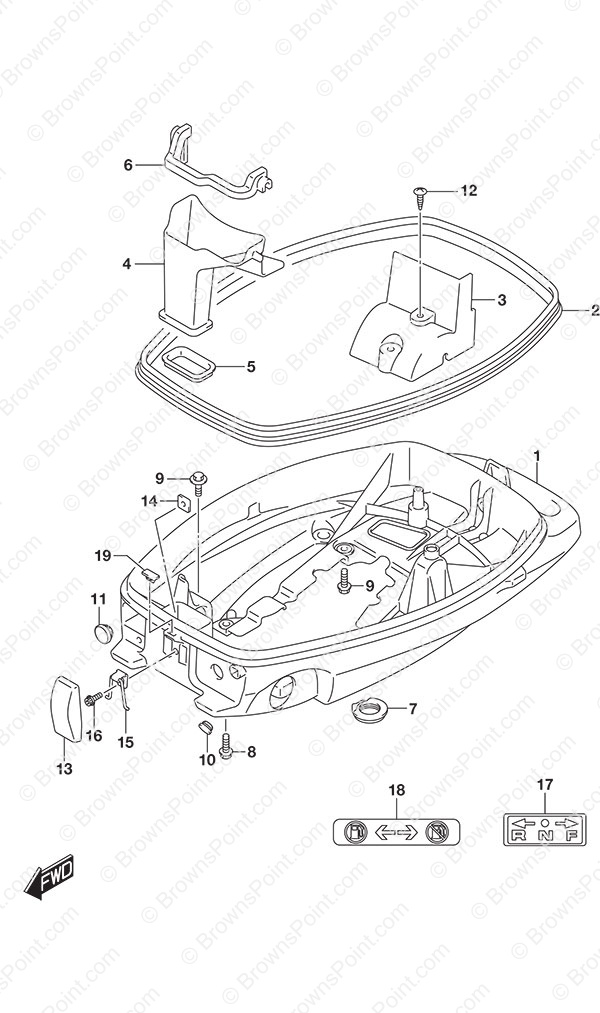

Fig. 412 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61110-97L10-QGF Engine Lower Cover
SKU: 61110-97L10-QGF Weight: 10.000000 Brand: Price: $ 72.13 |
Engine Lower Cover | 1 | $ 72.13 | ||
| 2 | 61112-97L00 Engine Lower Cover Rubber
SKU: 61112-97L00 Weight: 2.000000 Brand: Price: $ 23.51 |
Engine Lower Cover Rubber | 1 | $ 23.51 | ||
| 3 | 61117-97L00 Air Intake Lower Cover
SKU: 61117-97L00 Weight: 0.250000 Brand: Price: $ 8.15 |
Air Intake Lower Cover | 1 | $ 8.15 | ||
| 4 | 61133-97L00 Air Vent Duct
SKU: 61133-97L00 Weight: 0.250000 Brand: Price: $ 10.42 |
Air Vent Duct | 1 | $ 10.42 | ||
| 5 | 61135-97L00 Air Vent Duct Lower Cushion
SKU: 61135-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Air Vent Duct Lower Cushion | 1 | $ 3.64 | ||
| 6 | 61137-97L00 Air Vent Duct Upper Cushion
SKU: 61137-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Air Vent Duct Upper Cushion | 1 | $ 3.64 | ||
| 7 | 61189-97L00 Oil Drain Grommet
SKU: 61189-97L00 Weight: 0.060000 Brand: Price: $ 3.48 |
Oil Drain Grommet | 1 | $ 3.48 | ||
| 8 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 2 | $ 2.91 | ||
| 9 | 09116-06509 Bolt (6x20)
SKU: 09116-06509 Weight: 0.060000 Brand: Price: $ 2.43 |
Bolt (6x20) | 4 | $ 2.43 | ||
| 10 | 09250-10030 CAP(OD:15)
SKU: 09250-10030 Weight: 0.100000 Brand: Price: $ 1.66 |
CAP(OD:15) | 1 | $ 1.66 | ||
| 11 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 12 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 1 | $ 1.70 | ||
| 13 | 61611-91J11 Engine Cover Fastener
SKU: 61611-91J11 Weight: 1.250000 Brand: Price: $ 2.26 |
Engine Cover Fastener | 2 | $ 2.26 | ||
| 14 | 61626-97L00 Fastener Lever Nut
SKU: 61626-97L00 Weight: 0.060000 Brand: Price: $ 1.85 |
Fastener Lever Nut | 2 | $ 1.85 | ||
| 15 | 61640-91J10 Fastener Lever
SKU: 61640-91J10 Weight: 0.060000 Brand: Price: $ 16.56 |
Fastener Lever | 2 | $ 16.56 | ||
| 16 | 09106-05035 Bolt (5x14)
SKU: 09106-05035 Weight: 0.060000 Brand: Price: $ 2.11 |
Bolt (5x14) | 2 | $ 2.11 | ||
| 17 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 18 | 61211-97L10 Fuel Cock Mark
SKU: 61211-97L10 Weight: 0.060000 Brand: Price: $ 1.41 |
Fuel Cock Mark | 1 | $ 1.41 | ||
| 19 | 61619-97L00 Engine Cover Fastener Cushion
SKU: 61619-97L00 Weight: 0.060000 Brand: Price: $ 1.35 |
Engine Cover Fastener Cushion | 1 | $ 1.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
