Suzuki DF 2.5 Parts Listings - 2018
S/N 00252F-810001 to 00252F-81XXXX

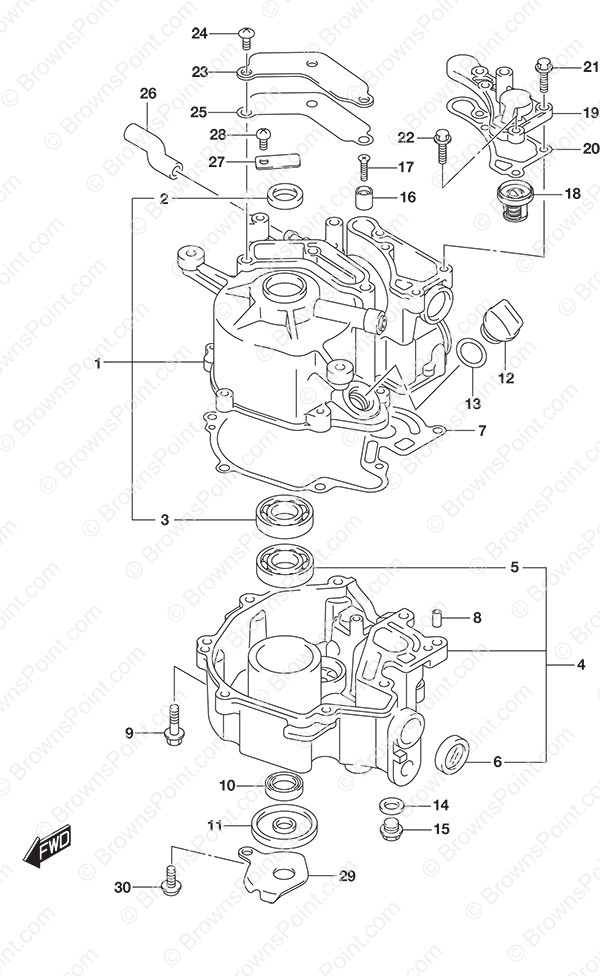

Fig. 113 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11200-97J00 Cylinder Block Assembly
SKU: 11200-97J00 Weight: 5.000000 Brand: Price: $ 408.05 |
Cylinder Block Assembly | 1 | $ 408.05 | ||
| 2 | 59295-97J00 Crankshaft Oil Seal
SKU: 59295-97J00 Weight: 0.100000 Brand: Price: $ 25.85 |
Crankshaft Oil Seal | 1 | $ 25.85 | ||
| 3 | 09262-17023 Bearing (17x40x12)
SKU: 09262-17023 Weight: 0.200000 Brand: Price: $ 17.05 |
Bearing (17x40x12) | 1 | $ 17.05 | Upper | |
| 4 | 11300-97J21 Crankshaft Case Assembly
SKU: 11300-97J21 Weight: 3.000000 Brand: Price: $ 230.99 |
Crankshaft Case Assembly | 1 | $ 230.99 | ||
| 5 | 09262-17023 Bearing (17x40x12)
SKU: 09262-17023 Weight: 0.200000 Brand: Price: $ 17.05 |
Bearing (17x40x12) | 1 | $ 17.05 | Lower | |
| 6 | 11971-91J01 Oil Level Filler Lens
SKU: 11971-91J01 Weight: 0.060000 Brand: Price: $ 11.51 |
Oil Level Filler Lens | 1 | $ 11.51 | ||
| 7 | 11351-97JL0 Crankcase Gasket
SKU: 11351-97JL0 Weight: 0.250000 Brand: Price: $ 31.56 |
Crankcase Gasket | 1 | $ 31.56 | ||
| 8 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 9 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 8 | $ 2.33 | ||
| 10 | 59295-97J10 Driveshaft Oil Seal
SKU: 59295-97J10 Weight: 0.060000 Brand: Price: $ 18.79 |
Driveshaft Oil Seal | 1 | $ 18.79 | ||
| 11 | 59295-97J20 Crankshaft Oil Seal
SKU: 59295-97J20 Weight: 0.060000 Brand: Price: $ 38.53 |
Crankshaft Oil Seal | 1 | $ 38.53 | ||
| 12 | 11382-97J00 Oil Filler Cap
SKU: 11382-97J00 Weight: 0.200000 Brand: Price: $ 5.69 |
Oil Filler Cap | 1 | $ 5.69 | ||
| 13 | 09280-15007 O-Ring
SKU: 09280-15007 Weight: 0.060000 Brand: Price: $ 1.73 |
O-Ring | 1 | $ 1.73 | ||
| 14 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 15 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 16 | 55321-95J00 Protection Anode
SKU: 55321-95J00 Weight: 0.060000 Brand: Price: $ 10.78 |
Protection Anode | 1 | $ 10.78 | ||
| 17 | 09126-05011 Protection Anode Screw
SKU: 09126-05011 Weight: 0.060000 Brand: Price: $ 2.12 |
Protection Anode Screw | 1 | $ 2.12 | ||
| 18 | 17670-91J02 Thermostat (50c)
SKU: 17670-91J02 Weight: 0.125000 Brand: Price: $ 38.22 |
Thermostat (50c) | 1 | $ 38.22 | ||
| 19 | 17681-97J21 Thermostat Cover
SKU: 17681-97J21 Weight: 0.250000 Brand: Price: $ 19.95 |
Thermostat Cover | 1 | $ 19.95 | ||
| 20 | 17685-97J01 Thermostat Gasket
SKU: 17685-97J01 Weight: 0.060000 Brand: Price: $ 2.63 |
Thermostat Gasket | 1 | $ 2.63 | ||
| 21 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
| 22 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 | ||
| 23 | 11173-97J00 Breather Plate (NLA)
SKU: 11173-97J00 Weight: 0.100000 Brand: Price: $ 7.36 |
Breather Plate (NLA) | 1 | $ 7.36 | ||
| 24 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 3 | $ 1.38 | ||
| 25 | 11179-97J00 Breather Plate Gasket
SKU: 11179-97J00 Weight: 0.250000 Brand: Price: $ 4.10 |
Breather Plate Gasket | 1 | $ 4.10 | ||
| 26 | 11174-97J00 Breather Hose (NLA)
SKU: 11174-97J00 Weight: 0.100000 Brand: Price: $ 4.16 |
Breather Hose (NLA) | 1 | $ 4.16 | ||
| 27 | 11452-91J00 Reed Valve
SKU: 11452-91J00 Weight: 0.100000 Brand: Price: $ 3.00 |
Reed Valve | 1 | $ 3.00 | ||
| 28 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 29 | 11431-97J11 Under Oil Seal Plate
SKU: 11431-97J11 Weight: 0.060000 Brand: Price: $ 7.38 |
Under Oil Seal Plate | 1 | $ 7.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
