Suzuki DF 2.5 Parts Listings - 2018
S/N 00252F-810001 to 00252F-81XXXX

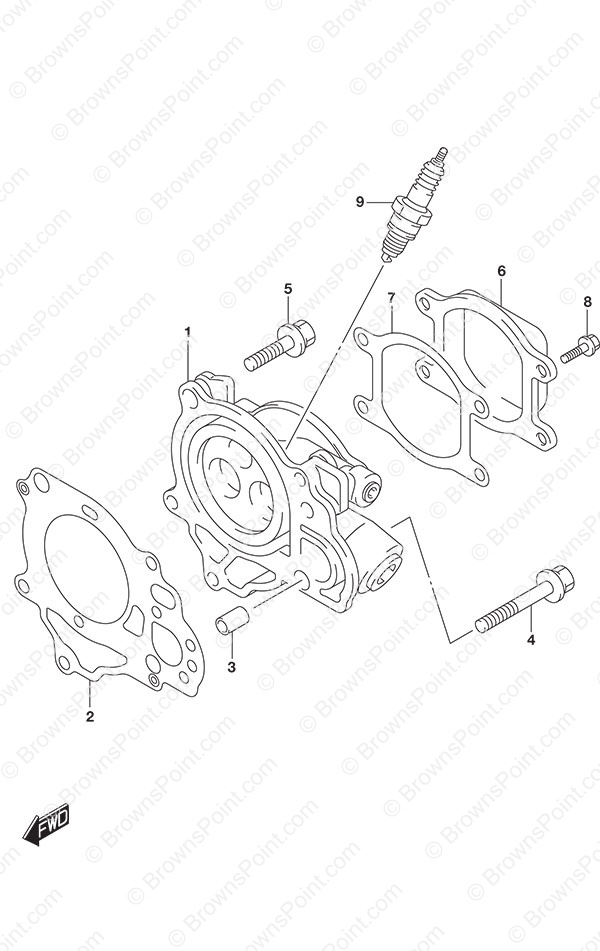

Fig. 111 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11110-97J20 Cylinder Head
SKU: 11110-97J20 Weight: 1.000000 Brand: Price: $ 298.70 |
Cylinder Head | 1 | $ 298.70 | ||
| 2 | 11141-97JL0 Cylinder Head Gasket
SKU: 11141-97JL0 Weight: 0.060000 Brand: Price: $ 25.19 |
Cylinder Head Gasket | 1 | $ 25.19 | ||
| 3 | 09206-08008 Cylinder Head Dowl Pin (NLA)
SKU: 09206-08008 Weight: 0.100000 Brand: Price: $ 2.03 |
Cylinder Head Dowl Pin (NLA) | 2 | $ 2.03 | ||
| 4 | 11118-97JL0 Cylinder Head Bolt
SKU: 11118-97JL0 Weight: 0.100000 Brand: Price: $ 3.09 |
Cylinder Head Bolt | 1 | $ 3.09 | ||
| 5 | 11119-97JL0 Cylinder Head Bolt
SKU: 11119-97JL0 Weight: 0.100000 Brand: Price: $ 3.31 |
Cylinder Head Bolt | 4 | $ 3.31 | ||
| 6 | 11171-97J10 Cylinder Head Cover
SKU: 11171-97J10 Weight: 0.250000 Brand: Price: $ 25.12 |
Cylinder Head Cover | 1 | $ 25.12 | ||
| 7 | 11189-97JL0 Cylinder Head Cover Gasket
SKU: 11189-97JL0 Weight: 0.200000 Brand: Price: $ 5.73 |
Cylinder Head Cover Gasket | 1 | $ 5.73 | ||
| 8 | 01547-05107 BOLT
SKU: 01547-05107 Weight: 0.100000 Brand: Price: $ 1.54 |
BOLT | 4 | $ 1.54 | ||
| 9 | 09482-00406 NGK CR6HSA Spark Plug
SKU: 09482-00406 Weight: 0.187500 Brand: Price: $ 3.68 |
NGK CR6HSA Spark Plug | 1 | $ 3.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
