Suzuki DF 50 Parts Listings - 2007
S/N 05001F-780001 to 05001F-78XXXX

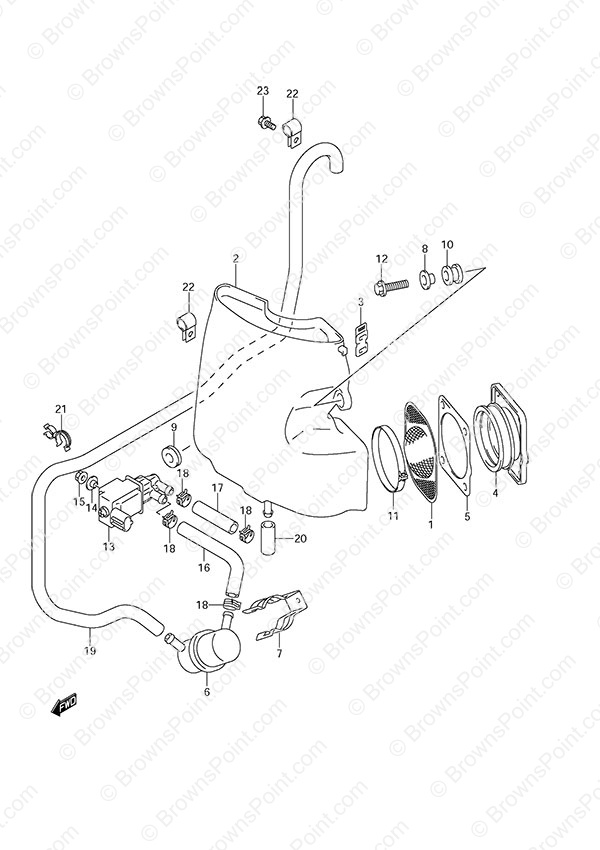

Fig. 10 - Silencer
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13710-87J10 Flame Arrester (NLA)
SKU: 13710-87J10 Weight: 0.100000 Brand: Price: $ 11.65 |
Flame Arrester (NLA) | 1 | $ 11.65 | ||
| 2 | 13810-87J20 Silencer (NLA)
SKU: 13810-87J20 Weight: 0.100000 Brand: Price: $ 109.97 |
Silencer (NLA) | 1 | $ 109.97 | ||
| 3 | 13816-87J00 Silencer Band
SKU: 13816-87J00 Weight: 0.200000 Brand: Price: $ 3.95 |
Silencer Band | 2 | $ 3.95 | ||
| 4 | 13851-87J10 Silencer Seal (NLA)
SKU: 13851-87J10 Weight: 0.100000 Brand: Price: $ 9.57 |
Silencer Seal (NLA) | 1 | $ 9.57 | ||
| 5 | 13852-87J00 Silencer Seal Plate
SKU: 13852-87J00 Weight: 0.200000 Brand: Price: $ 4.84 |
Silencer Seal Plate | 1 | $ 4.84 | ||
| 6 | 18145-84380 IAC Valve Silencer
SKU: 18145-84380 Weight: 0.060000 Brand: Price: $ 13.03 |
IAC Valve Silencer | 1 | $ 13.03 | ||
| 7 | 18146-87J00 IAC Silencer Clamp
SKU: 18146-87J00 Weight: 0.100000 Brand: Price: $ 6.91 |
IAC Silencer Clamp | 1 | $ 6.91 | ||
| 8 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 1 | $ 3.19 | ||
| 9 | 09320-08013 Grommet
SKU: 09320-08013 Weight: 0.060000 Brand: Price: $ 2.07 |
Grommet | 1 | $ 2.07 | ||
| 10 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 12 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 1 | $ 3.54 | ||
| 13 | 18117-84380 IAC Valve
SKU: 18117-84380 Weight: 0.340000 Brand: Price: $ 190.04 |
IAC Valve | 1 | $ 190.04 | ||
| 14 | 09169-06081 Washer
SKU: 09169-06081 Weight: 0.100000 Brand: Price: $ 3.74 |
Washer | 1 | $ 3.74 | ||
| 15 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | ||
| 16 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | Silencer to IAC L:600->110 | |
| 17 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | IAC to Throttle Body L:600->70 | |
| 18 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 19 | 18141-87J00 ISC Hose (NLA)
SKU: 18141-87J00 Weight: 0.100000 Brand: Price: $ 13.28 |
ISC Hose (NLA) | 1 | $ 13.28 | ||
| 20 | 09251-07003 Cap
SKU: 09251-07003 Weight: 0.250000 Brand: Price: $ 2.20 |
Cap | 1 | $ 2.20 | ||
| 21 | 09408-00105 Clamp
SKU: 09408-00105 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 1 | $ 4.27 | ||
| 22 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 23 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
