Suzuki DF 50 Parts Listings - 2005
S/N 05001F-510001 to 05001F-51XXXX

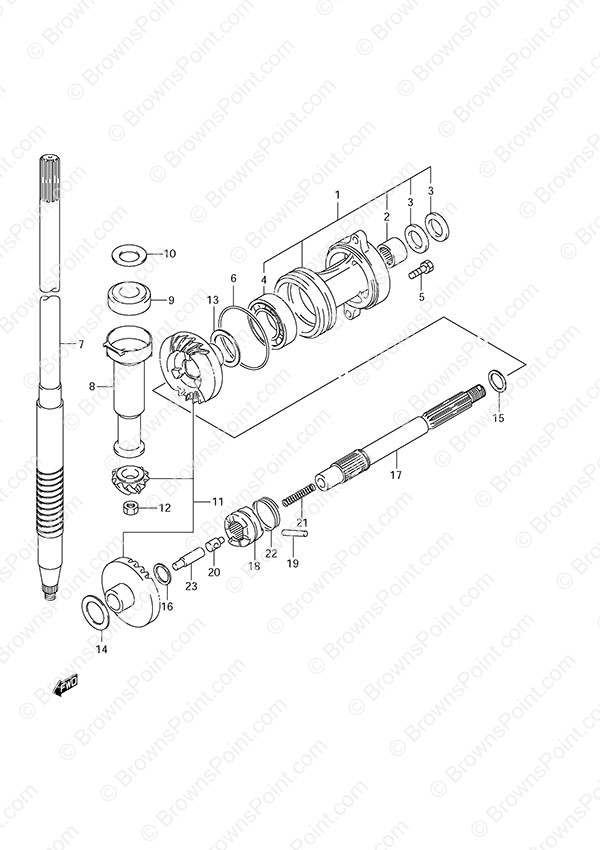

Fig. 23 - Transmission S/N 05001F-510001 to 05001F-510465

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 56120-94321-0EP Propeller Shaft Bearing Housing 1 $ 203.58
2 09263-22020 Bearing (22.225x28.575.19.05) 1 $ 19.54
3 09289-22007 Oil Seal (21.2x35x5) 2 $ 5.22
4 09262-35070 Bearing (35x62x14) 1 $ 47.33
5 09117-08047 Bolt (8x30) 2 $ 5.05
6 09280-75001 O-Ring 1 $ 4.85
7-1 57110-87J30 Drive Shaft (S) (NLA) 1 $ 344.28

Not Available

w/Transom (S)
7-2 57110-87J40 Drive Shaft (L) 1 $ 319.28
w/Transom (L)
8 57133-87J00 Drive Shaft Collar 1 $ 13.33
9 09265-20005 RT 20x42x15 Bearing 1 $ 49.77
10-1 09181-35101 Shim (0.50) 1 $ 2.17
Drive Shaft Adjust
10-2 09181-33002 Washer (0.60) 1 $ 3.13
10-3 09181-33004 Washer (0.70) (NLA) 1 $ 2.35
10-4 09181-33006 Washer (0.80) 1 $ 3.37
10-5 09181-33008 Washer (0.90) 1 $ 3.37
10-6 09181-35111 Shim (1.0) 1 $ 3.14

Not Available

11 57300-88810 Pinion & Gear Set 1 $ 446.74
12 09140-12034 Pinion Nut 1 $ 3.02
13-1 08221-35455 Shim (0.50) 1 $ 3.31
Reverse Backup
13-2 09181-35131 Shim (0.60) 1 $ 3.38
13-3 09181-35132 Shim (0.70) 1 $ 3.38
13-4 08221-35456 Shim (0.80) 1 $ 3.40
13-5 09181-35136 Shim (0.90) 1 $ 2.49
13-6 08211-35451 Shim (1.00) 1 $ 3.40
14-1 09181-30186 Shim (0.50) 1 $ 3.61
Forward Backup
14-2 09181-30187 Shim (0.60) 1 $ 3.52
14-3 09181-30188 Shim (0.70) 1 $ 3.58
14-4 09181-30190 Shim (0.80) 1 $ 3.61
14-5 09181-30192 Shim (0.90) 1 $ 3.52
15-1 09160-22018 Washer (1.80) 1 $ 3.89
Prop Shaft Thrust
15-2 09160-22019 Washer (1.90) 1 $ 3.89
15-3 09160-22020 Washer (2.00) 1 $ 4.13
15-4 09160-22021 Washer (2.10) 1 $ 4.13
15-5 09160-22022 Washer (2.20) 1 $ 3.89
15-6 09160-22023 Washer (2.30) 1 $ 3.89
16 08211-20263 Thrust Washer (2.00) 1 $ 2.45
17 57610-94403 Propeller Shaft Assembly 1 $ 176.87
18 57621-87J03 Clutch Dog Shifter 1 $ 73.80
19 09202-05022 Clutch Dog Shifter Pin 1 $ 3.47
20 57634-88L00 Push Pin 1 $ 8.51
21 09440-08034 Return Spring 1 $ 2.16
22 09440-40002 Clutch Dog Spring 1 $ 3.21
23 57631-95303 Push Rod 1 $ 13.48

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
