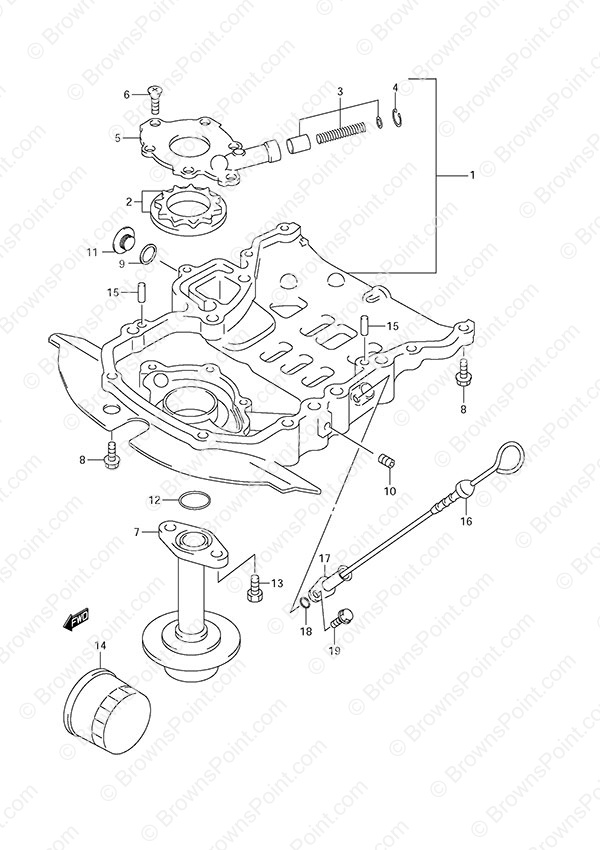

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 16100-87J11 Oil Pump Case Assembly SKU: 16100-87J11 Weight: 0.100000 Brand: Price: $ 414.14 |
Oil Pump Case Assembly | 1 | $ 414.14 | ||
2 | 16130-70B01 Oil Pump Rotor Set SKU: 16130-70B01 Weight: 1.000000 Brand: Price: $ 79.66 |
Oil Pump Rotor Set | 1 | $ 79.66 | ||
3 | 16150-60A20 Oil Pump Relief Valve Set SKU: 16150-60A20 Weight: 0.250000 Brand: Price: $ 10.81 |
Oil Pump Relief Valve Set | 1 | $ 10.81 | ||
5 | 16161-87J00 Oil Pump Rotor Plate (NLA) SKU: 16161-87J00 Weight: 0.250000 Brand: Price: $ 35.97 |
Oil Pump Rotor Plate (NLA) | 1 | $ 35.97 | ||
6 | 02112-0616A SCREW SKU: 02112-0616A Weight: 0.200000 Brand: Price: $ 1.44 |
SCREW | 6 | $ 1.44 | ||
7 | 16520-87J00 Oil Pump Strainer (NLA) SKU: 16520-87J00 Weight: 0.100000 Brand: Price: $ 28.07 |
Oil Pump Strainer (NLA) | 1 | $ 28.07 | ||
8 | 29116-93J10 Bolt (8x35) SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 7 | $ 2.90 | ||
9 | 09160-18031 Exhaust Plug Gasket SKU: 09160-18031 Weight: 0.060000 Brand: Price: $ 2.46 |
Exhaust Plug Gasket | 1 | $ 2.46 | ||
10 | 11118-98J01 Plug SKU: 11118-98J01 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
11-1 | 09248-18006 Exhaust Plug SKU: 09248-18006 Weight: 0.060000 Brand: Price: $ 6.12 |
Exhaust Plug | 1 | $ 6.12 | S/N 510001 to 510756 | |
11-2 | 09248-18010 Exhaust Plug SKU: 09248-18010 Weight: 0.080000 Brand: Price: $ 8.58 |
Exhaust Plug | 1 | $ 8.58 | S/N 510757 to 51XXXX | |
12 | 09280-16005 O-Ring SKU: 09280-16005 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 1 | $ 2.27 | ||
13 | 01570-0616A BOLT SKU: 01570-0616A Weight: 0.100000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
14 | 16510-87J02 Engine Oil Filter SKU: 16510-87J02 Weight: 0.000000 Brand: Price: $ 14.89 |
Engine Oil Filter | 1 | $ 14.89 | ||
15 | 04221-08149 PIN SKU: 04221-08149 Weight: 0.100000 Brand: Price: $ 1.96 |
PIN | 2 | $ 1.96 | ||
16 | 16910-87J00 Oil Level Gauge SKU: 16910-87J00 Weight: 0.500000 Brand: Price: $ 15.01 |
Oil Level Gauge | 1 | $ 15.01 | ||
17 | 16930-87J01 Oil Level Gauge Guide (NLA) SKU: 16930-87J01 Weight: 0.100000 Brand: Price: $ 11.59 |
Oil Level Gauge Guide (NLA) | 1 | $ 11.59 | ||
18 | 09280-09008 O-Ring SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
19 | 01550-06127 BOLT SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
