Suzuki DF 50 Parts Listings - 2004
S/N 05001F-421001 to 05001F-42XXXX

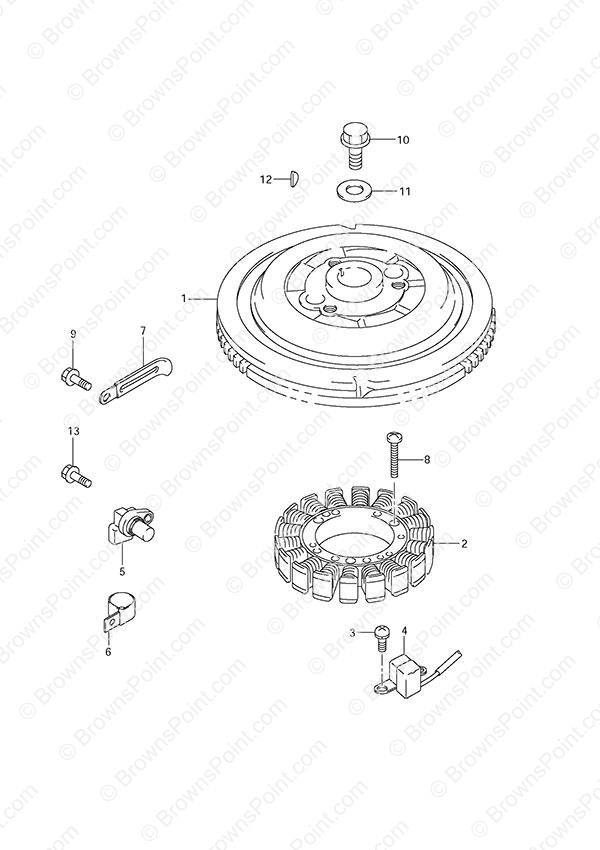

Fig. 28 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-87J11 Flywheel (NLA)
SKU: 32102-87J11 Weight: 10.000000 Brand: Price: $ 803.39 |
Flywheel (NLA) | 1 | $ 803.39 | ||
| 2 | 32120-87J10 Battery Charge Coil
SKU: 32120-87J10 Weight: 0.100000 Brand: Price: $ 539.36 |
Battery Charge Coil | 1 | $ 539.36 | ||
| 3 | 02112-0512A SCREW
SKU: 02112-0512A Weight: 0.100000 Brand: Price: $ 1.44 |
SCREW | 2 | $ 1.44 | ||
| 4 | 32160-87L01 CKP/Ignition Timimg Coil
SKU: 32160-87L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 5 | 33220-76G02 Cam Position Sensor
SKU: 33220-76G02 Weight: 0.100000 Brand: Price: $ 118.86 |
Cam Position Sensor | 1 | $ 118.86 | ||
| 6 | 09403-14204 Clamp (NLA)
SKU: 09403-14204 Weight: 0.100000 Brand: Price: $ 1.28 |
Clamp (NLA) | 1 | $ 1.28 | ||
| 7 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 8 | 02112-0630A SCREW
SKU: 02112-0630A Weight: 0.100000 Brand: Price: $ 1.78 |
SCREW | 3 | $ 1.78 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10-1 | 09103-16001 Flywheel Bolt (16x40)
SKU: 09103-16001 Weight: 0.250000 Brand: Price: $ 7.63 |
Flywheel Bolt (16x40) | 1 | $ 7.63 | S/N 421001 to 421540 | |
| 10-2 | 09103-14023 Flywheel Bolt (14x40)
SKU: 09103-14023 Weight: 0.100000 Brand: Price: $ 4.33 |
Flywheel Bolt (14x40) | 1 | $ 4.33 | S/N 421539 to 42XXXX | |
| 11-1 | 09160-16046 Washer (16.5x36x4.5) (NLA)
SKU: 09160-16046 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (16.5x36x4.5) (NLA) | 1 | $ 4.13 | S/N 421001 to 421540 | |
| 11-2 | 09160-14065 Washer (14.5x36x4.5)
SKU: 09160-14065 Weight: 0.100000 Brand: Price: $ 3.74 |
Washer (14.5x36x4.5) | 1 | $ 3.74 | S/N 421539 to 42XXXX | |
| 12 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
