Suzuki DF 50 Parts Listings - 2000
S/N 05001F-030001 to 05001F-03XXXX

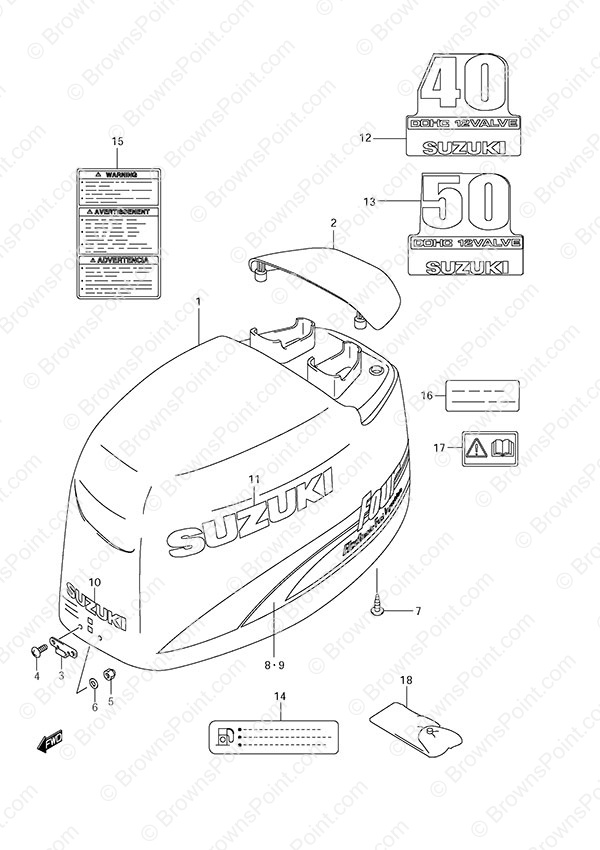

Fig. 49 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-87Y02-0EP Engine Cover Set (NLA)
SKU: 61400-87Y02-0EP Weight: 50.000000 Brand: Price: $ 908.18 |
Engine Cover Set (NLA) | 1 | $ 908.18 | ||
| 2 | 61431-87J00-0EP Tilt Up Handle (NLA)
SKU: 61431-87J00-0EP Weight: 0.600000 Brand: Price: $ 105.45 |
Tilt Up Handle (NLA) | 1 | $ 105.45 | ||
| 3 | 61631-99E00 Fastner Hook
SKU: 61631-99E00 Weight: 0.100000 Brand: Price: $ 8.60 |
Fastner Hook | 1 | $ 8.60 | ||
| 4 | 09125-06025 Screw (6x20)
SKU: 09125-06025 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x20) | 2 | $ 2.09 | ||
| 5 | 09145-06004 Nut
SKU: 09145-06004 Weight: 0.060000 Brand: Price: $ 2.45 |
Nut | 2 | $ 2.45 | ||
| 6 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 2 | $ 1.97 | ||
| 7 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 8 | 61443-87J00 Starboard Engine Cover Stripe
SKU: 61443-87J00 Weight: 0.060000 Brand: Price: $ 55.90 |
Starboard Engine Cover Stripe | 1 | $ 55.90 | ||
| 9 | 61453-87J00 Port Engine Cover Stripe
SKU: 61453-87J00 Weight: 0.060000 Brand: Price: $ 59.90 |
Port Engine Cover Stripe | 1 | $ 59.90 | ||
| 10 | 68271-87J00 Front Emblem Mark
SKU: 68271-87J00 Weight: 0.060000 Brand: Price: $ 8.20 |
Front Emblem Mark | 1 | $ 8.20 | ||
| 11 | 68681-17C00-Y2D Emblem Side Mark
SKU: 68681-17C00-Y2D Weight: 0.060000 Brand: Price: $ 17.62 |
Emblem Side Mark | 2 | $ 17.62 | ||
| 13 | 61435-87J10 Rear Emblem Mark (DF50)
SKU: 61435-87J10 Weight: 0.125000 Brand: Price: $ 17.78 |
Rear Emblem Mark (DF50) | 1 | $ 17.78 | ||
| 14 | 69716-99E14 Fuel Limitation Label
SKU: 69716-99E14 Weight: 0.200000 Brand: Price: $ 3.98 |
Fuel Limitation Label | 1 | $ 3.98 | ||
| 15 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 18 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
