Suzuki DF 50 Parts Listings - 2000
S/N 05001F-030001 to 05001F-03XXXX

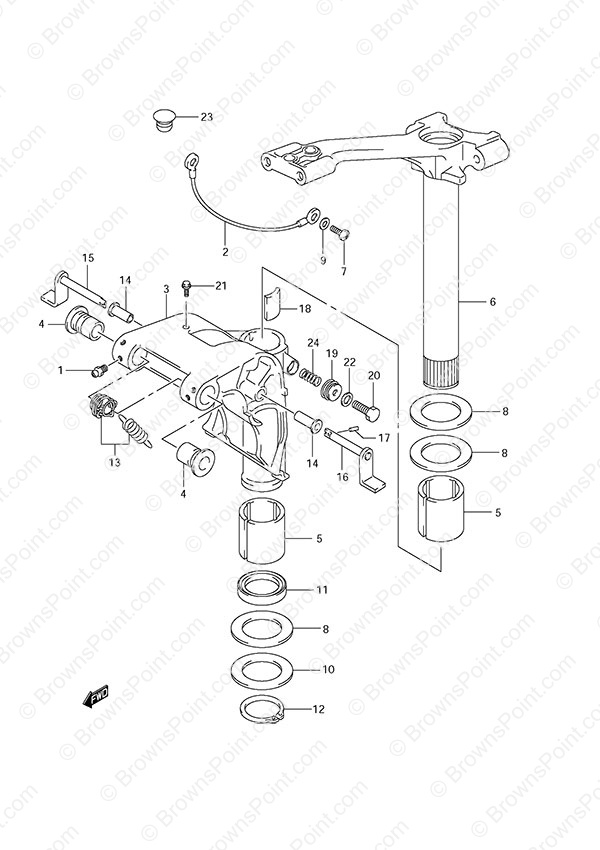

Fig. 37 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 3-1 | 43111-87J20-0EP Swivel Bracket (L) (NLA)
SKU: 43111-87J20-0EP Weight: 10.000000 Brand: Price: $ 430.10 |
Swivel Bracket (L) (NLA) | 1 | $ 430.10 | w/Transom (L) | |
| 3-2 | 43111-87J30-0EP Swivel Bracket (S) (NLA)
SKU: 43111-87J30-0EP Weight: 10.000000 Brand: Price: $ 355.10 |
Swivel Bracket (S) (NLA) | 1 | $ 355.10 | w/Transom (S) | |
| 4 | 43211-95250 Bushing (NLA)
SKU: 43211-95250 Weight: 0.060000 Brand: Price: $ 4.82 |
Bushing (NLA) | 2 | $ 4.82 | ||
| 5 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 6-1 | 43750-87J01-0EP Steering Bracket (L)
SKU: 43750-87J01-0EP Weight: 10.000000 Brand: Price: $ 364.61 |
Steering Bracket (L) | 1 | $ 364.61 | w/Transom (L) | |
| 6-2 | 43750-87J11-0EP Steering Bracket (S)
SKU: 43750-87J11-0EP Weight: 10.000000 Brand: Price: $ 484.29 |
Steering Bracket (S) | 1 | $ 484.29 | w/Transom (S) | |
| 7 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 8 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 3 | $ 3.56 | ||
| 9 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 10 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 2 | $ 3.83 | ||
| 11 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 12 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 13 | 41230-97E10 Tilt Lock Spring
SKU: 41230-97E10 Weight: 0.125000 Brand: Price: $ 24.07 |
Tilt Lock Spring | 1 | $ 24.07 | ||
| 14 | 41226-97E00 Bushing
SKU: 41226-97E00 Weight: 0.060000 Brand: Price: $ 5.11 |
Bushing | 2 | $ 5.11 | ||
| 15 | 41270-97E10 Stbd Tilt Lock Lever (NLA)
SKU: 41270-97E10 Weight: 0.100000 Brand: Price: $ 22.90 |
Stbd Tilt Lock Lever (NLA) | 1 | $ 22.90 | ||
| 16 | 41280-97E10 Port Tilt Lock Lever (NLA)
SKU: 41280-97E10 Weight: 0.100000 Brand: Price: $ 22.90 |
Port Tilt Lock Lever (NLA) | 1 | $ 22.90 | ||
| 17 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 | ||
| 18 | 43411-97E00 Steering Adjuster (NLA)
SKU: 43411-97E00 Weight: 0.100000 Brand: Price: $ 4.88 |
Steering Adjuster (NLA) | 1 | $ 4.88 | ||
| 19 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 20 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 1 | $ 5.06 | ||
| 21 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 1 | $ 2.98 | S/N 032799 to 03XXXX | |
| 22 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 23 | 09250-09008 Plug
SKU: 09250-09008 Weight: 0.125000 Brand: Price: $ 1.55 |
Plug | 1 | $ 1.55 | S/N 032799 to 03XXXX | |
| 24 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
