Suzuki DF 50 Parts Listings - 1999
S/N 05001F-971001 to 05001F-97XXXX

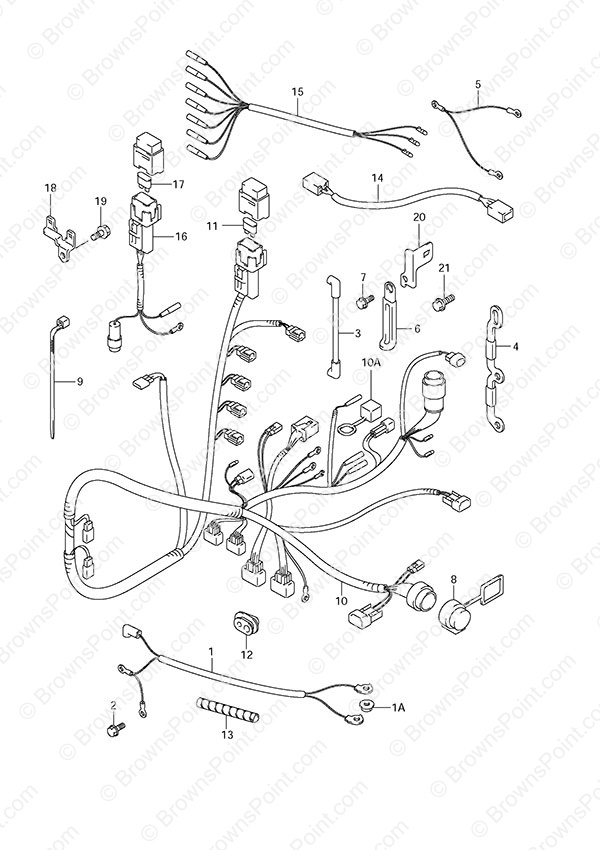

Fig. 32 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-92E01 Starter Motor Cable
SKU: 33810-92E01 Weight: 2.000000 Brand: Price: $ 185.33 |
Starter Motor Cable | 1 | $ 185.33 | ||
| 2 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 3 | 33820-87JV0 Plus Term to Relay Cable
SKU: 33820-87JV0 Weight: 5.000000 Brand: Price: $ 17.67 |
Plus Term to Relay Cable | 1 | $ 17.67 | ||
| 4 | 33831-99E01 PTT Relay Plate
SKU: 33831-99E01 Weight: 0.060000 Brand: Price: $ 8.78 |
PTT Relay Plate | 1 | $ 8.78 | ||
| 5 | 33832-94601 Trim Cable Assembly (NLA)
SKU: 33832-94601 Weight: 0.100000 Brand: Price: $ 12.35 |
Trim Cable Assembly (NLA) | 1 | $ 12.35 | ||
| 6 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 4 | $ 1.57 | ||
| 7 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8 | 33634-99E00 Service Connector Cap
SKU: 33634-99E00 Weight: 0.250000 Brand: Price: $ 7.63 |
Service Connector Cap | 1 | $ 7.63 | ||
| 9-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 9-2 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp (L:165) | 1 | $ 2.21 | ||
| 10-1 | 36610-87J01 Wiring Harness Assembly (NLA)
SKU: 36610-87J01 Weight: 5.000000 Brand: Price: $ 506.49 |
Wiring Harness Assembly (NLA) | 1 | $ 506.49 | w/Power Tilt | |
| 10-2 | 36610-87J20 Wiring Harness Assembly (NLA)
SKU: 36610-87J20 Weight: 5.000000 Brand: Price: $ 347.01 |
Wiring Harness Assembly (NLA) | 1 | $ 347.01 | w/Tiller Handle | |
| 11 | 09481-15101 15 Amp Fuse
SKU: 09481-15101 Weight: 0.060000 Brand: Price: $ 2.20 |
15 Amp Fuse | 1 | $ 2.20 | ||
| 12-1 | 36656-87D11 Cable Grommet
SKU: 36656-87D11 Weight: 0.100000 Brand: Price: $ 4.56 |
Cable Grommet | 1 | $ 4.56 | w/Power Tilt | |
| 12-2 | 36656-87D30 Cable Grommet (NLA)
SKU: 36656-87D30 Weight: 0.100000 Brand: Price: $ 3.13 |
Cable Grommet (NLA) | 1 | $ 3.13 | w/Tiller Handle | |
| 13 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 14 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | For Monitor Gauge | |
| 15 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | ||
| 16 | 36740-87J00 Fuse Case Assembly (NLA)
SKU: 36740-87J00 Weight: 0.100000 Brand: Price: $ 33.17 |
Fuse Case Assembly (NLA) | 1 | $ 33.17 | ||
| 17 | 09481-30101 30 Amp Fuse
SKU: 09481-30101 Weight: 0.060000 Brand: Price: $ 2.27 |
30 Amp Fuse | 1 | $ 2.27 | ||
| 18 | 36745-87J00 Fuse Case Bracket (NLA)
SKU: 36745-87J00 Weight: 0.100000 Brand: Price: $ 3.33 |
Fuse Case Bracket (NLA) | 1 | $ 3.33 | ||
| 19 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
