Suzuki DF 50 Parts Listings - 1999
S/N 05001F-971001 to 05001F-97XXXX

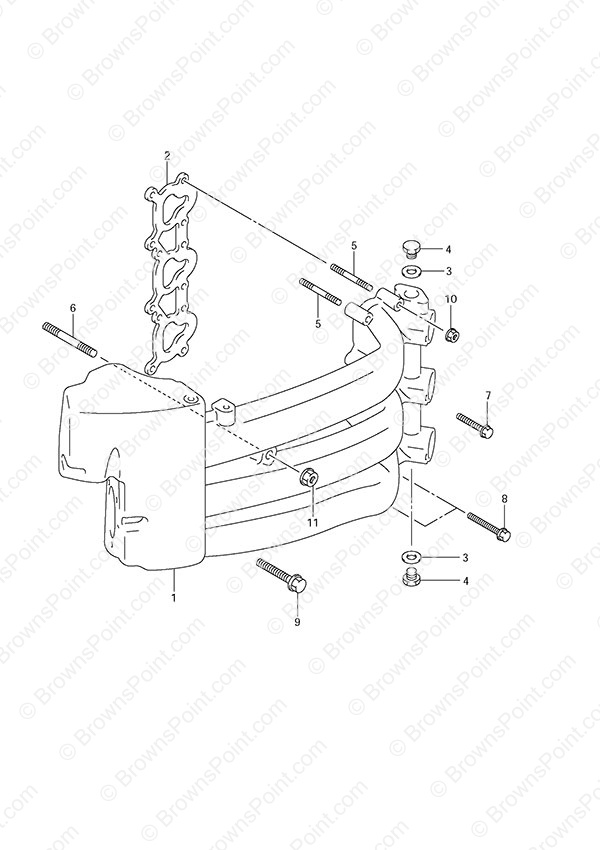

Fig. 8 - Inlet Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13111-87J03 Intake Manifold
SKU: 13111-87J03 Weight: 10.000000 Brand: Price: $ 476.43 |
Intake Manifold | 1 | $ 476.43 | Requires Ref# 12, 13 & 14 | |
| 2 | 13129-87J00 Intake Manifold Insulator
SKU: 13129-87J00 Weight: 0.100000 Brand: Price: $ 41.85 |
Intake Manifold Insulator | 1 | $ 41.85 | ||
| 3 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 2 | $ 3.46 | ||
| 4 | 09247-12104 Plug
SKU: 09247-12104 Weight: 0.125000 Brand: Price: $ 2.74 |
Plug | 2 | $ 2.74 | ||
| 5 | 01421-06407 Stud Bolt (NLA)
SKU: 01421-06407 Weight: 0.100000 Brand: Price: $ 2.59 |
Stud Bolt (NLA) | 2 | $ 2.59 | ||
| 6 | 01421-08457 BOLT, STUD
SKU: 01421-08457 Weight: 0.125000 Brand: Price: $ 4.92 |
BOLT, STUD | 1 | $ 4.92 | ||
| 7 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 8 | $ 2.74 | ||
| 8 | 01550-06507 BOLT
SKU: 01550-06507 Weight: 0.060000 Brand: Price: $ 2.95 |
BOLT | 2 | $ 2.95 | ||
| 9 | 01550-08557 BOLT
SKU: 01550-08557 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 1 | $ 3.61 | ||
| 10 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | ||
| 11 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 13 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | Not Shown | |
| 14 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
