Suzuki DF 40 Parts Listings - 2010
S/N 04002F-010001 to 04002F-01XXXX

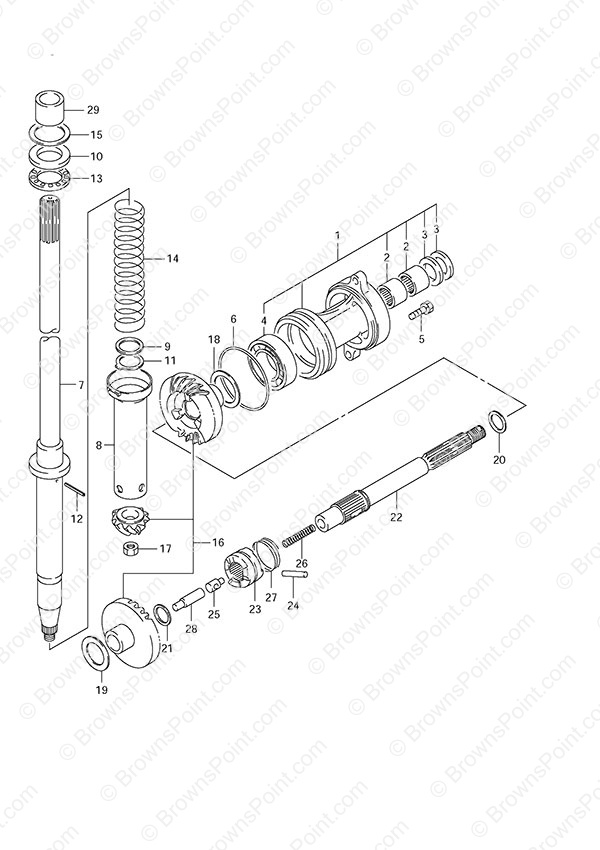

Fig. 22 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 56120-94321-0EP Propeller Shaft Bearing Housing
SKU: 56120-94321-0EP Weight: 1.860000 Brand: Price: $ 203.58 |
Propeller Shaft Bearing Housing | 1 | $ 203.58 | ||
| 2 | 09263-22020 Bearing (22.225x28.575.19.05)
SKU: 09263-22020 Weight: 0.080000 Brand: Price: $ 19.54 |
Bearing (22.225x28.575.19.05) | 1 | $ 19.54 | ||
| 3 | 09289-22007 Oil Seal (21.2x35x5)
SKU: 09289-22007 Weight: 0.060000 Brand: Price: $ 5.22 |
Oil Seal (21.2x35x5) | 2 | $ 5.22 | ||
| 4 | 09262-35070 Bearing (35x62x14)
SKU: 09262-35070 Weight: 0.250000 Brand: Price: $ 47.33 |
Bearing (35x62x14) | 1 | $ 47.33 | ||
| 5 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 6 | 09280-75001 O-Ring
SKU: 09280-75001 Weight: 0.060000 Brand: Price: $ 4.85 |
O-Ring | 1 | $ 4.85 | ||
| 7-1 | 57110-87J10 Drive Shaft (S) (NLA)
SKU: 57110-87J10 Weight: 10.000000 Brand: Price: $ 195.59 |
Drive Shaft (S) (NLA) | 1 | $ 195.59 | w/Transom (S) | |
| 7-2 | 57110-87J00 Drive Shaft (L)
SKU: 57110-87J00 Weight: 3.400000 Brand: Price: $ 414.14 |
Drive Shaft (L) | 1 | $ 414.14 | w/Transom (L) | |
| 8 | 57133-94400 Drive Shaft Spring Collar
SKU: 57133-94400 Weight: 0.100000 Brand: Price: $ 14.68 |
Drive Shaft Spring Collar | 1 | $ 14.68 | ||
| 9 | 09160-24020 Washer (24x33x2.5)
SKU: 09160-24020 Weight: 0.060000 Brand: Price: $ 4.78 |
Washer (24x33x2.5) | 1 | $ 4.78 | ||
| 10 | 09160-26015 Washer (26.2x42x4.0)
SKU: 09160-26015 Weight: 0.060000 Brand: Price: $ 22.84 |
Washer (26.2x42x4.0) | 1 | $ 22.84 | ||
| 11 | 09166-25006 Washer
SKU: 09166-25006 Weight: 0.060000 Brand: Price: $ 3.71 |
Washer | 1 | $ 3.71 | ||
| 12 | 09205-03019 Spring Pin (3x10)
SKU: 09205-03019 Weight: 0.060000 Brand: Price: $ 1.73 |
Spring Pin (3x10) | 1 | $ 1.73 | ||
| 13 | 09263-25062 BT 25x42x5 Bearing
SKU: 09263-25062 Weight: 0.060000 Brand: Price: $ 71.17 |
BT 25x42x5 Bearing | 1 | $ 71.17 | ||
| 14 | 09440-30005 Spring
SKU: 09440-30005 Weight: 0.100000 Brand: Price: $ 5.60 |
Spring | 1 | $ 5.60 | ||
| 15-1 | 09181-30186 Shim (0.50)
SKU: 09181-30186 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.50) | 1 | $ 3.61 | Drive Shaft Adjust | |
| 15-2 | 09181-30187 Shim (0.60)
SKU: 09181-30187 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.60) | 1 | $ 3.52 | ||
| 15-3 | 09181-30188 Shim (0.70)
SKU: 09181-30188 Weight: 0.060000 Brand: Price: $ 3.58 |
Shim (0.70) | 1 | $ 3.58 | ||
| 15-4 | 09181-30190 Shim (0.80)
SKU: 09181-30190 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.80) | 1 | $ 3.61 | ||
| 15-5 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | ||
| 16 | 57300-88810 Pinion & Gear Set
SKU: 57300-88810 Weight: 2.480000 Brand: Price: $ 446.74 |
Pinion & Gear Set | 1 | $ 446.74 | ||
| 17 | 09140-12034 Pinion Nut
SKU: 09140-12034 Weight: 0.060000 Brand: Price: $ 3.02 |
Pinion Nut | 1 | $ 3.02 | ||
| 18-1 | 08221-35455 Shim (0.50)
SKU: 08221-35455 Weight: 0.060000 Brand: Price: $ 3.31 |
Shim (0.50) | 1 | $ 3.31 | Reverse Backup | |
| 18-2 | 09181-35131 Shim (0.60)
SKU: 09181-35131 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.60) | 1 | $ 3.38 | ||
| 18-3 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 1 | $ 3.38 | ||
| 18-4 | 08221-35456 Shim (0.80)
SKU: 08221-35456 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (0.80) | 1 | $ 3.40 | ||
| 18-5 | 09181-35136 Shim (0.90)
SKU: 09181-35136 Weight: 0.060000 Brand: Price: $ 2.49 |
Shim (0.90) | 1 | $ 2.49 | ||
| 18-6 | 08211-35451 Shim (1.00)
SKU: 08211-35451 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (1.00) | 1 | $ 3.40 | ||
| 19-1 | 09181-30186 Shim (0.50)
SKU: 09181-30186 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.50) | 1 | $ 3.61 | Forward Backup | |
| 19-2 | 09181-30187 Shim (0.60)
SKU: 09181-30187 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.60) | 1 | $ 3.52 | ||
| 19-3 | 09181-30188 Shim (0.70)
SKU: 09181-30188 Weight: 0.060000 Brand: Price: $ 3.58 |
Shim (0.70) | 1 | $ 3.58 | ||
| 19-4 | 09181-30190 Shim (0.80)
SKU: 09181-30190 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.80) | 1 | $ 3.61 | ||
| 20-1 | 09160-22018 Washer (1.80)
SKU: 09160-22018 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.80) | 1 | $ 3.89 | Prop Shaft Thrust | |
| 19-5 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | ||
| 20-2 | 09160-22019 Washer (1.90)
SKU: 09160-22019 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.90) | 1 | $ 3.89 | ||
| 20-3 | 09160-22020 Washer (2.00)
SKU: 09160-22020 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.00) | 1 | $ 4.13 | ||
| 20-4 | 09160-22021 Washer (2.10)
SKU: 09160-22021 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.10) | 1 | $ 4.13 | ||
| 20-5 | 09160-22022 Washer (2.20)
SKU: 09160-22022 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.20) | 1 | $ 3.89 | ||
| 20-6 | 09160-22023 Washer (2.30)
SKU: 09160-22023 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.30) | 1 | $ 3.89 | ||
| 21 | 08211-20263 Thrust Washer (2.00)
SKU: 08211-20263 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer (2.00) | 1 | $ 2.45 | ||
| 22 | 57610-94403 Propeller Shaft Assembly
SKU: 57610-94403 Weight: 1.820000 Brand: Price: $ 176.87 |
Propeller Shaft Assembly | 1 | $ 176.87 | ||
| 23 | 57621-87J03 Clutch Dog Shifter
SKU: 57621-87J03 Weight: 0.500000 Brand: Price: $ 73.80 |
Clutch Dog Shifter | 1 | $ 73.80 | ||
| 24 | 09202-05022 Clutch Dog Shifter Pin
SKU: 09202-05022 Weight: 0.060000 Brand: Price: $ 3.47 |
Clutch Dog Shifter Pin | 1 | $ 3.47 | ||
| 25 | 57634-88L00 Push Pin
SKU: 57634-88L00 Weight: 0.060000 Brand: Price: $ 8.51 |
Push Pin | 1 | $ 8.51 | ||
| 26 | 09440-08043 Return Spring
SKU: 09440-08043 Weight: 0.125000 Brand: Price: $ 2.72 |
Return Spring | 1 | $ 2.72 | ||
| 27 | 09440-40002 Clutch Dog Spring
SKU: 09440-40002 Weight: 0.060000 Brand: Price: $ 3.21 |
Clutch Dog Spring | 1 | $ 3.21 | ||
| 28 | 57631-95303 Push Rod
SKU: 57631-95303 Weight: 0.060000 Brand: Price: $ 13.48 |
Push Rod | 1 | $ 13.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
